Voice Coil Linear Motors: The Foundation of High Precision and Responsive Motion Control

In recent years, voice coil linear motors have emerged as a popular solution for achieving high-precision and responsive motion control in a wide range of industries. From robotics and medical devices to aerospace and semiconductor manufacturing, these motors are rapidly gaining traction due to their unique properties and unmatched performance. In this article, we will delve into the fundamental principles, advantages, and applications of voice coil linear motors.

Understanding Voice Coil Linear Motors

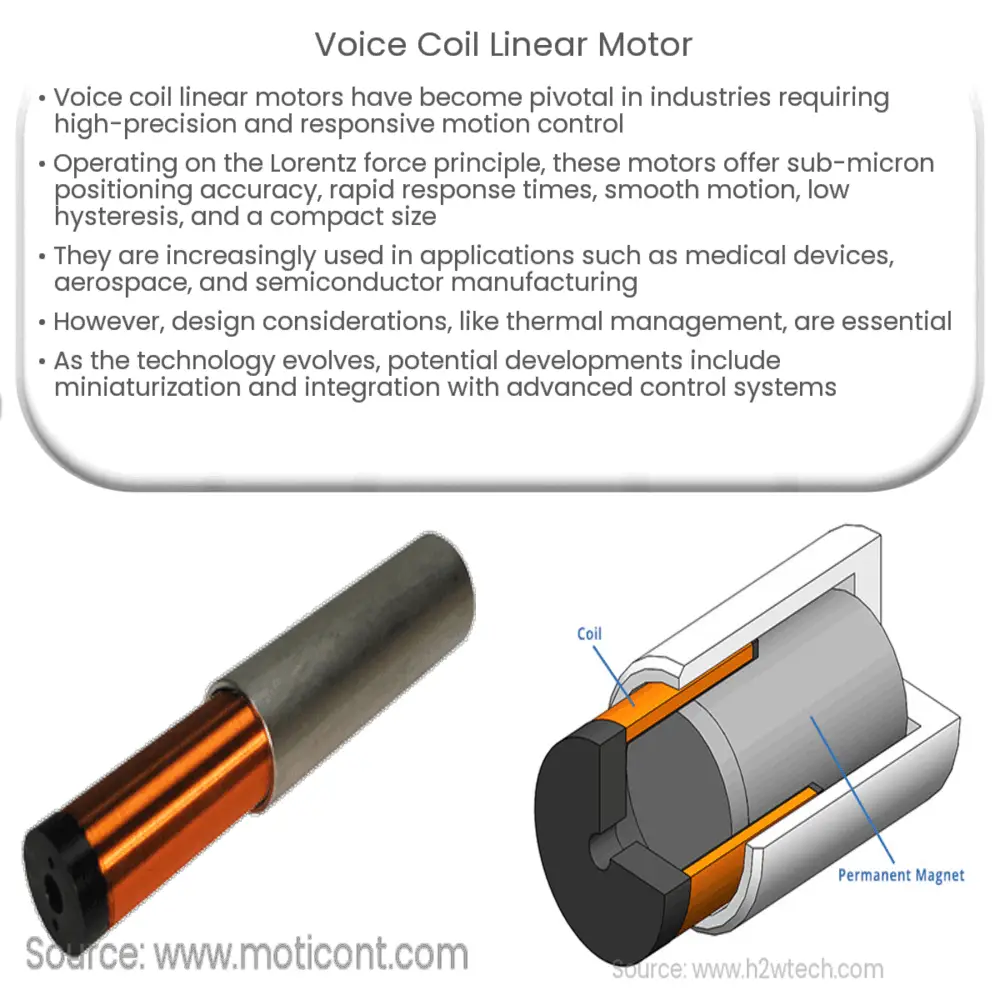

A voice coil linear motor, also known as a voice coil actuator, is a type of direct drive linear motor that operates based on the Lorentz force principle. In its simplest form, it consists of a coil of wire (the voice coil) and a magnetic field generated by a permanent magnet. When an electric current is applied to the coil, it generates a magnetic field that interacts with the field of the permanent magnet, creating a force that moves the coil in a linear direction.

Originally developed for loudspeaker applications, voice coil linear motors have since been adapted for use in various high-precision motion control systems. The basic structure of the motor remains the same, but the design and materials have evolved to accommodate the specific requirements of each application.

Advantages of Voice Coil Linear Motors

Voice coil linear motors offer several key advantages over other types of linear motors, such as linear induction motors and linear stepper motors. Some of the most notable benefits include:

1. High Precision: Voice coil linear motors can achieve sub-micron positioning accuracy, making them ideal for applications that require precise and stable motion control.
2. Fast Response: These motors exhibit rapid response times, typically in the range of a few milliseconds, enabling high-speed motion control and quick changes in direction.
3. Smooth Motion: Unlike stepper motors, which operate in discrete steps, voice coil linear motors generate continuous motion, resulting in smooth and precise movements.
4. Low Hysteresis: Voice coil linear motors have minimal hysteresis (the difference between the input and output positions), allowing for consistent and repeatable motion profiles.
5. Compact Size: The relatively small size and simple design of voice coil linear motors make them easy to integrate into space-constrained applications.

Common Applications of Voice Coil Linear Motors

Due to their high precision, fast response, and smooth motion, voice coil linear motors are used in a wide range of industries and applications. Some examples include:

• Medical Devices: In surgical robots, medical imaging systems, and drug delivery systems, voice coil linear motors provide precise and reliable motion control.
• Aerospace: These motors are used in satellite positioning systems, optical alignment systems, and other aerospace applications that require high-precision motion control.
• Semiconductor Manufacturing: Voice coil linear motors are employed in semiconductor fabrication processes, such as wafer handling and lithography stages, where high-precision and fast response times are critical.

In the second part of this article, we will discuss the design considerations and challenges associated with voice coil linear motors, as well as their future prospects and potential developments.

Design Considerations and Challenges

While voice coil linear motors offer numerous advantages, there are some design considerations and challenges that engineers must address when incorporating these motors into their applications. Key factors to consider include:

1. Thermal Management: Voice coil linear motors can generate significant heat during operation, which can affect performance and reduce the lifespan of the motor. To mitigate this issue, engineers must implement efficient thermal management strategies, such as using heat sinks, cooling systems, or selecting materials with high thermal conductivity.
2. Force and Stroke Length: The force generated by the motor and the stroke length (the maximum distance the coil can travel) must be optimized for the specific application. Engineers must carefully balance these factors to ensure that the motor delivers the required performance without exceeding size, weight, or power constraints.
3. Electromagnetic Compatibility (EMC): Voice coil linear motors generate electromagnetic fields that can interfere with other electronic devices or sensors in the system. Engineers must take EMC into account during the design phase and implement shielding or filtering techniques as necessary.

Future Prospects and Potential Developments

As the demand for high-precision and responsive motion control continues to grow, voice coil linear motors are poised to play an increasingly important role in a variety of industries. Some potential developments and trends to watch for in the coming years include:

• New Materials: Advances in materials science could lead to the development of new materials for voice coil linear motors, offering improved performance, higher efficiency, and greater thermal stability.
• Miniaturization: As applications in fields such as micro-robotics and nanotechnology continue to evolve, there is a growing need for smaller, more precise voice coil linear motors. Continued advancements in motor design and manufacturing techniques could result in even more compact and high-performance motors.
• Integration with Advanced Control Systems: The integration of voice coil linear motors with advanced control systems, such as artificial intelligence (AI) and machine learning algorithms, could enable more sophisticated and adaptive motion control strategies, further enhancing performance and precision.
• Wider Adoption in Emerging Industries: As the technology continues to mature, voice coil linear motors are likely to find new applications in emerging industries, such as virtual reality, augmented reality, and advanced manufacturing, where high-precision motion control is crucial.

Conclusion

Voice coil linear motors have proven to be a powerful solution for high-precision and responsive motion control applications in various industries. Their unique properties, such as sub-micron positioning accuracy, fast response times, and smooth motion, make them well-suited for demanding applications in medical devices, aerospace, and semiconductor manufacturing, among others. As the technology continues to advance and find new applications, voice coil linear motors are set to play a pivotal role in shaping the future of motion control systems.
