Linear Reluctance Motor: A Comprehensive Introduction

Overview

Linear reluctance motors (LRMs) are a type of electric motor that operate on the principles of magnetic reluctance. These motors offer various advantages over traditional electric motors, including high efficiency, low maintenance, and a simple design. In recent years, LRMs have gained popularity in industrial automation and transportation applications due to their unique properties. This article will provide an in-depth look at the workings, advantages, and common applications of linear reluctance motors.

Principle of Operation

The fundamental principle behind the linear reluctance motor is magnetic reluctance, which is the resistance offered by a magnetic circuit to the flow of magnetic flux. This principle can be compared to Ohm’s law in electrical circuits, where the reluctance is analogous to resistance, and the magnetic flux is analogous to the electric current.

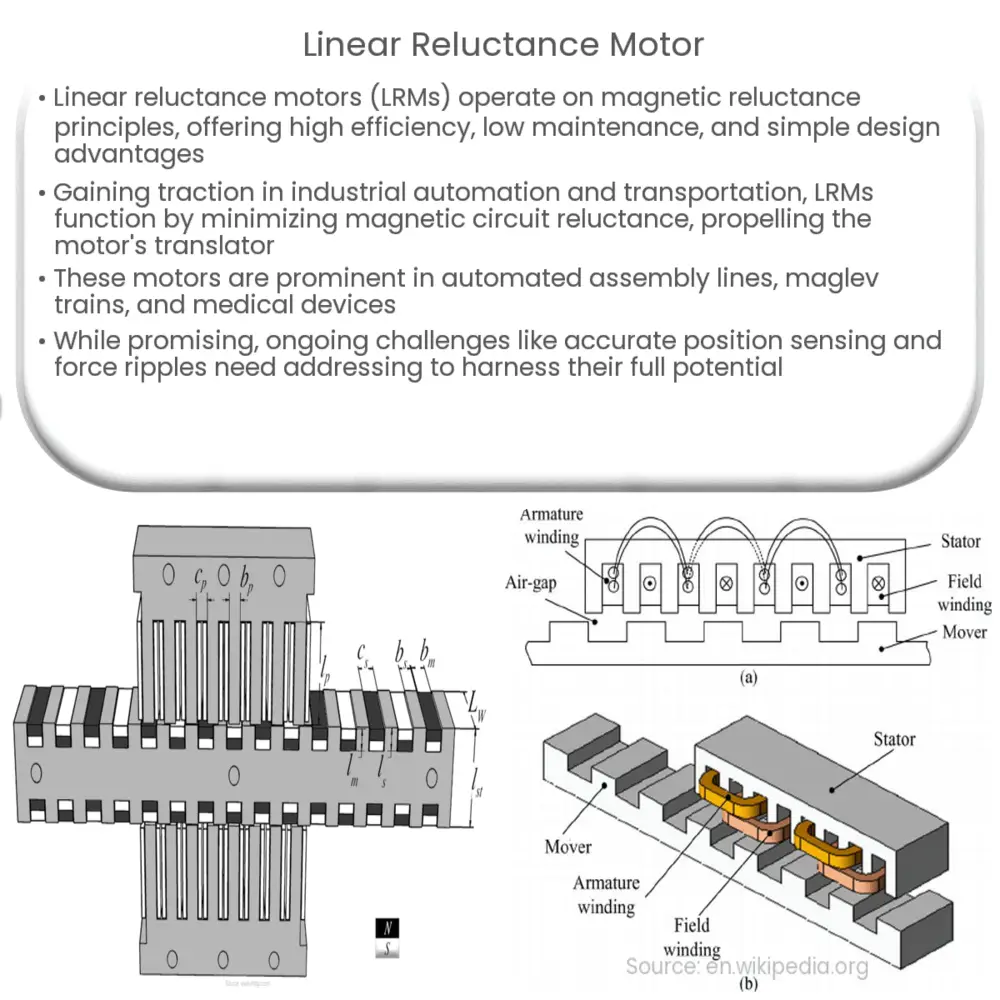

A linear reluctance motor consists of two main components: a stator and a translator. The stator is the stationary part of the motor that contains the windings, while the translator is the moving part of the motor made of ferromagnetic material, such as iron or steel. The stator is typically composed of a series of coils arranged in a linear fashion along the motor’s axis.

When an alternating current is applied to the stator windings, it generates a magnetic field that varies in time and space. This magnetic field interacts with the ferromagnetic translator, inducing a force that propels the translator along the motor’s axis. The force is generated due to the magnetic field’s tendency to minimize the reluctance in the magnetic circuit, which is achieved when the translator aligns with the stator poles.

Advantages of Linear Reluctance Motors

Linear reluctance motors offer several benefits over conventional electric motors, including:

High efficiency: LRMs have minimal energy losses due to the absence of electrical conductors in the translator. This leads to higher efficiency when compared to conventional motors.
Low maintenance: The absence of brushes and commutators in LRMs results in reduced wear and tear, making them less prone to mechanical failures and reducing maintenance requirements.
Simple design: The straightforward construction of LRMs enables easy manufacturing and assembly, reducing production costs.
Dynamic performance: LRMs exhibit excellent acceleration and deceleration capabilities, making them suitable for applications requiring precise motion control.
Scalability: The design of LRMs allows for easy scaling of the motor size and force output, making them suitable for a wide range of applications.

Common Applications

Linear reluctance motors have found use in various industries due to their unique advantages. Some of the most common applications include:

Industrial automation: LRMs are used in automated assembly lines, pick-and-place machines, and robotic arms for precise motion control and high-speed operation.
Transportation: Due to their high efficiency and scalability, LRMs are utilized in maglev trains and linear motor-driven elevators.
Medical equipment: LRMs are employed in medical devices, such as surgical robots and imaging systems, for precise and reliable motion control.

Design Considerations

When designing a linear reluctance motor for a specific application, several factors must be taken into account to ensure optimal performance. These factors include:

Force and acceleration requirements: The motor’s size and the number of stator windings should be chosen based on the desired force output and acceleration capabilities.
Operating speed: The operating speed of the motor is influenced by the frequency of the applied current and the number of stator poles. Careful selection of these parameters is essential for achieving the desired speed range.
Thermal management: Although LRMs exhibit high efficiency, some heat will still be generated during operation. Proper thermal management strategies, such as passive or active cooling systems, should be incorporated into the motor design to ensure reliable operation.
Control system: A suitable control system must be employed to accurately regulate the motor’s position, speed, and force output. Various control techniques, such as vector control or direct torque control, can be utilized for this purpose.

Challenges and Future Developments

Despite their numerous advantages, linear reluctance motors also face some challenges that need to be addressed to further expand their application range:

Position sensing: Accurate position sensing is crucial for the control of LRMs. The development of robust and cost-effective position sensors that can withstand harsh operating environments is an ongoing challenge.
Force ripple: LRMs can exhibit force ripples due to the spatial distribution of the magnetic field. Advanced control techniques and improved motor designs are being explored to minimize this effect and ensure smooth operation.
Material advancements: Research is ongoing to develop new materials with improved magnetic properties, such as high saturation magnetization and low coercivity, to further enhance the performance of LRMs.

Future developments in linear reluctance motor technology will likely focus on overcoming these challenges and improving the overall performance, reliability, and cost-effectiveness of these motors.

Conclusion

Linear reluctance motors offer a promising alternative to traditional electric motors due to their high efficiency, low maintenance, and scalability. They have found applications in various industries, such as industrial automation, transportation, and medical equipment, where their unique advantages have proven to be valuable. By addressing the current challenges and continuing to advance the technology, linear reluctance motors have the potential to become even more prevalent in the future, further revolutionizing the way we design and implement motion control systems.
