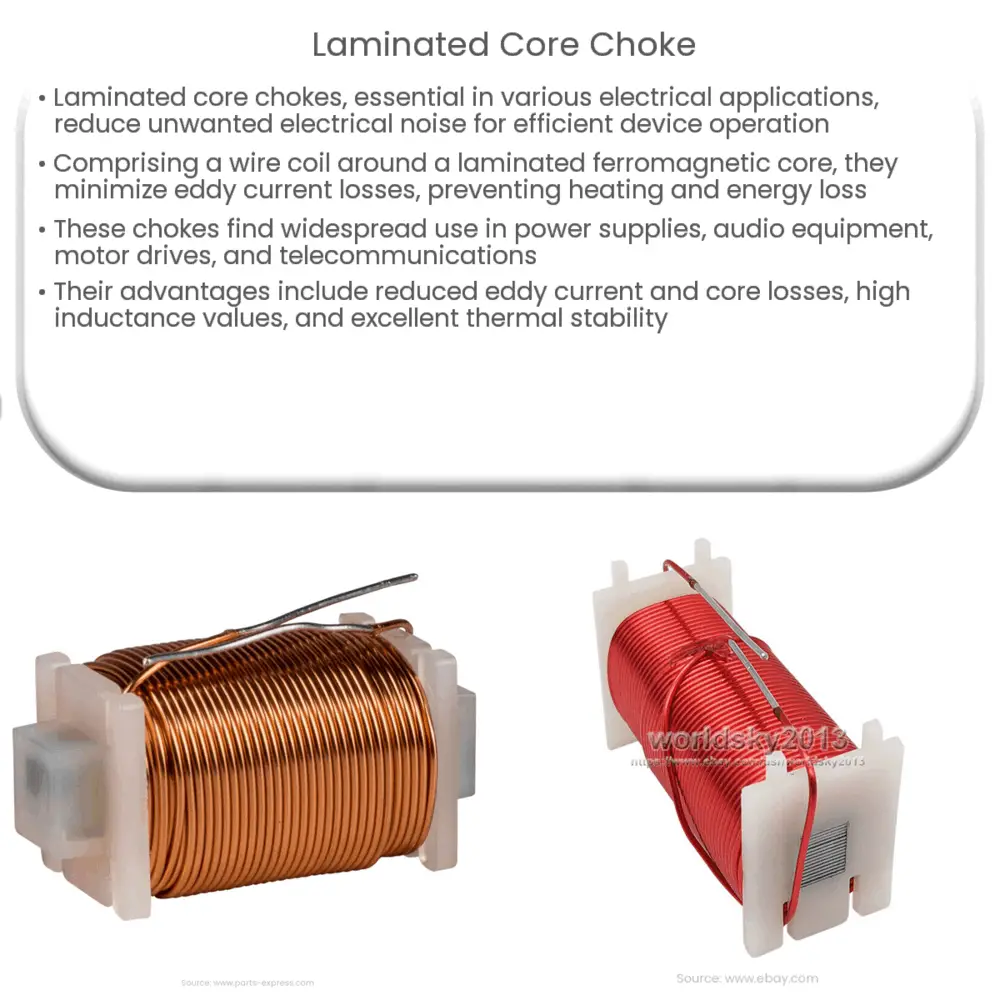

A laminated core choke is an inductor used to reduce electrical noise in electronic devices, featuring a coil wound around a laminated magnetic core.
Laminated Core Choke: An Overview
Introduction
The laminated core choke, also known as a laminated iron core inductor or laminated steel core choke, is an essential component in various electrical and electronic applications. It plays a vital role in reducing or eliminating unwanted electrical noise, ensuring the efficient operation of electronic devices. This article explores the fundamentals of the laminated core choke, its construction, and its applications in various industries.
What is a Laminated Core Choke?
A laminated core choke is a type of inductor that consists of a coil of wire wound around a laminated magnetic core made of thin, insulated sheets of ferromagnetic material, such as silicon steel or iron. These laminations serve to reduce eddy current losses, which can cause unwanted heating, energy loss, and reduced efficiency in the inductor. By minimizing these losses, laminated core chokes can effectively filter out unwanted electrical noise and improve the performance of the devices they are integrated into.
Construction of Laminated Core Chokes
The construction of a laminated core choke consists of three primary components: the laminated core, the wire coil, and the insulation material.
- Laminated Core: The core is made of thin sheets of a ferromagnetic material, such as silicon steel or iron. These sheets are coated with an insulating layer, typically an oxide or varnish, to prevent electrical contact between the layers. The laminations are then stacked and bonded together, forming a magnetic core with a reduced eddy current loss.
- Wire Coil: A wire, usually made of copper or aluminum, is wound around the laminated core to form the inductor coil. The number of turns in the coil and the wire’s thickness will determine the inductor’s inductance value and current-carrying capacity.
- Insulation Material: Insulation is used to electrically isolate the coil from the core and prevent short circuits. This can be in the form of a layer of varnish, enamel, or another insulating material that covers the wire coil or an additional insulating layer between the core and the coil.
Applications of Laminated Core Chokes
Laminated core chokes find applications in various industries due to their ability to reduce electrical noise and improve efficiency. Some common uses include:
- Power Supplies: In switched-mode power supplies (SMPS), laminated core chokes are used to filter out high-frequency noise generated by the switching action, ensuring a stable and clean output voltage.
- Audio Equipment: Laminated core chokes help eliminate electromagnetic interference (EMI) and radio frequency interference (RFI) in audio systems, resulting in better sound quality.
- Motor Drives: In electric motor drives, laminated core chokes reduce harmonic distortion and protect sensitive components from voltage spikes and surges.
- Telecommunication: They play a crucial role in filtering out unwanted signals and noise in telecommunication systems, ensuring clear and reliable communication.
Advantages of Laminated Core Chokes
Laminated core chokes offer several advantages over other types of inductors, making them a popular choice for various applications. These advantages include:
- Reduced Eddy Current Losses: The laminated construction of the core significantly reduces eddy current losses, improving the overall efficiency and performance of the choke.
- High Inductance Values: Laminated core chokes can achieve higher inductance values than air-core chokes, making them suitable for filtering low-frequency noise.
- Lower Core Losses: The use of high-quality ferromagnetic materials in the core results in lower core losses, further enhancing the efficiency of the choke.
- Thermal Stability: Laminated core chokes exhibit good thermal stability, which helps maintain consistent performance even under varying temperature conditions.
Selection Criteria for Laminated Core Chokes
When selecting a laminated core choke for a specific application, several factors must be considered to ensure optimal performance and compatibility with the system. These factors include:
- Inductance Value: Choose a choke with an inductance value that meets the requirements of your application. This will depend on the frequency range of the noise you want to filter out and the desired level of attenuation.
- Current Rating: Ensure that the choke can handle the maximum current that will flow through it without overheating or causing a significant voltage drop.
- DC Resistance: Select a choke with a low DC resistance to minimize power losses and maintain overall system efficiency.
- Physical Dimensions: Consider the size and shape of the choke to ensure it fits within the available space in your device or system.
- Temperature Rating: Choose a choke with a temperature rating that suits the operating conditions of your application, taking into account potential fluctuations in temperature.
Conclusion
Laminated core chokes play a vital role in the efficient operation of electronic devices by reducing or eliminating unwanted electrical noise. Their unique construction, featuring a laminated magnetic core and wire coil, allows them to offer several advantages over other types of inductors, such as reduced eddy current losses and higher inductance values. By understanding the fundamentals of laminated core chokes, their applications, and the factors to consider when selecting one, you can make an informed decision to improve the performance of your electronic systems.
