Understanding Inductive Wattmeters
Inductive wattmeters are powerful instruments used in electrical engineering for the measurement of electrical power in an AC circuit. Their name stems from their basis in inductive circuit principles, providing a reliable and accurate way to gauge electrical power.
Inductive wattmeters generally comprise two coils – the current coil and the pressure coil. Each has distinct roles within the wattmeter’s functioning and together, they enable the precise calculation of power. Understanding the functionality of each coil is key to appreciating how an inductive wattmeter operates.
Component Overview: Current Coil
- The current coil (also referred to as the ‘series’ coil) is connected in series with the load. It carries the load current from the circuit. The flow of current through this coil generates a magnetic field proportional to the current.
- Its design typically involves a low resistance wire to minimize power losses. These losses could otherwise interfere with accurate readings.
Component Overview: Pressure Coil
- The pressure coil, also known as the ‘voltage’ coil, is connected in parallel with the load. It is responsible for carrying the circuit’s current proportionate to the voltage across the load.
- This coil is designed for high resistance, minimizing current flow and preventing overheating while allowing voltage readings.

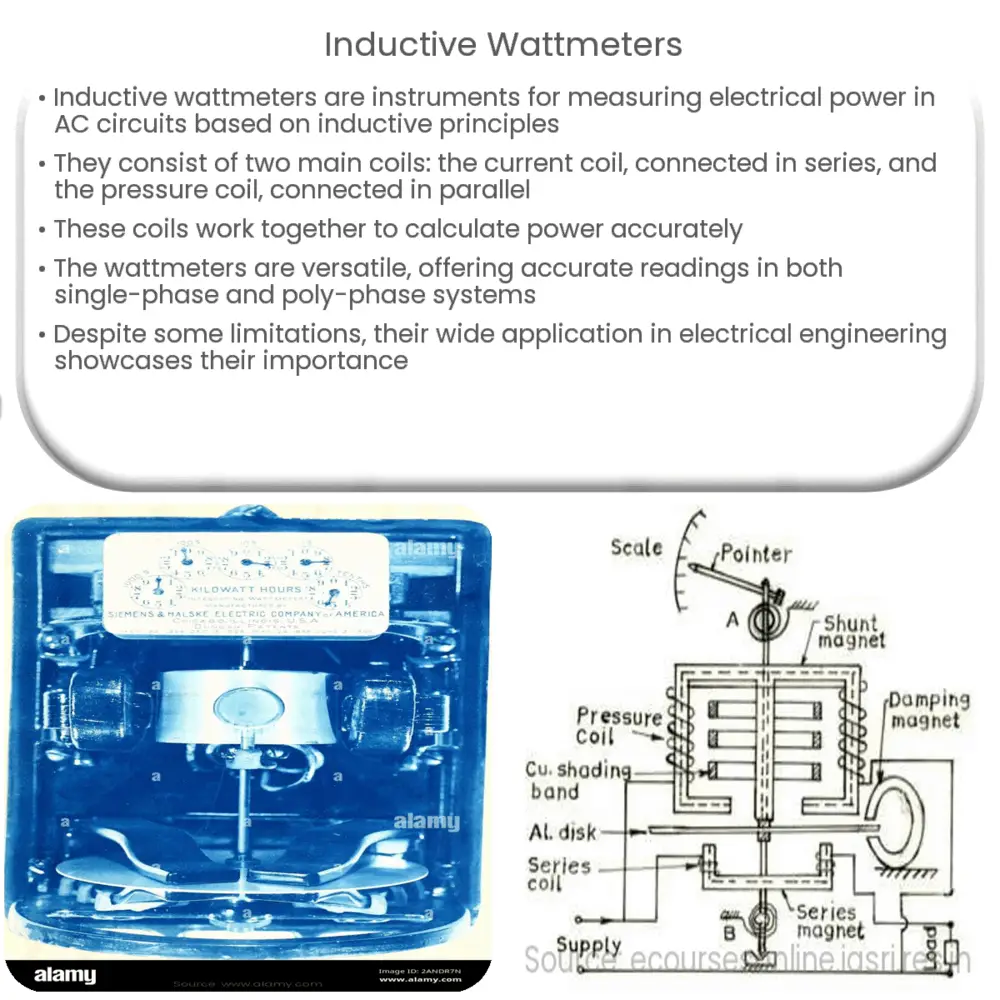

Working Principle of Inductive Wattmeters
The working principle of inductive wattmeters revolves around the interaction between the magnetic fields produced by the current and pressure coils. The pressure coil is usually given a phase shift due to its high resistance and inductance. Therefore, when current passes through both coils, two magnetic fields are generated with a phase difference. This phase difference allows the wattmeter to derive the power factor and, ultimately, the power consumed by the load.
The deflecting torque is produced due to the interaction of these two fields. The meter’s scale is calibrated in terms of watts, which provides direct readings of power. This methodology of measurement makes inductive wattmeters ideal for power measurement in single-phase and poly-phase systems, where the power factor is not always unity.
Advantages of Inductive Wattmeters
Inductive wattmeters present several advantages that make them preferred instruments in power measurement. Let’s delve into some of these benefits:
- Accuracy: They provide accurate power measurements across a wide range of frequencies, making them suitable for various applications.
- Versatility: These wattmeters can measure power in both single-phase and poly-phase systems.
- Direct Reading: Inductive wattmeters are designed to give direct power readings, eliminating the need for complex computations.
Limitations of Inductive Wattmeters
Despite their many advantages, it’s important to understand that inductive wattmeters also have some limitations:
- Their performance may be affected by external magnetic fields. Shielding is often required to ensure accuracy.
- The pressure coil can be prone to overheating when measuring large amounts of power, which could lead to inaccurate readings.
- These meters are generally more expensive and complex compared to simpler power measurement instruments.
Applications of Inductive Wattmeters
Given their reliability and precision, inductive wattmeters find a range of applications in the field of electrical engineering:
- They are extensively used in power stations and substations for power measurement.
- These wattmeters are utilized in research and industrial applications where accurate power measurements are crucial.
- They are also used in educational settings for the demonstration and understanding of power measurement techniques.
Conclusion
In conclusion, inductive wattmeters are an integral part of power measurement in electrical engineering. Their ability to provide accurate power readings across a wide range of frequencies and in both single-phase and poly-phase systems makes them a valuable asset in various scenarios. Despite some limitations, such as susceptibility to external magnetic fields and potential overheating, their advantages far outweigh these drawbacks. With applications spanning from power stations to educational institutions, the role of inductive wattmeters in power measurement is undeniable and vital.
