How is voltage measured?

Voltage is measured using a voltmeter, which is connected to two points in a circuit to determine the electric potential difference between them.

How is Voltage Measured?

Voltage, also known as electric potential difference, is a measure of the potential energy difference between two points in an electric circuit. It is a crucial parameter in electrical systems, as it determines the flow of electric current and the performance of electrical devices. In this article, we will discuss the methods and instruments used to measure voltage.

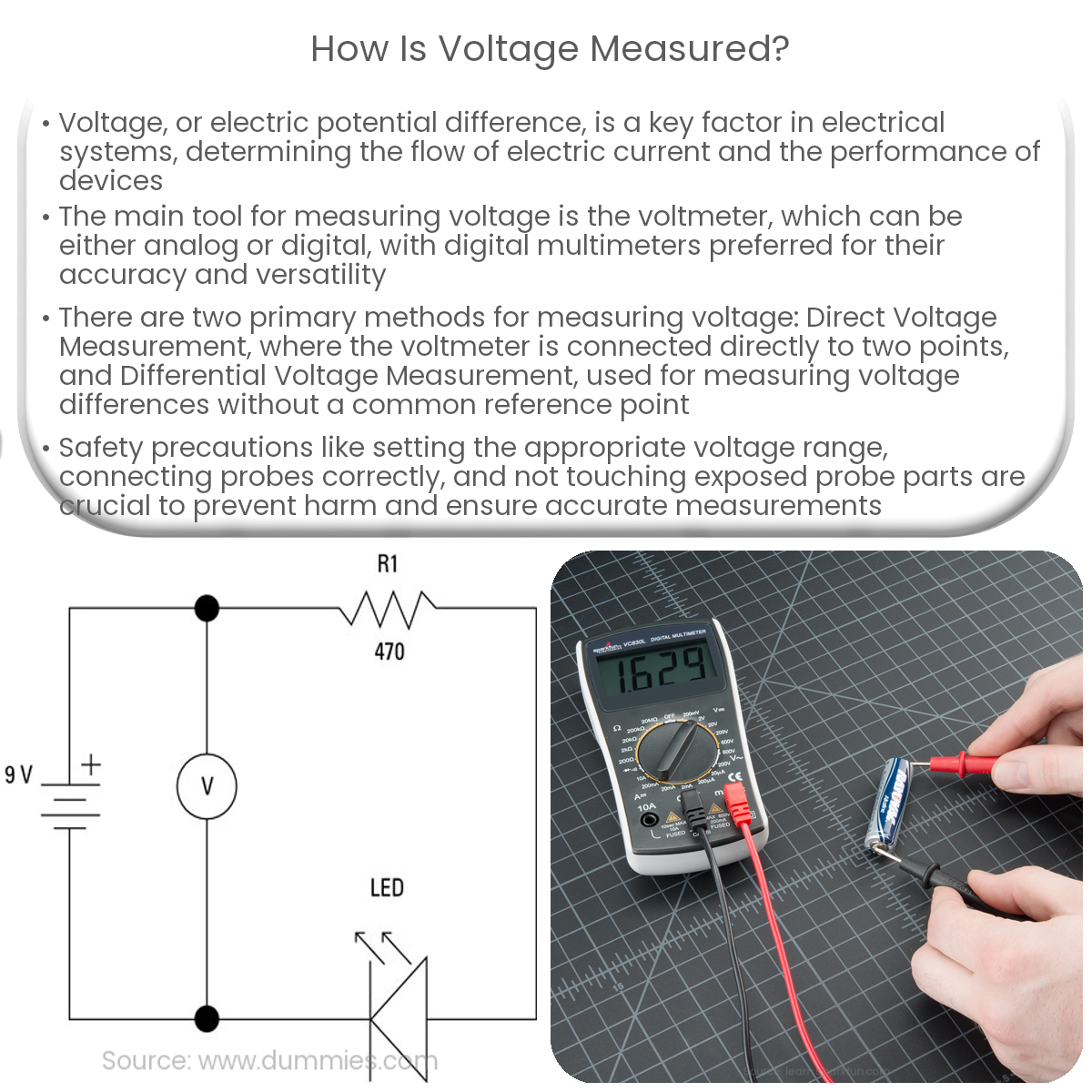

Voltmeter

The most common instrument for measuring voltage is the voltmeter. A voltmeter is an electronic device designed to measure the potential difference between two points in a circuit. It has two probes, a positive (red) and a negative (black) one, which are connected to the points of interest. Voltmeters can be either analog or digital, with digital multimeters (DMMs) being the most popular choice today due to their accuracy, convenience, and versatility.

Measurement Techniques

There are two primary methods for measuring voltage using a voltmeter:

Direct Voltage Measurement: In this method, the voltmeter is connected directly across the two points where the voltage is to be measured. This is the most straightforward and widely used method for measuring voltage.

Differential Voltage Measurement: This method involves measuring the voltage difference between two points that are not connected to a common reference point. Differential voltage measurements are essential for circuits with multiple voltage sources or when measuring small voltage differences in the presence of a larger common-mode voltage.

Precautions and Safety

When measuring voltage, it is essential to follow certain precautions and safety guidelines to avoid damaging the instrument or causing harm to the user:

Ensure the voltmeter is set to the appropriate voltage range before connecting it to the circuit. If unsure, start with the highest range and work downwards.

Connect the negative (black) probe to the reference point (usually ground) and the positive (red) probe to the point of interest.

Do not touch the exposed metal parts of the probes while taking measurements, as it can result in electric shock.

Always follow the manufacturer’s guidelines and recommendations for using and maintaining the voltmeter.

In conclusion, voltage is a critical parameter in electrical systems, and measuring it accurately is essential for understanding the performance and behavior of electrical circuits. Voltmeters are the primary instruments used to measure voltage, and following the proper techniques and safety precautions ensures reliable and accurate measurements.
