Harmonic Magnetic Gear: A Revolution in Power Transmission

Introduction

The need for efficient and reliable power transmission systems has never been greater, as modern technology demands compact, lightweight, and energy-efficient solutions. One promising innovation in this field is the harmonic magnetic gear (HMG), a breakthrough technology that harnesses the power of magnetic fields to transmit torque and motion with unprecedented efficiency and precision. In this article, we will delve into the fundamental principles of HMGs, examine their advantages over conventional mechanical gears, and explore their potential applications in various industries.

Principles of Harmonic Magnetic Gearing

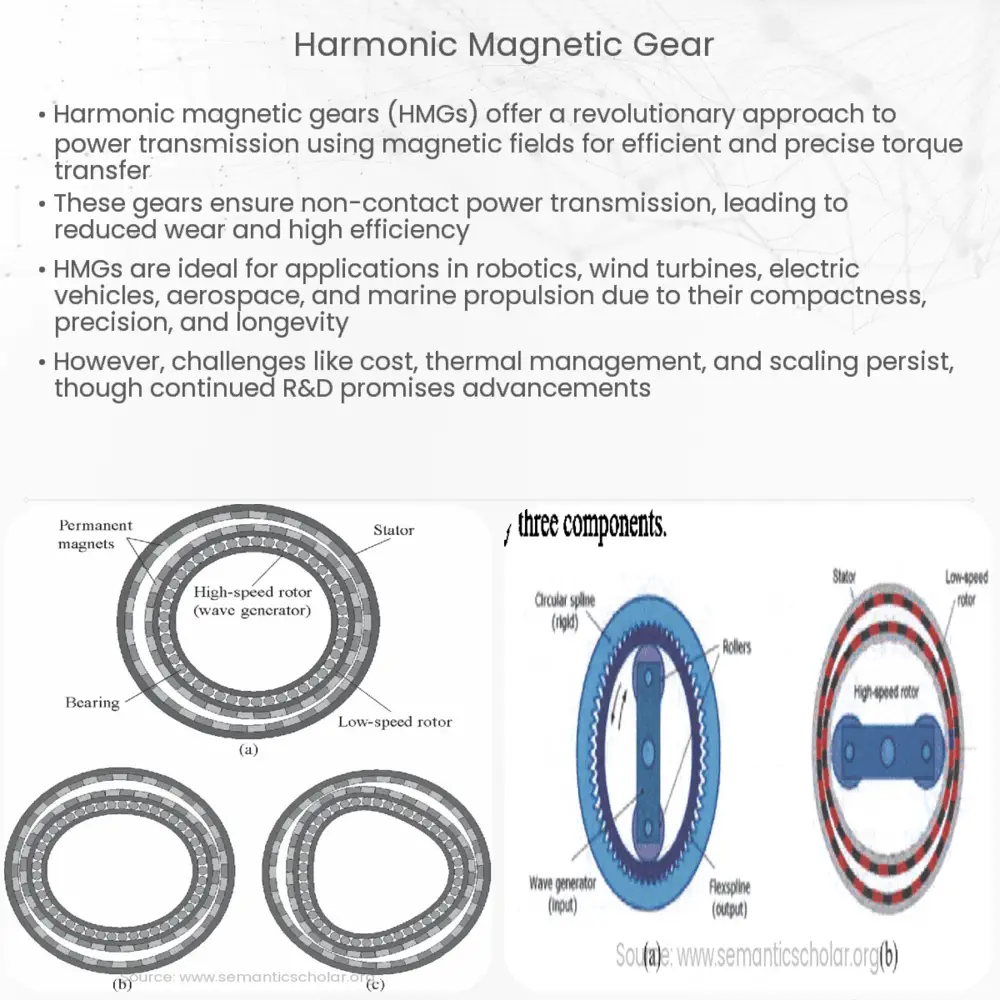

Harmonic magnetic gears operate on the principles of magnetic field interactions and harmonic modulation. The basic components of an HMG system include three concentric rings: an inner rotor with permanent magnets, an outer rotor with magnets arranged in a harmonic pattern, and an intermediate, magnetically permeable stator known as a pole piece or modulation ring. The modulation ring is designed with specific tooth profiles that cause variations in the magnetic fields created by the inner and outer rotors, allowing for a non-contact torque transmission between them.

As the inner rotor spins, its magnetic field interacts with the modulation ring, which in turn modulates the magnetic field to create a new, harmonic pattern. This pattern is then picked up by the outer rotor, causing it to rotate at a different speed relative to the inner rotor. The gear ratio between the rotors can be precisely controlled by adjusting the number of magnetic poles on each rotor and the geometry of the modulation ring.

Advantages of Harmonic Magnetic Gears

The unique design of harmonic magnetic gears offers several key advantages over traditional mechanical gears, such as:

• Non-contact power transmission: Since torque is transmitted through magnetic fields rather than physical contact, HMGs eliminate mechanical wear and tear, significantly reducing maintenance requirements and extending the service life of the system.
• High efficiency: The absence of friction between components in an HMG leads to minimal energy loss, resulting in a highly efficient power transmission. This feature is especially advantageous for applications where energy conservation is crucial.
• Compact and lightweight design: The reduced number of components and lack of lubrication systems in HMGs lead to a smaller, more lightweight design, making them ideal for applications where space constraints are a concern.
• High precision: The precise control of gear ratios achievable with HMGs enables accurate motion control and synchronization, which is essential for many robotics, automation, and aerospace applications.

Potential Applications of Harmonic Magnetic Gears

Given their unique benefits, harmonic magnetic gears have the potential to revolutionize various industries and applications, such as:

• Robotics: HMGs offer precise motion control, making them suitable for robotic arms, manipulators, and other robotic systems where accuracy is critical.
• Wind turbines: The high efficiency and low maintenance requirements of HMGs make them an attractive option for wind turbine powertrains, contributing to the overall sustainability of renewable energy sources.
• Electric vehicles: The compact design and high efficiency of HMGs can lead to lighter and more energy-efficient electric vehicle powertrains, helping to extend driving range and reduce the environmental impact of transportation.
• Aerospace: The lightweight and high precision of HMGs make them ideal for satellite positioning systems and other aerospace applications, where weight reduction and accuracy are paramount.
• Marine propulsion: HMGs can be used in electric and hybrid marine propulsion systems, offering increased efficiency and reduced maintenance, thus contributing to cleaner and more sustainable maritime transportation.

Challenges and Future Developments

Despite the promising potential of harmonic magnetic gears, there are still challenges to overcome before they can be widely adopted. Some of these challenges include:

• Cost: The production of high-quality permanent magnets and complex modulation rings can be expensive, making HMGs less competitive than traditional gear systems in terms of cost.
• Thermal management: The heat generated by the magnets and the modulation ring needs to be managed efficiently, as it can affect the performance and reliability of the system.
• Scaling: While HMGs have been proven effective in small-scale applications, scaling the technology to larger systems remains a challenge that requires further research and development.

Despite these challenges, ongoing research and development efforts are likely to improve the performance, reliability, and affordability of harmonic magnetic gears. As the technology matures, we can expect HMGs to become an increasingly attractive solution for a wide range of power transmission applications, revolutionizing industries and contributing to a more sustainable future.

Conclusion

Harmonic magnetic gears represent a groundbreaking innovation in power transmission technology, offering numerous advantages over conventional mechanical gears, including non-contact torque transmission, high efficiency, compact design, and high precision. As research and development continue to advance the technology, we can expect HMGs to play an increasingly significant role in industries such as robotics, renewable energy, electric vehicles, aerospace, and marine propulsion, ultimately contributing to a more sustainable and energy-efficient future.
