Understanding Coaxial Magnetic Gears: A Revolution in Power Transmission

Introduction

Coaxial magnetic gears (CMG) have been gaining popularity in recent years as a reliable, efficient, and low-maintenance alternative to traditional mechanical gears for power transmission applications. The cutting-edge technology relies on the interaction of magnetic fields, enabling torque transfer without direct physical contact between the gears. This results in reduced wear and tear, noise, and vibration, making it an attractive choice for a wide range of industries. In this article, we will explore the concept of coaxial magnetic gears, their advantages, and their applications in various sectors.

Working Principle of Coaxial Magnetic Gears

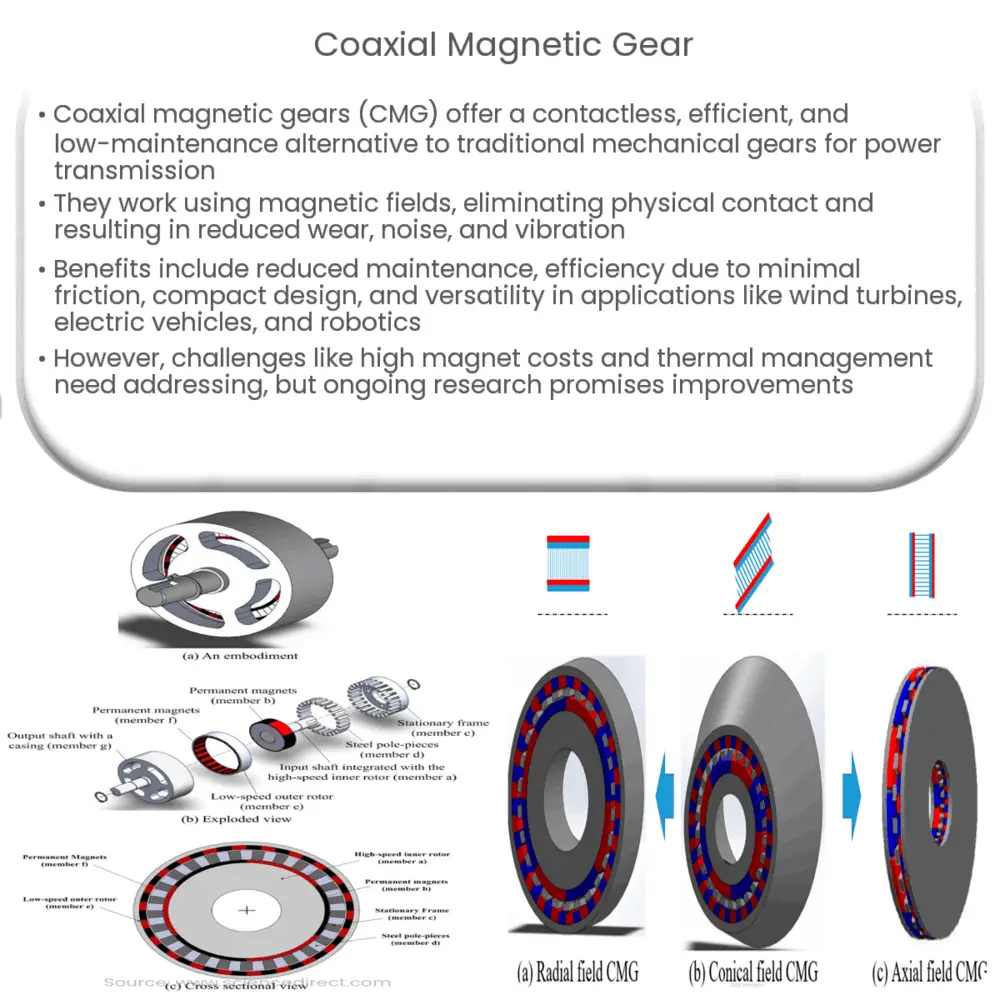

Coaxial magnetic gears consist of three primary components: an inner rotor, an outer rotor, and a modulating ring. The inner and outer rotors are equipped with permanent magnets, while the modulating ring is composed of ferromagnetic materials, such as iron or steel. These components are coaxially aligned and do not come into direct contact with one another, as they are separated by an air gap.

When the input shaft rotates, the inner rotor’s magnetic field induces a magnetic field in the modulating ring. This induced field then interacts with the outer rotor’s magnetic field, causing it to rotate. The torque is transferred from the input shaft (inner rotor) to the output shaft (outer rotor) through the magnetic fields, eliminating the need for physical contact between the components.

The gear ratio of a CMG can be adjusted by changing the number of magnetic poles on the inner and outer rotors. By doing so, the system can accommodate various power transmission requirements, making it highly versatile and adaptable for different applications.

Advantages of Coaxial Magnetic Gears

There are several benefits to using coaxial magnetic gears over conventional mechanical gears, including:

• Reduced wear and maintenance: Since the components in a CMG do not come into direct contact, there is minimal wear and tear, resulting in a longer operational lifespan and reduced maintenance costs.
• Lower noise and vibration: The absence of physical contact between components also leads to a significant reduction in noise and vibration, which can be crucial for applications where noise reduction is a priority.
• High efficiency: CMGs have minimal power loss due to friction, making them highly efficient at transmitting torque. This can result in energy savings and improved overall system performance.
• Compact design: Coaxial magnetic gears can be designed to be compact and lightweight, making them suitable for applications with limited space availability or weight restrictions.

Applications of Coaxial Magnetic Gears

Coaxial magnetic gears have a wide range of potential applications across various industries, some of which include:

• Wind turbines: CMGs can be employed in wind turbines to increase efficiency and reduce noise, while minimizing maintenance requirements due to the absence of mechanical contact between components.
• Electric vehicles: The compact and lightweight design of CMGs makes them well-suited for electric vehicle powertrains, where space and weight constraints are crucial. Additionally, the reduced noise and vibration contribute to a more comfortable driving experience.
• Industrial machinery: CMGs can be integrated into a variety of industrial machines, such as pumps, compressors, and conveyors, where their high efficiency and low maintenance requirements can result in lower operational costs and improved performance.
• Marine propulsion: The reduced noise and vibration of CMGs make them an attractive choice for marine propulsion systems, where noise reduction is particularly important for underwater vehicles and vessels operating in environmentally sensitive areas.
• Robotics: The high precision and low backlash of coaxial magnetic gears make them ideal for robotic applications, where precise control and smooth motion are essential.

Challenges and Future Prospects

Despite their numerous advantages, coaxial magnetic gears also face certain challenges that need to be addressed. One of the main challenges is the relatively high cost of permanent magnets, which can drive up the overall cost of the CMG system. Research is ongoing to develop cost-effective alternatives or to reduce the reliance on rare-earth magnets without compromising performance.

Another challenge is the thermal management of CMGs, as high temperatures can affect the performance and efficiency of the magnetic materials. Advances in materials science and cooling technologies are expected to help mitigate this issue in the future.

As the demand for energy-efficient, low-maintenance, and noise-reducing technologies continues to grow, it is likely that the adoption of coaxial magnetic gears will increase across various industries. Further research and development in this field will likely lead to improved performance, lower costs, and new applications, solidifying the role of CMGs in the future of power transmission.

Conclusion

Coaxial magnetic gears represent a significant advancement in power transmission technology, offering numerous benefits over traditional mechanical gears. Their contactless nature allows for reduced wear and maintenance, lower noise and vibration, and high efficiency, making them suitable for a wide range of applications. Although challenges related to cost and thermal management remain, ongoing research and development efforts are expected to overcome these hurdles, paving the way for increased adoption of CMGs across various industries in the coming years.
