Magnetic Gears and Magnetic Couplings: The Future of Power Transmission

Introduction

Magnetic gears and magnetic couplings have been attracting increased attention in recent years due to their potential to revolutionize the world of power transmission. These innovative technologies offer numerous benefits, including improved efficiency, reduced maintenance requirements, and enhanced safety. In this two-part article, we will explore the principles behind magnetic gears and magnetic couplings, as well as their potential applications and benefits.

Understanding Magnetic Gears

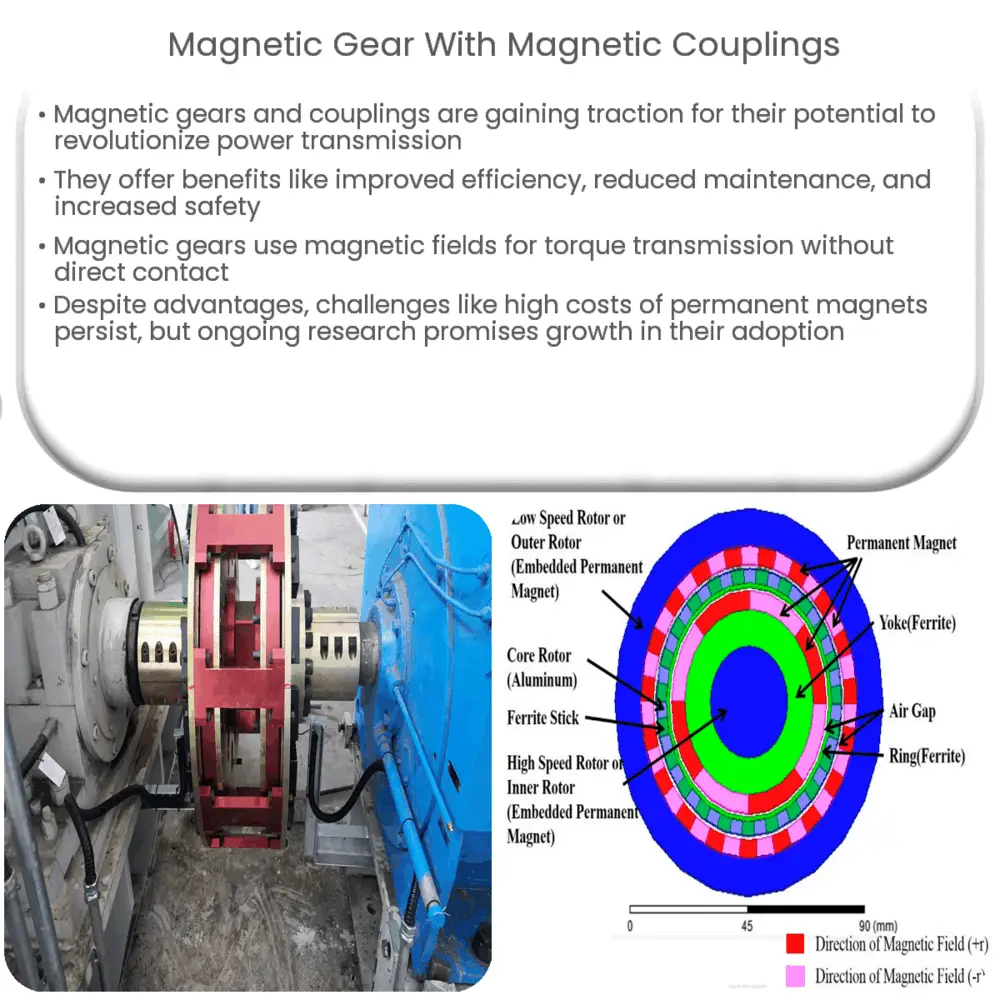

Magnetic gears are a type of non-contact gear system that utilize magnetic fields to transmit torque between an input and output shaft. This is achieved through the interaction of permanent magnets on the input and output shafts, as well as a ferromagnetic material that modulates the magnetic fields.

There are two primary types of magnetic gears: coaxial magnetic gears and parallel magnetic gears. Coaxial magnetic gears consist of an inner and outer rotor, with the inner rotor containing an even number of permanent magnets and the outer rotor containing an odd number of permanent magnets. Parallel magnetic gears, on the other hand, consist of two parallel rotors, each containing a series of permanent magnets, with a ferromagnetic material positioned between them to facilitate torque transmission.

These gear systems offer several advantages over traditional mechanical gears, such as reduced wear and tear, lower maintenance costs, and the elimination of the need for lubrication. Additionally, magnetic gears can operate at very high speeds and are capable of transmitting torque with minimal noise and vibration.

Understanding Magnetic Couplings

Magnetic couplings, like magnetic gears, use magnetic fields to transmit torque between two shafts without direct mechanical contact. They consist of two sets of permanent magnets mounted on the input and output shafts, as well as a non-magnetic spacer between them to prevent direct contact. As the input shaft rotates, its magnetic field causes the output shaft to rotate in synchronization, effectively transmitting torque between the two shafts.

Magnetic couplings offer several benefits over traditional mechanical couplings, including reduced maintenance requirements, increased efficiency, and enhanced safety. Because there is no direct contact between the input and output shafts, magnetic couplings eliminate the need for lubrication and reduce the potential for wear and tear. Additionally, magnetic couplings can transmit torque across barriers, such as walls or containment vessels, making them ideal for applications in hazardous or corrosive environments.

Applications and Benefits of Magnetic Gears and Couplings

Both magnetic gears and magnetic couplings have a wide range of potential applications in industries such as aerospace, automotive, marine, and renewable energy. Some of the key benefits these technologies offer include:

• Increased efficiency: By eliminating mechanical losses associated with friction and wear, magnetic gears and couplings can significantly improve overall system efficiency. This can lead to reduced energy consumption and lower operational costs.
• Reduced maintenance: With no direct contact between components, magnetic gears and couplings require less maintenance than their mechanical counterparts. This can result in longer service life, reduced downtime, and lower maintenance costs.
• Enhanced safety: Magnetic couplings can be used to transmit torque across barriers, effectively isolating hazardous or corrosive materials from the surrounding environment. This can improve safety and reduce the risk of accidents and contamination.
• Quiet operation: Magnetic gears and couplings operate with minimal noise and vibration, making them well-suited for applications where noise reduction is a priority, such as in residential or office environments.
• High-speed capabilities: Magnetic gears can operate at very high speeds, enabling them to be used in applications where traditional mechanical gears might be limited by their speed capabilities.

Challenges and Future Outlook

Despite their numerous advantages, there are still some challenges associated with the widespread adoption of magnetic gears and couplings. One of the primary challenges is the relatively high cost of permanent magnets, which can be a barrier to entry for some applications. Additionally, further research and development is needed to optimize the design and manufacturing processes for magnetic gears and couplings in order to fully realize their potential benefits.

Nonetheless, ongoing advancements in material science and engineering are expected to help address these challenges and drive the adoption of magnetic gears and couplings in a wide range of industries. As the demand for more efficient, reliable, and environmentally-friendly power transmission solutions continues to grow, magnetic gears and couplings will undoubtedly play an increasingly important role in shaping the future of power transmission technology.

Conclusion

Magnetic gears and magnetic couplings represent a promising alternative to traditional mechanical power transmission systems, offering numerous benefits such as improved efficiency, reduced maintenance requirements, and enhanced safety. As research and development efforts continue to advance these technologies, it is expected that their adoption will expand across various industries, revolutionizing the way we transmit power and ushering in a new era of efficient, reliable, and environmentally-friendly power transmission solutions.
