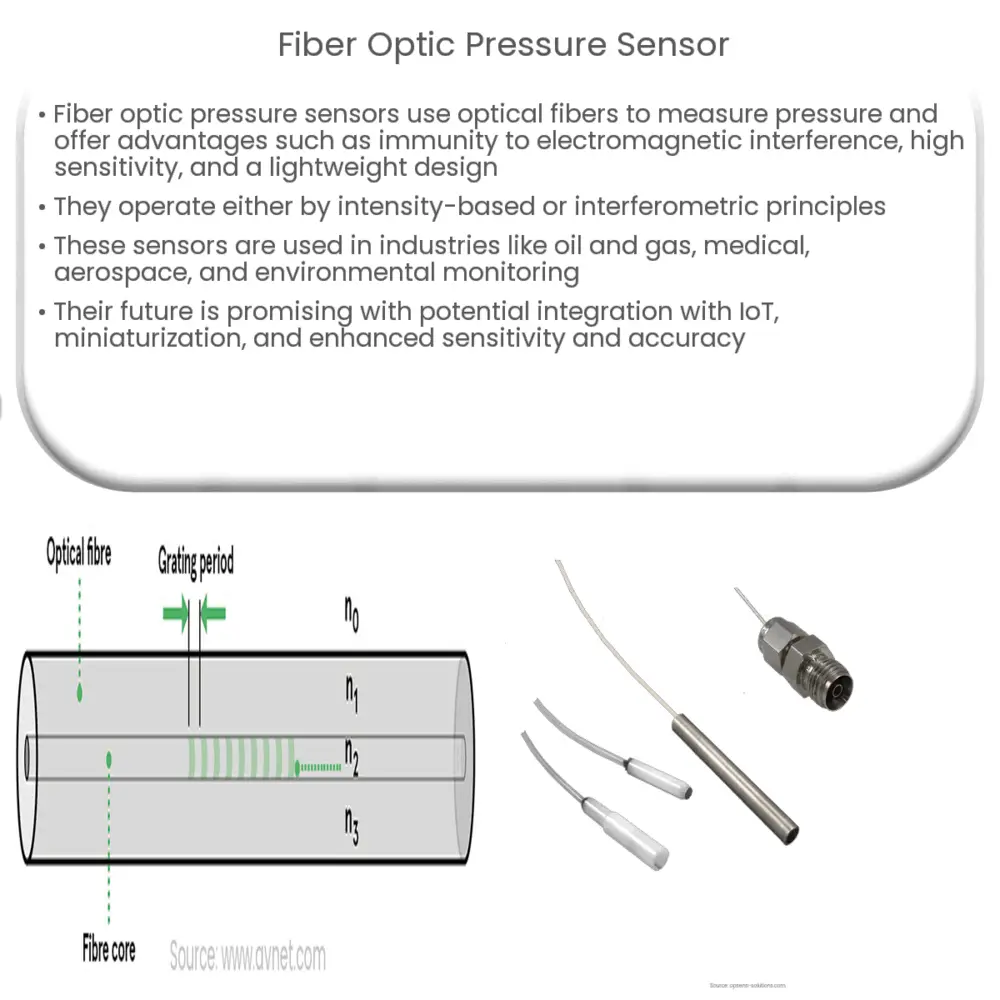

Fiber Optic Pressure Sensors: A Comprehensive Guide
Introduction
Fiber optic pressure sensors are advanced devices that use optical fibers to measure pressure in various applications. These sensors are gaining popularity due to their numerous advantages, such as immunity to electromagnetic interference, lightweight design, and high sensitivity. In this article, we will explore the working principles, advantages, applications, and future prospects of fiber optic pressure sensors.
Working Principle of Fiber Optic Pressure Sensors
Fiber optic pressure sensors operate based on the principle of light modulation in optical fibers. When pressure is applied to the sensing element, it changes the properties of the fiber, such as the refractive index or the intensity of the light. This change can be detected and quantified, providing a pressure measurement. There are two main types of fiber optic pressure sensors: intensity-based and interferometric sensors.
Intensity-Based Sensors
Intensity-based fiber optic pressure sensors rely on changes in the intensity of the light transmitted through the fiber. The sensing element typically consists of a pressure-sensitive diaphragm that alters the light’s intensity when pressure is applied. The light intensity change is then converted into an electrical signal, which is proportional to the applied pressure.
Interferometric Sensors
Interferometric fiber optic pressure sensors, on the other hand, utilize the interference patterns formed when light waves interact with each other. These sensors use a sensing element, such as a Fabry-Perot interferometer, which consists of two parallel reflecting surfaces. When pressure is applied, the gap between the surfaces changes, leading to a shift in the interference pattern. This shift can be measured and translated into a pressure value.
Advantages of Fiber Optic Pressure Sensors
Fiber optic pressure sensors offer several advantages over traditional pressure sensing technologies, such as:
- Immunity to Electromagnetic Interference (EMI): Optical fibers are immune to electromagnetic interference, making them suitable for use in environments with high levels of electrical noise, such as power plants and aviation.
- High Sensitivity and Accuracy: Due to the nature of light modulation, fiber optic pressure sensors can offer high sensitivity and accuracy, allowing for precise pressure measurements.
- Lightweight and Compact: Fiber optic pressure sensors are lighter and more compact than traditional sensors, making them ideal for applications where space and weight are critical factors.
- Long Transmission Distances: Optical fibers can transmit signals over long distances with minimal loss, allowing for remote pressure monitoring in challenging environments.
Applications of Fiber Optic Pressure Sensors
Fiber optic pressure sensors find applications in various industries, including:
- Oil and Gas: In the oil and gas industry, fiber optic pressure sensors are used for downhole pressure monitoring, pipeline leak detection, and reservoir management.
- Medical: Fiber optic pressure sensors play a crucial role in medical applications, such as intraocular pressure monitoring, intracranial pressure monitoring, and blood pressure monitoring.
- Aerospace: These sensors are used for structural health monitoring, cabin pressure control, and engine health monitoring in the aerospace industry.
- Automotive: Fiber optic pressure sensors are employed in various automotive applications, such as tire pressure monitoring, fuel level sensing, and engine performance monitoring.
- Environmental Monitoring: Fiber optic pressure sensors are used to monitor pressure changes in the environment, including water pressure in dams and oceanic pressure for tsunami detection.
Future Prospects of Fiber Optic Pressure Sensors
As the demand for advanced sensing technologies grows, the future prospects of fiber optic pressure sensors look promising. Some potential areas of development include:
- Integration with the Internet of Things (IoT): Fiber optic pressure sensors can be integrated with IoT systems, enabling real-time pressure monitoring and data analysis across various applications and industries.
- Development of Miniaturized Sensors: Continued advancements in material science and manufacturing techniques will enable the development of even smaller and more lightweight fiber optic pressure sensors, opening up new application possibilities.
- Improved Sensitivity and Accuracy: Future research and development efforts will likely focus on improving the sensitivity and accuracy of fiber optic pressure sensors, making them suitable for even more precise pressure measurement applications.
Conclusion
Fiber optic pressure sensors offer several advantages over traditional sensing technologies, such as immunity to electromagnetic interference, high sensitivity, and lightweight design. Their applications span across various industries, including oil and gas, medical, aerospace, automotive, and environmental monitoring. As technology continues to advance, the future prospects of fiber optic pressure sensors look bright, with potential improvements in sensitivity, accuracy, and miniaturization, as well as integration with IoT systems. As a result, fiber optic pressure sensors are poised to play an increasingly important role in our increasingly connected and data-driven world.
