Amorphous core choke

Amorphous core chokes suppress high-frequency noise in electronics, offering improved energy efficiency, compact design, and superior performance.

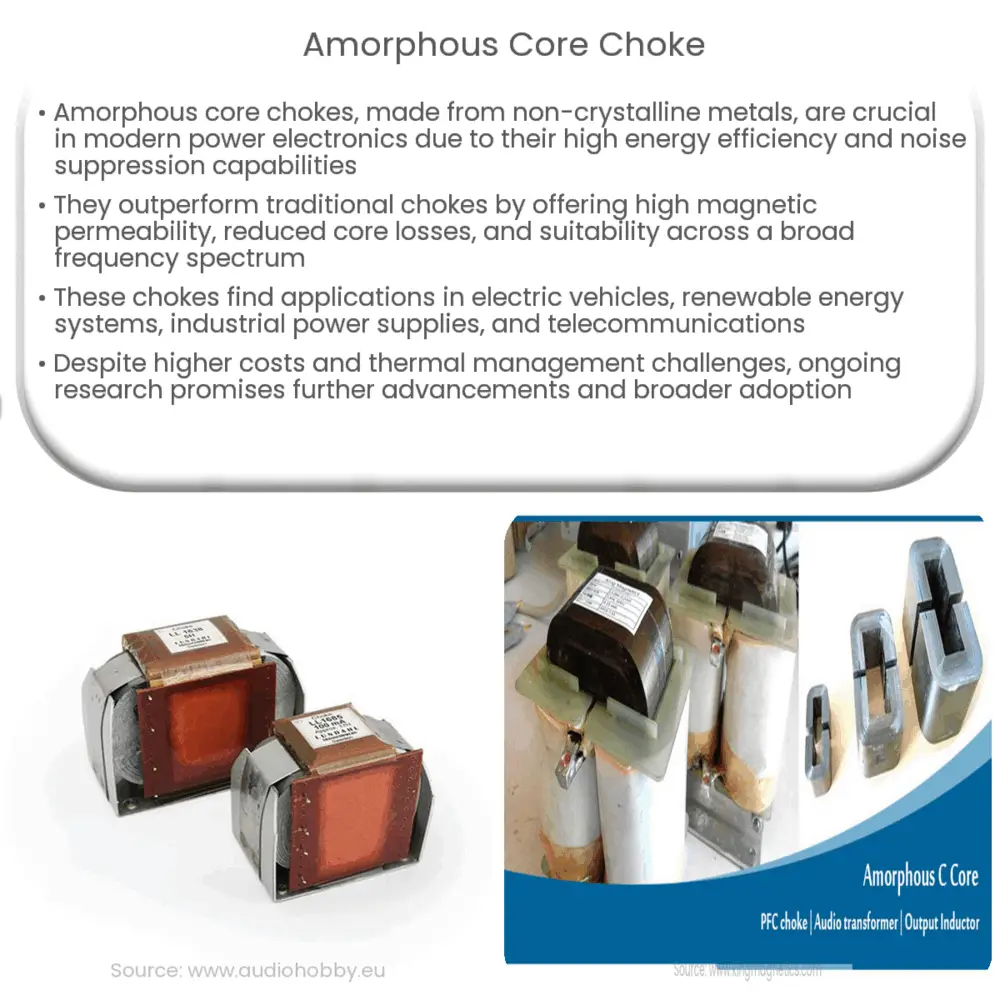

Amorphous core choke

Amorphous Core Choke: An Overview


Amorphous core chokes are vital components in modern power electronics, significantly improving energy efficiency and reducing power losses. They are used in a variety of applications, including electric vehicles, renewable energy systems, and industrial power supplies. In this article, we will provide an overview of the amorphous core choke, its characteristics, and its advantages over traditional chokes.

What is an Amorphous Core Choke?

An amorphous core choke is an inductive component that consists of a magnetic core made from amorphous metal and a coil of wire wound around it. This type of choke is designed to suppress or filter high-frequency noise in electrical circuits, thereby ensuring stable operation and reducing electromagnetic interference (EMI). The amorphous metal used in the core is characterized by its non-crystalline atomic structure, which provides unique magnetic properties that are advantageous for high-frequency noise suppression.

Characteristics of Amorphous Core Chokes

Amorphous core chokes exhibit several distinguishing features that set them apart from conventional chokes, which typically utilize ferrite or iron cores. These characteristics include:

  • High permeability: Amorphous metals have high magnetic permeability, enabling them to confine magnetic fields more effectively than their crystalline counterparts. This property allows amorphous core chokes to deliver superior performance in filtering high-frequency noise.
  • Low core loss: The non-crystalline structure of amorphous metals results in significantly reduced hysteresis and eddy current losses, leading to higher overall energy efficiency.
  • Wide frequency range: Amorphous core chokes are capable of suppressing noise across a broad frequency spectrum, making them suitable for various applications with diverse requirements.
  • Compact size and lightweight: Due to their high permeability and low core loss, amorphous core chokes can be designed with smaller dimensions and reduced weight compared to conventional chokes, without compromising performance.

Advantages of Amorphous Core Chokes

As a result of their unique characteristics, amorphous core chokes offer numerous benefits over traditional chokes. Some of the most significant advantages include:

  • Improved energy efficiency: The reduced core losses of amorphous chokes translate to lower overall power losses, enhancing the energy efficiency of the systems in which they are employed.
  • Enhanced noise suppression: The high permeability of amorphous metals allows these chokes to provide superior noise suppression across a wide frequency range, improving the reliability and stability of electronic systems.
  • Compact design: The smaller size and weight of amorphous core chokes make them ideal for applications where space and weight constraints are critical, such as electric vehicles and aerospace systems.
  • Environmentally friendly: Amorphous metals can be produced using less energy and fewer resources than traditional crystalline metals, making them a more sustainable choice for choke manufacturing.

Applications of Amorphous Core Chokes

Amorphous core chokes are utilized in a variety of industries and applications due to their numerous advantages. Some common applications include:

  • Electric vehicles (EVs): Amorphous core chokes are used in EV power electronics, such as onboard chargers and battery management systems, to suppress high-frequency noise and improve energy efficiency.
  • Renewable energy systems: In solar inverters and wind turbine converters, amorphous core chokes help reduce EMI and enhance the overall system efficiency.
  • Industrial power supplies: These chokes are employed in switch-mode power supplies (SMPS) to minimize high-frequency noise and ensure stable operation.
  • Telecommunications: Amorphous core chokes play a vital role in filtering high-frequency noise in telecommunication systems, maintaining signal integrity and preventing interference.

Challenges and Future Developments

Despite their many advantages, amorphous core chokes face certain challenges that need to be addressed to further enhance their performance and market adoption. Some of these challenges include:

  • Cost: Amorphous metals can be more expensive than traditional materials, such as ferrites, due to their complex manufacturing processes. However, ongoing research and technological advancements are expected to reduce these costs over time.
  • Thermal management: As with all inductive components, amorphous core chokes generate heat during operation. Efficient thermal management solutions are necessary to ensure the longevity and reliability of these chokes in various applications.

Future developments in the field of amorphous core chokes are expected to focus on improving manufacturing processes, reducing costs, and addressing thermal management challenges. Additionally, researchers are investigating new amorphous materials with improved magnetic properties, which could further enhance the performance of amorphous core chokes.


Amorphous core chokes are an essential component in modern power electronics, offering improved energy efficiency, superior noise suppression, and a compact design compared to traditional chokes. Their unique characteristics make them well-suited for applications in electric vehicles, renewable energy systems, industrial power supplies, and telecommunications. As research and development in this field continue, amorphous core chokes are expected to become even more prevalent in the future, paving the way for more efficient and reliable electronic systems.
