4-Wire Kelvin Impedance Analyzer: A Comprehensive Introduction

Introduction

Impedance measurement is a critical aspect of evaluating and characterizing electronic components and materials in various fields such as materials science, semiconductor research, and the development of electronic devices. The 4-wire Kelvin impedance analyzer is an instrument designed to improve the accuracy and reliability of impedance measurements by overcoming the limitations posed by traditional 2-wire impedance analyzers. In this article, we will explore the principles of the 4-wire Kelvin method, its advantages, and applications in various industries.

4-Wire Kelvin Method: Principles and Advantages

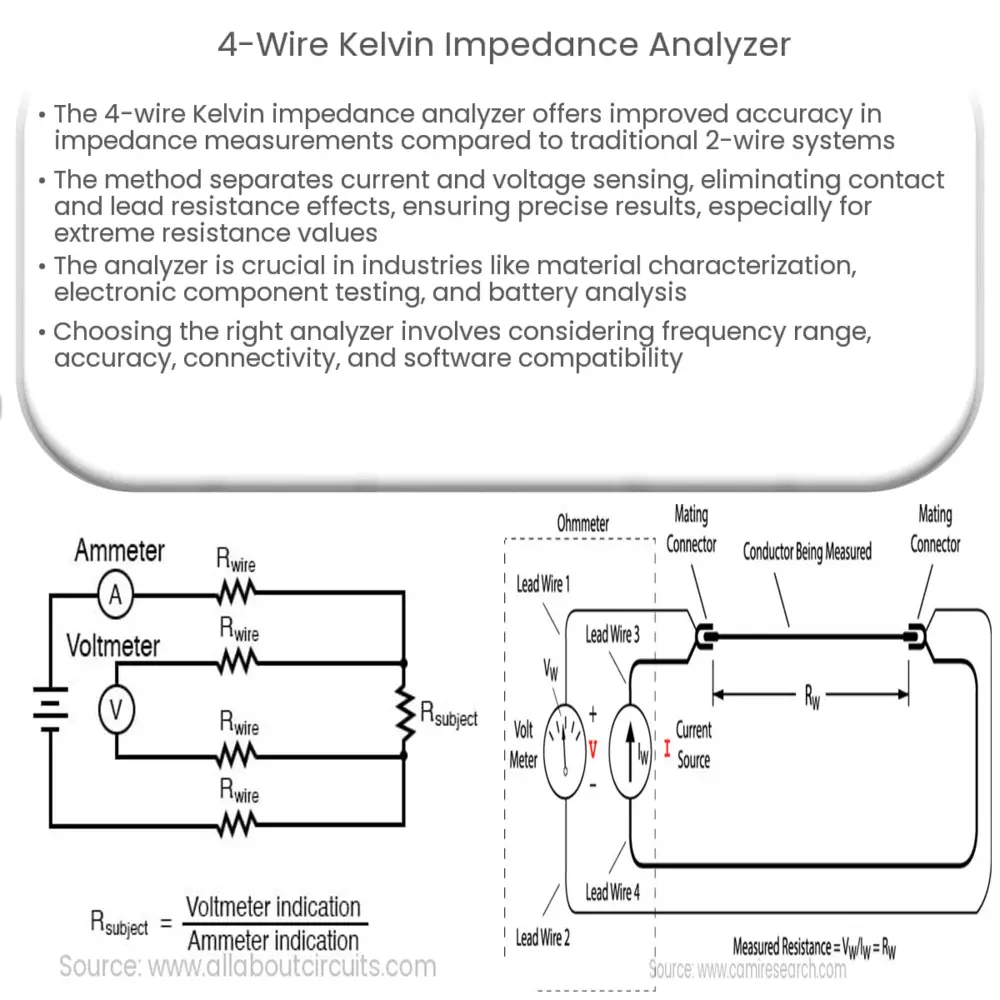

The 4-wire Kelvin method, also known as the 4-terminal sensing or 4-point probing technique, is a technique that utilizes four electrical connections to measure the impedance of a component or material with higher accuracy. The method separates the current-carrying (force) conductors from the voltage-sensing (sense) conductors, thereby eliminating the effects of contact and lead resistance. This results in more accurate impedance measurements, especially in cases where the resistance values are very low or very high.

There are several advantages to using the 4-wire Kelvin method in impedance analyzers:

• Accuracy: By eliminating the effect of contact and lead resistance, the 4-wire Kelvin method provides more accurate and consistent impedance measurements.
• Wide Range: The 4-wire Kelvin method is suitable for measuring a wide range of impedance values, from very low milliohm levels to very high megaohm levels.
• Reduced Errors: The separation of current and voltage sensing leads helps minimize errors due to lead resistance and temperature variations, which are common issues in 2-wire impedance measurements.

4-Wire Kelvin Impedance Analyzer: Components and Operation

A typical 4-wire Kelvin impedance analyzer consists of the following components:

1. Signal Generator: The signal generator produces an alternating current (AC) or direct current (DC) signal with a specific frequency and amplitude, which is applied to the device under test (DUT) via the force conductors.
2. Current and Voltage Sensors: These sensors detect the current flowing through the DUT and the voltage across the DUT, respectively. The voltage sensor is connected to the sense conductors, which are separate from the force conductors.
3. Data Processing Unit: The data processing unit receives the current and voltage measurements from the sensors and calculates the impedance of the DUT using Ohm’s law (impedance = voltage / current).
4. Display: The impedance values are displayed on a screen or output to a connected device for further analysis and interpretation.

During operation, the signal generator applies a known current or voltage to the DUT, and the current and voltage sensors measure the resulting voltage and current, respectively. The data processing unit then calculates the impedance of the DUT and displays the result.

Applications of 4-Wire Kelvin Impedance Analyzers

The 4-wire Kelvin impedance analyzer is widely used in various industries for a range of applications, including but not limited to:

• Material Characterization: The 4-wire Kelvin method is employed in evaluating the electrical properties of various materials, such as conductive polymers, nanomaterials, and superconductors, to assess their suitability for specific applications.
• Quality Control and Testing: In the manufacturing of electronic components, such as resistors, capacitors, and inductors, 4-wire Kelvin impedance analyzers are used for quality control and testing to ensure that the components meet the desired specifications.
• Battery Testing: The 4-wire Kelvin method is useful in analyzing the internal impedance of batteries, which is an essential parameter for determining battery health, capacity, and performance.
• Corrosion Studies: Impedance measurements play a crucial role in understanding the corrosion processes in metals and alloys. The 4-wire Kelvin impedance analyzer can provide accurate impedance data to study the effectiveness of corrosion inhibitors and protective coatings.

Selecting a 4-Wire Kelvin Impedance Analyzer

When choosing a 4-wire Kelvin impedance analyzer, there are several factors to consider:

• Frequency Range: Different applications require impedance measurements at various frequencies. Select an impedance analyzer with a frequency range suitable for your specific requirements.
• Accuracy and Resolution: The accuracy and resolution of the impedance analyzer are essential for reliable measurements. Choose an analyzer with adequate specifications to meet the demands of your application.
• Interface and Connectivity: Consider the analyzer’s interface and connectivity options, such as USB, LAN, or GPIB, for seamless integration with your existing setup and data analysis tools.
• Software Compatibility: Ensure that the analyzer is compatible with the software you use for data analysis and reporting. Many analyzers come with their software or support third-party software for data processing and visualization.

Conclusion

The 4-wire Kelvin impedance analyzer is a versatile and essential instrument for accurate impedance measurements in various industries, from material science to electronics manufacturing. By eliminating the effects of contact and lead resistance, the 4-wire Kelvin method provides more reliable impedance data, allowing researchers and engineers to better understand and optimize the performance of electronic components and materials. By considering the factors mentioned above, you can select the most suitable 4-wire Kelvin impedance analyzer for your specific needs.
