The four-point probe technique measures electrical conductivity by injecting current through outer probes and measuring voltage drop with inner probes.
Introduction to Four-Point Probe Measurement Technique
The four-point probe measurement technique is a widely used method for determining the electrical conductivity or resistivity of a material. This technique is particularly advantageous because it reduces the impact of contact resistance between the probe and the material, providing more accurate results.
Principle of Four-Point Probe Technique

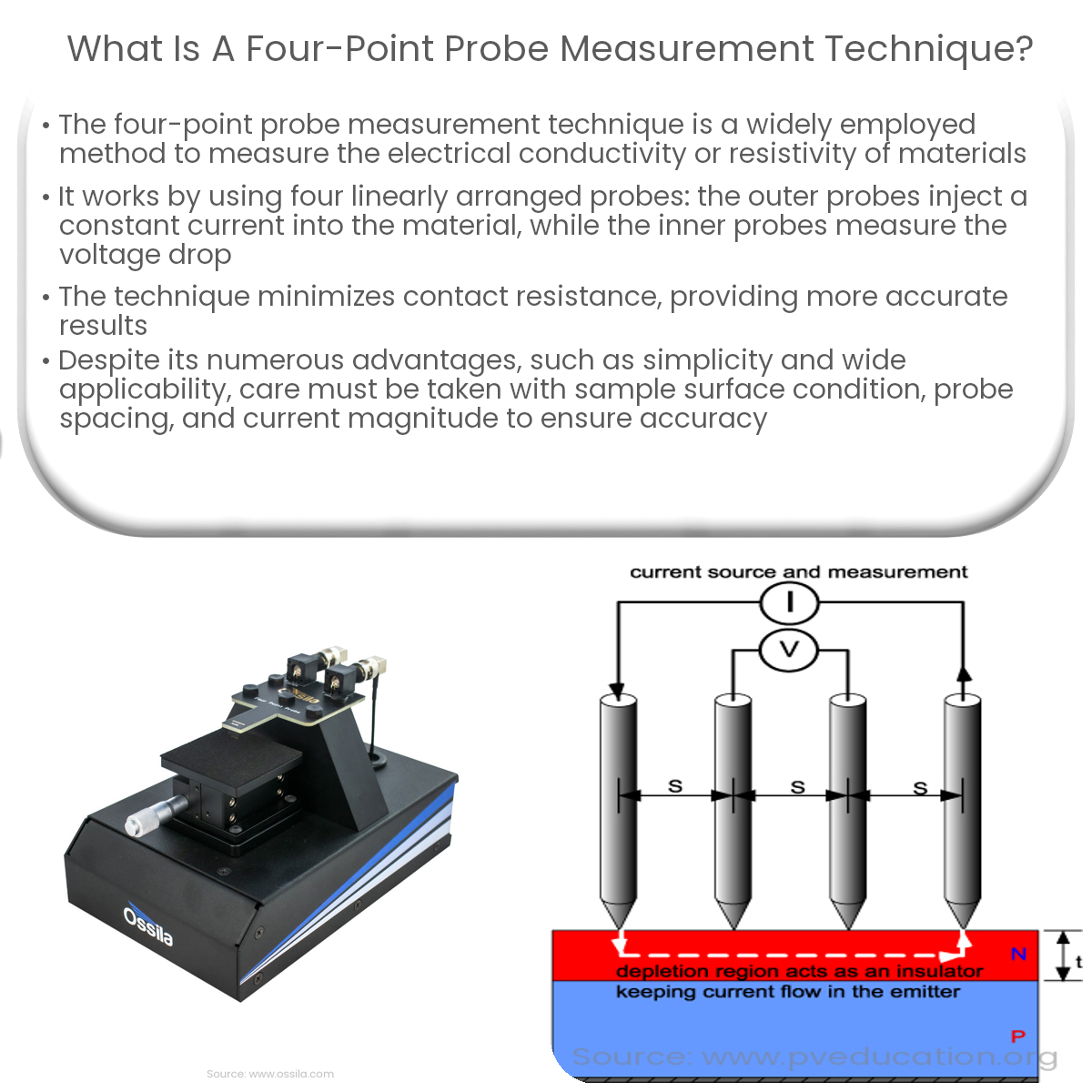

The four-point probe technique utilizes four equidistant, linearly arranged metal probes to apply current and measure voltage. The outer probes (probes 1 and 4) inject a known constant current (I) into the material, while the inner probes (probes 2 and 3) measure the voltage drop (V) across the material. The sample resistivity (ρ) can be calculated using Ohm’s law and a geometrical correction factor.
Geometrical Correction Factor
The geometrical correction factor (K) depends on the probe spacing, probe geometry, and sample dimensions. For a uniform material with an infinite thickness and probe spacings that are small compared to the sample dimensions, K can be approximated as π times the probe spacing. In practice, more precise values can be obtained from tables or numerical simulations.
Advantages of Four-Point Probe Technique
- Reduced contact resistance: Unlike two-point measurements, the four-point probe technique effectively isolates the impact of contact resistance, improving measurement accuracy.
- Simple setup: The experimental setup for the four-point probe technique is relatively simple and can be implemented using commercially available equipment.
- Wide applicability: The four-point probe method can be used for a variety of materials, including conductors, semiconductors, and insulators, as well as thin films and bulk materials.
Limitations and Considerations
While the four-point probe technique offers many advantages, there are some limitations and considerations to keep in mind:
- Sample surface: The sample surface must be clean, flat, and free of irregularities to ensure proper probe contact and accurate measurements.
- Probe spacing: Careful attention must be paid to the probe spacing, as it affects the geometrical correction factor and the accuracy of the resistivity calculation.
- Current magnitude: The applied current should not be too high, as this can lead to heating effects and alter the sample’s resistivity during the measurement.
In summary, the four-point probe technique is a valuable tool for measuring the electrical conductivity of various materials. Its ability to minimize contact resistance and its applicability to a wide range of materials make it a popular choice in research and industry.
