Charge pumps are used in voltage doubling, voltage inversion, LCD/OLED displays, battery-powered devices, LED drivers, non-volatile memory, and sensor interfaces.

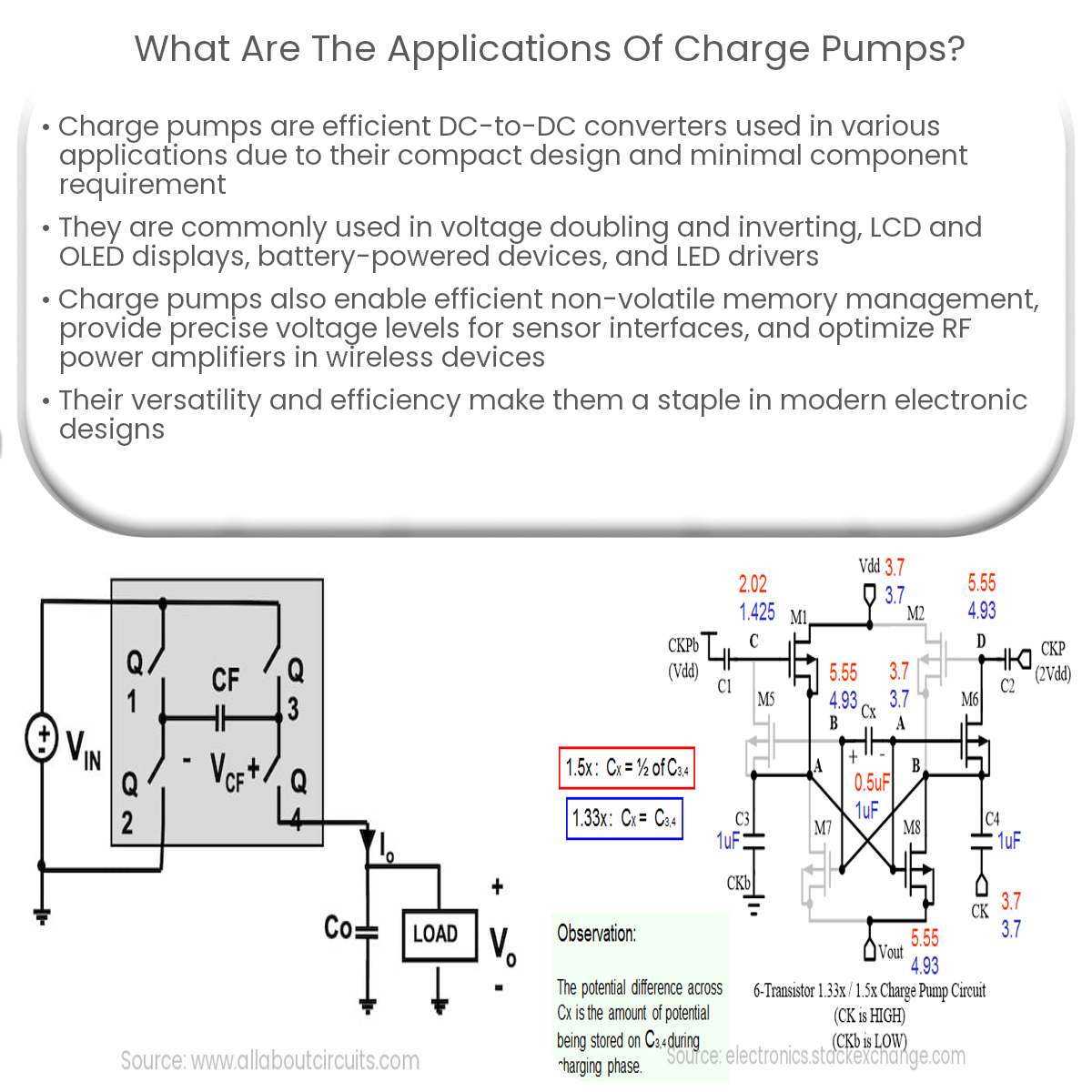

Applications of Charge Pumps
Charge pumps are versatile electronic components used in a variety of applications. These DC-to-DC converters are highly efficient, require few external components, and can be implemented in compact designs. Here are some common applications of charge pumps:
1. Voltage Doubling and Inverting
Charge pumps are often used to double or invert an input voltage. Voltage doublers generate twice the input voltage, while voltage inverters produce a negative output voltage of the same magnitude as the input. These applications are commonly found in power supply circuits, audio amplifiers, and other electronic devices.
2. LCD and OLED Displays
Many display technologies, such as liquid crystal displays (LCDs) and organic light-emitting diode (OLED) displays, require multiple voltage levels for proper operation. Charge pumps can be used to generate these voltages efficiently and with minimal external components, making them suitable for compact display systems.
3. Battery-powered Devices
Battery-powered devices often require voltage conversion to optimize power consumption and extend battery life. Charge pumps are an efficient way to achieve this, as they can be used to step up, step down, or invert the battery voltage to suit the needs of the device.
4. LED Drivers
Charge pumps can be employed as LED drivers, providing a constant current to regulate the brightness of the LED. This is particularly useful for devices that require multiple LEDs with varying brightness levels, such as backlighting systems for displays and automotive lighting.
5. Non-volatile Memory
Non-volatile memory, like Flash and EEPROM, requires higher voltages for programming and erasing operations. Charge pumps can be used to generate the necessary voltage levels, enabling efficient and compact memory management solutions.
6. Sensor Interfaces
Some sensors, such as capacitive touch sensors or pressure sensors, require specific voltage levels for accurate operation. Charge pumps can be used to provide these voltages, enabling precise sensor readings and enhanced performance.
7. RF Power Amplifiers
Charge pumps can be employed in radio frequency (RF) power amplifiers to generate the required bias voltage for the amplifier. This helps optimize the performance of the amplifier and reduce power consumption in wireless communication devices.
In summary, charge pumps are versatile components that offer efficient voltage conversion solutions for a wide range of applications, from power supplies and displays to non-volatile memory and sensor interfaces. Their small size, simplicity, and efficiency make them a popular choice for modern electronic designs.
