Voltage Followers

Introduction to Voltage Followers

A voltage follower, also known as a unity gain buffer, is a fundamental element in electronics. It is a simple configuration in an operational amplifier (op-amp) circuit which provides a direct connection from input to output. The prime characteristic that makes voltage followers significant is the ‘unity gain’ they deliver, which implies that the output voltage remains the same as the input voltage.

How does a Voltage follower work?

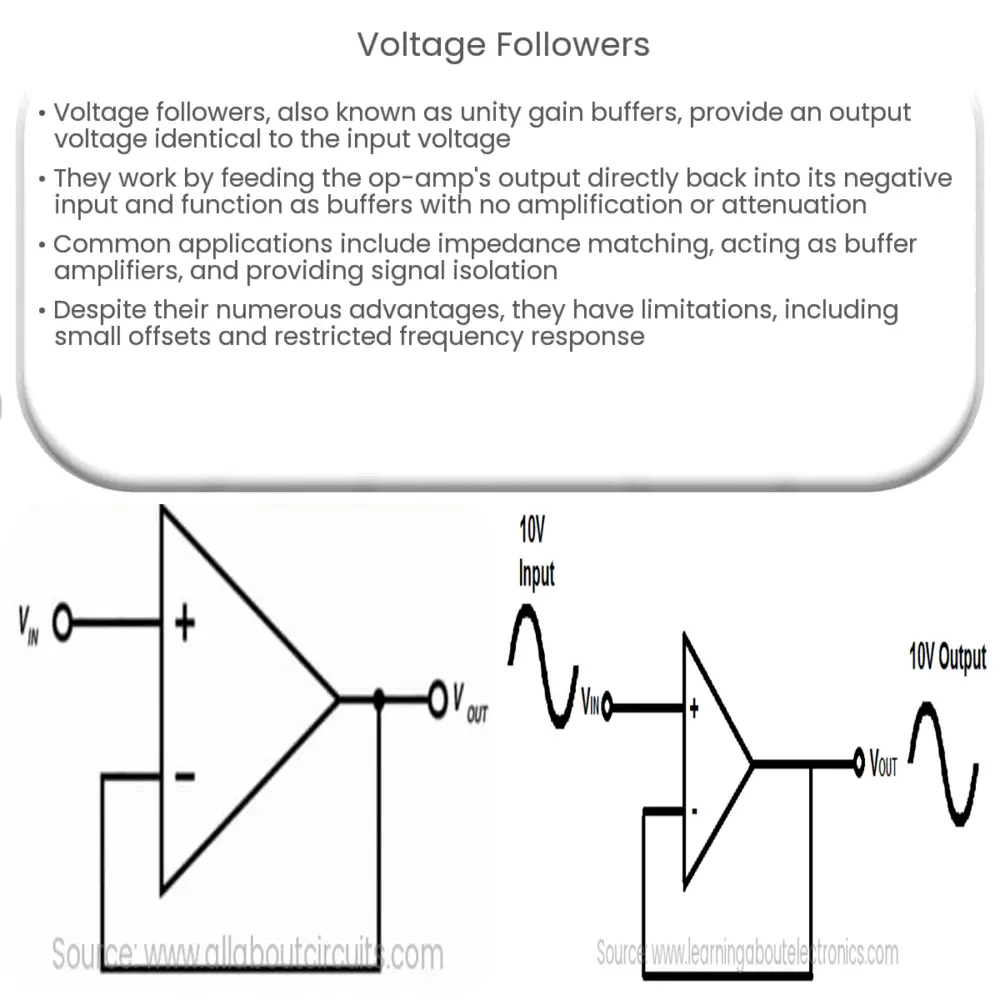

In a voltage follower circuit, the output of the op-amp is fed directly back into the negative input. The positive input is connected to the voltage that is to be ‘followed’. The circuit acts as a buffer, providing no amplification or attenuation to the signal. The primary advantage is that it presents a very high input impedance and a very low output impedance. In simpler terms, it means that the circuit takes very little current to operate and can supply a significant amount of current to a load.

Applications of Voltage Followers

  • Impedance Matching: Voltage followers are commonly used to match the impedance between a high impedance source and a low impedance load.
  • Buffer Amplifier: Voltage followers function as buffer amplifiers between circuits that have different voltage levels. This helps prevent the loaded circuit from being affected by the driving circuit.
  • Signal Isolation: Voltage followers can be used to isolate stages in an amplifier chain or other system to prevent the stages from interfering with each other.

The Circuit Analysis

The operational amplifier is a direct coupled high gain amplifier usually consisting of one or more differential amplifiers. This means it amplifies the difference between two input signals. In the case of a voltage follower, the inverting input (marked with a minus ‘-‘) and the non-inverting input (marked with a ‘+’) play crucial roles.

In the voltage follower circuit, the output is directly connected to the inverting input. The signal is applied to the non-inverting input. As the op-amp tries to maintain balance, it works to keep its two inputs the same (this is known as the golden rule of op-amps). Therefore, the output directly ‘follows’ the input voltage.

Advantages of Voltage Followers

Due to their unique properties, voltage followers bring several benefits in electronic circuits:

  • High Input Impedance: Voltage followers present a very high input impedance which means they do not load down the input source, thereby preserving the original signal.
  • Low Output Impedance: They provide a low output impedance. This property ensures that the load does not affect the voltage follower’s operation, making it capable of driving low impedance loads.
  • No Phase Shift: In a voltage follower, the output signal is in phase with the input signal, ensuring that there is no phase shift.

Practical Examples and Uses

Voltage followers are used in a variety of practical applications. For instance, in audio systems, a voltage follower is used to drive a loudspeaker. In digital systems, they can be found in bus line or transmission line drivers. Additionally, in sensor systems, they are used to buffer the sensor output to maintain the integrity of the signal.

Limitations of Voltage Followers

Despite their many advantages, voltage followers do have limitations. First, while the ideal expectation is for the output to exactly equal the input, due to the real-world characteristics of op-amps, there can be small offsets between the input and output. Second, the frequency response of an op-amp is not infinite, which means at very high frequencies the gain might not be unity.

Conclusion

In conclusion, voltage followers are a versatile and crucial component in the world of electronics. With their ability to provide unity gain, impedance matching, and signal isolation, they are an essential tool in the design of various types of electronic systems. While they have their limitations, understanding how they function can unlock new potential in electronic design, from audio systems to sensor technology. Despite the rapid advancements in the electronics field, the fundamental principles and applications of voltage followers remain relevant, underlining their enduring importance in circuit design.
