Understanding Underground Feeder Cables (UF Cables)

Introduction to Underground Feeder Cables

Underground feeder (UF) cables are specialized electrical cables designed to be buried directly underground without the need for additional conduit or protection. These cables are commonly used in residential and commercial settings to provide power to various outdoor applications, such as lighting, irrigation systems, and other electrical equipment. In this article, we will explore the composition, advantages, and applications of UF cables.

Composition and Construction

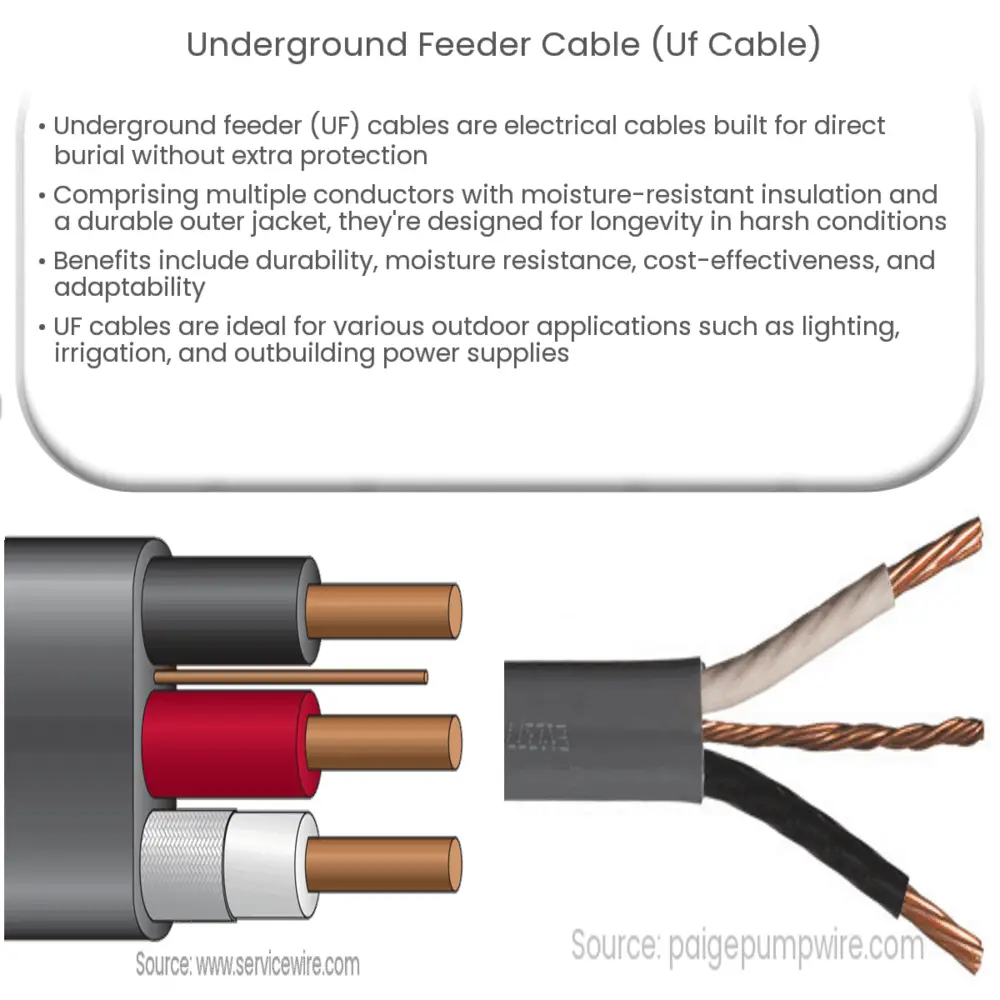

Underground feeder cables consist of multiple conductors, each individually insulated with a robust, moisture-resistant material, typically thermoplastic or cross-linked polyethylene (XLPE). These conductors are then bundled together and wrapped with a durable outer jacket made from PVC or another suitable material that can withstand the harsh conditions of direct burial. The jacket is designed to be highly resistant to moisture, chemicals, and abrasion, ensuring long-lasting performance and minimal maintenance.

UF cables are available in a variety of sizes and configurations, depending on the specific application and voltage requirements. Typically, these cables are available in two- or three-conductor configurations, with an additional grounding wire included for added safety. The size of the conductors, measured in American Wire Gauge (AWG), will vary depending on the electrical load and distance of the installation.

Advantages of UF Cables

There are several advantages to using underground feeder cables in both residential and commercial settings, including:

• Durability: UF cables are built to withstand the rigors of direct burial, offering a robust and long-lasting solution for outdoor electrical needs.
• Moisture Resistance: The insulation and outer jacket of UF cables provide excellent protection against moisture ingress, making them suitable for use in damp environments and areas prone to flooding.
• Cost-Effective: Since UF cables do not require additional conduit or protective measures, they can be more cost-effective than other wiring solutions for outdoor applications.
• Flexibility: With a variety of sizes and configurations available, UF cables can be tailored to meet the specific requirements of a wide range of electrical projects.

Applications of UF Cables

Underground feeder cables are suitable for a wide range of outdoor applications, including:

• Outdoor lighting installations, such as landscape, security, and pathway lighting
• Power supply for irrigation systems, water pumps, and well systems
• Electric supply to outbuildings, such as sheds, garages, and workshops
• Swimming pool and spa electrical systems
• Electrical connections for outdoor appliances, like electric grills or heaters

In the next part of this article, we will discuss important considerations when choosing and installing underground feeder cables, including local codes and regulations, as well as tips for proper installation and maintenance.

Local Codes and Regulations

Before selecting and installing UF cables, it is essential to familiarize yourself with local codes and regulations governing electrical installations. These regulations may vary depending on your location, and non-compliance can result in fines or other penalties. Consulting with a qualified electrician or local building inspector can help ensure your project adheres to all applicable standards and requirements.

Choosing the Right UF Cable

Selecting the appropriate UF cable for your project involves several factors, including the electrical load, voltage requirements, and distance of the installation. It’s crucial to choose a cable with a suitable conductor size (measured in AWG) to handle the load and minimize voltage drop over distance. Additionally, consider selecting a cable with a higher temperature rating if it will be exposed to extreme environmental conditions, such as high ambient temperatures or direct sunlight.

Installation Tips

Proper installation of UF cables is essential for ensuring their longevity and reliable performance. Here are some tips for a successful installation:

• Depth: Bury the UF cable at an appropriate depth to protect it from damage due to digging or other activities. Local codes may specify minimum burial depths, so be sure to consult with local authorities or a qualified electrician.
• Protection: Use caution tape or tracer wire above the cable to alert others to its presence and help prevent accidental damage during future digging projects.
• Backfill: Use suitable backfill material, such as sand or clean soil, free of sharp rocks or debris that could damage the cable over time.
• Splices and Connections: Ensure all splices and connections are properly sealed and protected using appropriate connectors and waterproof junction boxes designed for direct burial.
• Inspection: Before backfilling, inspect the entire length of the UF cable for any visible damage or defects that could compromise its performance. Replace any damaged sections before proceeding.

Maintenance and Troubleshooting

While UF cables are designed for minimal maintenance, occasional issues may arise. If you encounter a problem, such as a loss of power or tripped circuit breaker, begin by inspecting the cable for visible damage, including cuts, punctures, or other signs of wear. If no visible damage is found, use a cable fault locator or consult a qualified electrician to identify and repair any issues.

Conclusion

Underground feeder cables are a versatile and durable solution for outdoor electrical applications, offering numerous advantages over other wiring methods. By understanding their construction, benefits, and applications, as well as adhering to local codes and regulations, you can ensure a successful and long-lasting installation. With proper selection, installation, and maintenance, UF cables can provide safe and reliable power to a wide range of outdoor projects for years to come.
