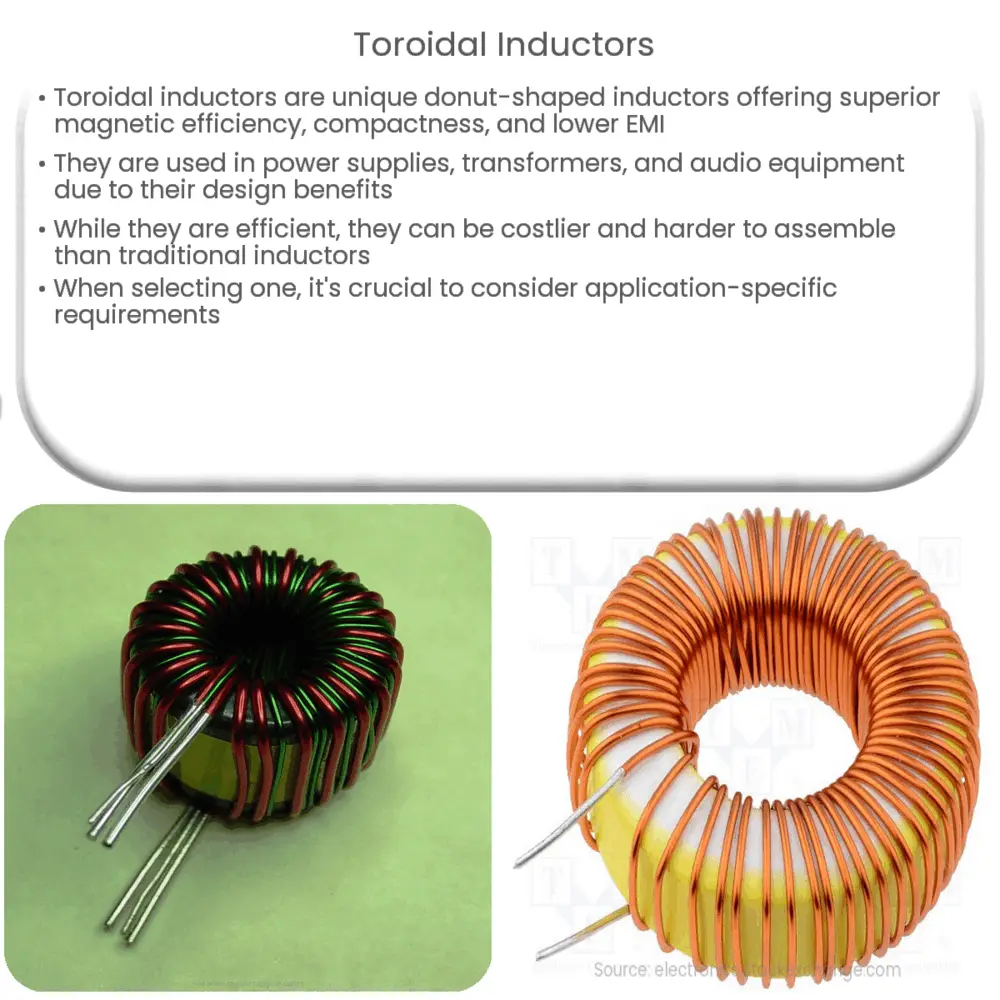

Introduction to Toroidal Inductors
Toroidal inductors are a specific type of inductor used in a wide variety of applications, including power supplies, transformers, and audio equipment. Their unique toroidal, or donut-shaped, design grants them certain advantages over traditional inductor types. These include superior magnetic efficiency, smaller size for a given inductance and power level, and lower electromagnetic interference (EMI).
Design and Construction
Toroidal inductors are constructed from a toroid—a donut-shaped object—made of ferrite or iron powder. The toroid is then wrapped in wire, with the number of turns, wire thickness, and core material all influencing the final inductance value.
The toroidal shape is advantageous because the magnetic field lines generated by the current flowing through the wire are largely contained within the core. This helps to minimize the leakage of the magnetic field, increasing the efficiency and effectiveness of the inductor.
Applications of Toroidal Inductors
- Power Supplies: In power supplies, toroidal inductors are used to regulate the flow of electricity. They can store energy, block AC while passing DC, and filter out electrical noise. Their low magnetic field leakage is a significant advantage in this context.
- Transformers: In transformers, toroidal inductors help to efficiently transfer energy from one circuit to another. Because of their high magnetic efficiency, they are often used in compact, high-performance transformers.
- Audio Equipment: In audio equipment, toroidal inductors help to manage the power supply and can be used in the crossover networks of speakers. Their small size and efficiency make them ideal for these applications.
The Advantages of Toroidal Inductors
- High Magnetic Efficiency: The toroidal design contains the magnetic field within the core, leading to high magnetic efficiency. This allows for a smaller, more compact design for a given inductance and power level.
- Low Electromagnetic Interference (EMI): With the magnetic field contained within the core, the amount of EMI that toroidal inductors generate is considerably reduced, making them a good choice for sensitive electronic applications.
Disadvantages of Toroidal Inductors
Despite their advantages, toroidal inductors are not without their drawbacks. These include:
- Cost: Due to the complexity of winding wire around a toroid, toroidal inductors are typically more expensive to manufacture than their traditional counterparts.
- Difficult Assembly: Their shape and the process required to assemble them make toroidal inductors more difficult to mount on circuit boards.
How to Choose a Toroidal Inductor
When choosing a toroidal inductor, several factors need to be considered. These include the desired inductance, the maximum current that the inductor will need to handle, the frequency of operation, and the required physical size and mounting method. It’s also important to understand the environment in which the inductor will be used, such as whether it will be subjected to high temperatures, vibration, or other challenging conditions.
Conclusion
In conclusion, toroidal inductors, with their unique donut-shaped design, offer a variety of benefits over traditional inductors, including superior magnetic efficiency, smaller size for a given inductance and power level, and lower electromagnetic interference. These characteristics make them an excellent choice for applications such as power supplies, transformers, and audio equipment. Despite their higher cost and more complex assembly, the benefits they provide often outweigh these disadvantages. When choosing a toroidal inductor, it’s important to consider the specific requirements of your application to ensure you select the right inductor for the job.
