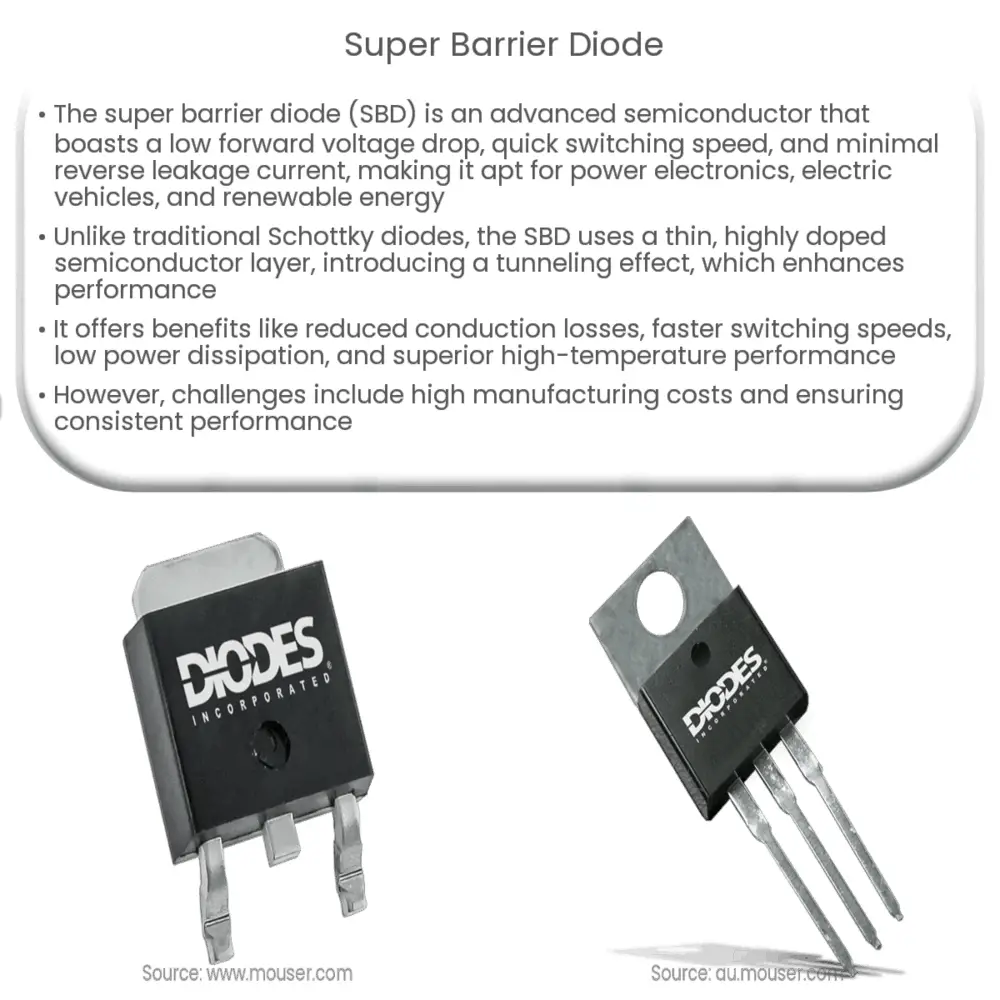

Super Barrier Diode: A Revolutionary Semiconductor Technology

Introduction

The super barrier diode (SBD) is a cutting-edge semiconductor device that has attracted significant attention in recent years due to its unique combination of low forward voltage drop, fast switching speed, and low reverse leakage current. These characteristics make it ideal for applications in power electronics, electric vehicles, and renewable energy systems, among others. In this article, we will explore the working principle, advantages, and potential applications of this innovative technology.

Working Principle of Super Barrier Diode

The super barrier diode is a type of Schottky diode that utilizes a unique structure to enhance its performance. Traditional Schottky diodes consist of a metal-semiconductor junction, which results in a low forward voltage drop and high reverse leakage current. The SBD, on the other hand, features a thin, highly doped semiconductor layer sandwiched between the metal contact and the lightly doped semiconductor material.

This additional layer introduces a tunneling effect, allowing electrons to flow more easily through the device. The result is a lower forward voltage drop and a significantly reduced reverse leakage current. Moreover, the SBD’s fast switching speed is attributed to the absence of a traditional pn-junction, which eliminates the need for minority carrier recombination.

Advantages of Super Barrier Diodes

The super barrier diode offers several advantages over conventional diodes, such as:

• Low forward voltage drop: The SBD’s unique structure enables a lower forward voltage drop compared to traditional Schottky diodes. This results in reduced conduction losses and improved efficiency, especially in high-frequency applications.
• Fast switching speed: Due to the absence of a pn-junction, SBDs have faster switching speeds than conventional diodes, making them ideal for high-frequency applications where rapid voltage transitions are required.
• Low reverse leakage current: The tunneling effect created by the thin, highly doped semiconductor layer significantly reduces the reverse leakage current in SBDs. This translates to less power dissipation and improved reliability, particularly in high-temperature environments.
• High temperature performance: SBDs exhibit excellent performance at high temperatures, making them well-suited for applications in harsh environments where other diodes may suffer from thermal degradation.

Potential Applications of Super Barrier Diodes

Thanks to their unique combination of features, super barrier diodes are well-suited for a variety of applications, including:

• Power electronics: SBDs can be used in power supply circuits, voltage regulators, and DC-DC converters, where their low forward voltage drop and fast switching speeds can lead to improved efficiency and reduced power losses.
• Electric vehicles: With their high temperature performance and low power dissipation, SBDs are ideal for use in electric vehicle powertrains, where they can contribute to increased driving range and enhanced reliability.
• Renewable energy systems: The low conduction losses and fast switching speeds of SBDs make them suitable for use in solar inverters, wind turbine converters, and other renewable energy applications, where they can help to maximize energy harvesting and system efficiency.

Challenges and Future Developments

Despite the numerous advantages offered by super barrier diodes, there are a few challenges that must be addressed before they become a widespread solution in various industries. One primary concern is the relatively high manufacturing cost associated with SBDs, which can be attributed to the need for precise doping control and the use of specialized materials. Additionally, achieving consistent and reliable performance across a wide range of temperatures and voltages remains a challenge for SBDs, particularly in high-power applications.

Future developments in super barrier diode technology will likely focus on addressing these challenges by improving manufacturing processes, optimizing device structures, and exploring new materials. Continued research and development efforts will be crucial in unlocking the full potential of SBDs and enabling their widespread adoption in various industries.

Conclusion

The super barrier diode is a promising semiconductor technology that has the potential to revolutionize various industries, particularly those involving power electronics, electric vehicles, and renewable energy systems. With its unique combination of low forward voltage drop, fast switching speed, and low reverse leakage current, the SBD is poised to offer significant performance improvements over conventional diodes in numerous applications. As researchers continue to address the existing challenges and optimize the technology, the super barrier diode is likely to become an increasingly important component in the electronics landscape, driving efficiency and innovation in a wide range of applications.

References

1. Chen, W., & Chen, Z. (2016). Super Barrier Rectifier: Principle, Application, and Development. IEEE Transactions on Power Electronics, 31(2), 1620-1629.
2. Jeon, J., & Choi, J. (2019). High-performance super-barrier diodes for next-generation power electronics applications. Materials Today Energy, 14, 100360.
3. Kumar, A., Kim, H., & Baliga, B. J. (2017). Super Barrier Schottky Rectifiers: A Review. IEEE Transactions on Electron Devices, 64(10), 3952-3960.
