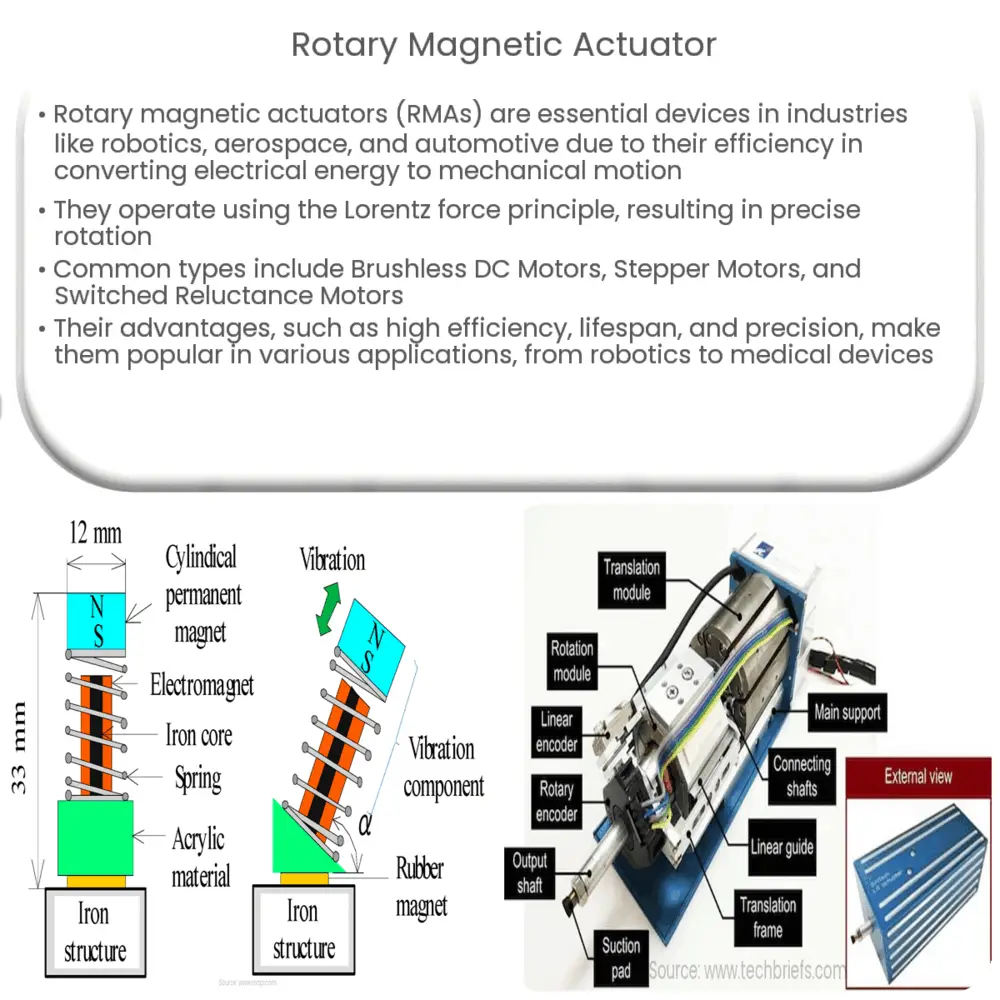

Rotary Magnetic Actuators: An Overview of Principles and Applications

Introduction

Rotary magnetic actuators (RMAs) are versatile devices that have found their way into a wide range of applications, spanning from robotics and automation to aerospace and automotive industries. These compact and efficient electromechanical systems leverage the principles of magnetism to convert electrical energy into mechanical motion. In this article, we will provide an overview of the fundamental principles behind RMAs, their key components, and how they have revolutionized various industries.

Principles of Operation

Rotary magnetic actuators operate based on the interaction between magnetic fields and electric currents. The fundamental principle behind these devices is the Lorentz force, which states that an electric current flowing through a conductor placed in a magnetic field will experience a force perpendicular to both the current and the magnetic field direction. This force is responsible for generating the torque that drives the rotation in RMAs.

RMAs typically consist of two primary components: a stator and a rotor. The stator contains a series of electromagnets or permanent magnets that generate a magnetic field when energized. The rotor, positioned inside or outside the stator, is composed of magnets or magnetically permeable materials that interact with the stator’s magnetic field, causing the rotor to rotate. By controlling the activation sequence of the stator’s electromagnets, it is possible to regulate the direction, speed, and torque of the rotor’s motion precisely.

Types of Rotary Magnetic Actuators

There are several types of rotary magnetic actuators, each with its unique design and operating principles. Some of the most common types include:

1. Brushless DC (BLDC) Motors: BLDC motors use permanent magnets on the rotor and electromagnets on the stator. These motors are highly efficient and offer precise control, making them ideal for applications that demand high performance and long operating life.
2. Stepper Motors: Stepper motors are designed to provide precise, incremental movements by energizing the stator’s electromagnets in a specific sequence. These motors are commonly used in applications requiring precise positioning, such as CNC machines and 3D printers.
3. Switched Reluctance Motors (SRMs): SRMs use a rotor made of magnetically permeable material and a stator with electromagnets. The rotor’s shape is designed to minimize the reluctance (resistance) to the magnetic field, causing it to align with the stator’s magnetic field and rotate. SRMs are robust and simple in design, making them suitable for high-torque and high-speed applications.

Advantages of Rotary Magnetic Actuators

Rotary magnetic actuators offer several advantages over other types of actuators, making them the preferred choice for various applications. Some of these advantages include:

• High Efficiency: RMAs are known for their high efficiency, as they convert electrical energy directly into mechanical motion with minimal energy loss. This attribute makes them suitable for applications where energy conservation is crucial.
• Long Lifespan: RMAs have fewer moving parts and do not require physical contact between components, which reduces wear and tear. This results in a longer operational lifespan and reduced maintenance costs.
• Precise Control: RMAs offer excellent controllability in terms of speed, torque, and positioning, making them ideal for applications that require high levels of precision and accuracy.
• Compact Design: RMAs are generally compact and lightweight, allowing for easy integration into space-constrained applications.
• High Torque-to-Weight Ratio: RMAs can generate high torque while maintaining a relatively low weight, which is beneficial in applications that require high-performance motion control.

Applications of Rotary Magnetic Actuators

Thanks to their numerous advantages, rotary magnetic actuators are employed in a wide range of industries and applications. Some of these include:

1. Robotics: RMAs are widely used in robotic systems, providing precise and efficient motion control for robotic arms, grippers, and drive systems.
2. Automotive: In the automotive industry, RMAs are employed in various systems such as electric power steering, throttle control, and active suspension systems, contributing to improved vehicle performance and safety.
3. Aerospace: RMAs are used in aerospace applications, including satellite positioning systems, actuation of control surfaces, and guidance systems, where precision and reliability are crucial.
4. Industrial Automation: RMAs find use in numerous industrial automation applications, such as conveyor systems, packaging machinery, and CNC machines, enabling precise and efficient motion control.
5. Medical Devices: In the medical field, RMAs play a vital role in surgical robots, medical imaging systems, and laboratory automation equipment, where high precision and accuracy are required.

Conclusion

Rotary magnetic actuators have become an integral part of many industries, thanks to their high efficiency, precise control, and long operational life. As technology advances, RMAs will continue to evolve, offering improved performance and enabling new applications. These versatile devices have the potential to shape the future of motion control and contribute to the ongoing development of cutting-edge technologies.
