Quartz Crystal Microbalance (QCM) Gas Sensor: A High-Precision Sensing Technology

The development of highly sensitive and selective gas sensors has become increasingly important for various applications, including environmental monitoring, industrial process control, and medical diagnostics. One such technology that has gained significant attention in recent years is the quartz crystal microbalance (QCM) gas sensor. In this article, we will discuss the working principle, advantages, and potential applications of QCM gas sensors.

Working Principle of QCM Gas Sensors

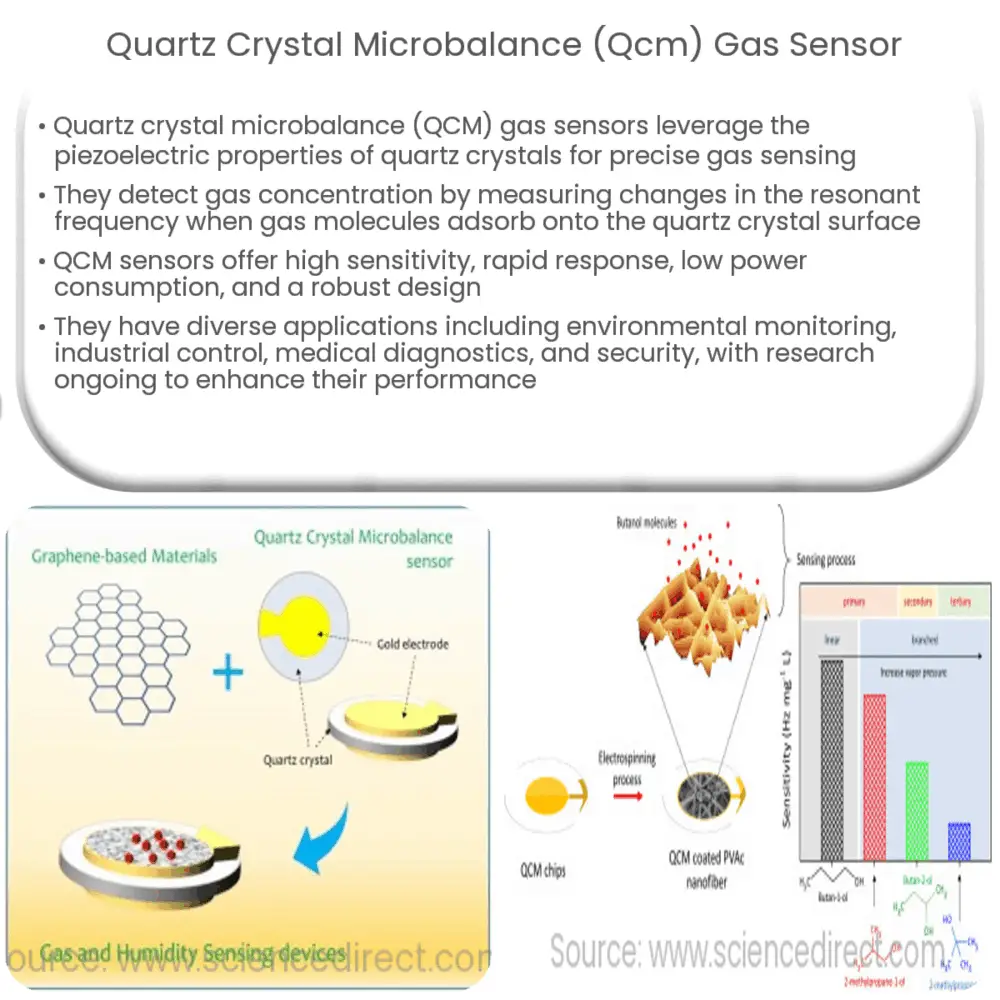

The QCM gas sensor is based on the piezoelectric properties of quartz crystals. A thin, disk-shaped quartz crystal is sandwiched between two electrodes, forming a resonator. When an alternating voltage is applied to the electrodes, the crystal oscillates at its resonance frequency. The resonant frequency of the quartz crystal is highly sensitive to changes in mass, and this property forms the basis for QCM gas sensing.

When gas molecules adsorb onto the surface of the quartz crystal, they cause a change in the mass of the crystal. This change in mass alters the resonant frequency of the crystal, which can be measured with high precision. By analyzing the change in frequency, it is possible to determine the concentration of the target gas present in the surrounding environment. In order to enhance the sensitivity and selectivity of the QCM gas sensor, the surface of the quartz crystal can be coated with a thin layer of a selective sensing material, such as a metal oxide or a polymer film.

Advantages of QCM Gas Sensors

QCM gas sensors offer several advantages over other gas sensing technologies, including:

1. High sensitivity: QCM gas sensors can detect very low concentrations of target gases, thanks to their ability to measure minute changes in mass at the nanogram level.
2. Fast response: The resonant frequency of the quartz crystal changes almost instantaneously upon adsorption of gas molecules, providing a rapid response to changes in gas concentration.
3. Low power consumption: QCM gas sensors typically require only a small voltage to drive the quartz crystal, resulting in low power consumption compared to other sensing technologies.
4. Simple and robust design: The QCM gas sensor consists of a quartz crystal and two electrodes, making it a simple and durable device with few moving parts and low maintenance requirements.

Despite these advantages, there are some challenges associated with QCM gas sensors, such as the need for temperature control and the potential for interference from other gases. However, ongoing research is aimed at addressing these limitations and further improving the performance of QCM gas sensors.

Potential Applications of QCM Gas Sensors

Due to their high sensitivity, fast response time, and low power consumption, QCM gas sensors have a wide range of potential applications across various industries:

1. Environmental monitoring: QCM gas sensors can be employed to monitor air quality, detect hazardous gases, and measure greenhouse gas emissions, contributing to improved environmental protection and public health.
2. Industrial process control: In industries such as petrochemicals, semiconductor manufacturing, and food processing, QCM gas sensors can be used to monitor gas concentrations, ensuring efficient and safe operations.
3. Medical diagnostics: Breath analysis using QCM gas sensors has the potential to detect volatile organic compounds (VOCs) associated with various diseases, offering a non-invasive diagnostic method for early detection and monitoring of illnesses.
4. Security and safety: QCM gas sensors can be used for detecting explosive or toxic gases, providing early warning systems in high-risk environments such as chemical plants, mining operations, and transportation hubs.

Future Developments in QCM Gas Sensor Technology

As research into QCM gas sensors continues, several areas of development hold promise for enhancing their performance and expanding their application potential:

• Advanced sensing materials: The development of new sensing materials with improved selectivity and sensitivity will enhance the performance of QCM gas sensors, enabling them to detect a wider range of gases with greater accuracy.
• Temperature control and compensation: Improved methods for temperature control and compensation will allow QCM gas sensors to maintain high performance in fluctuating environmental conditions, increasing their versatility and reliability.
• Integration with other sensing technologies: Combining QCM gas sensors with other sensing technologies, such as optical sensors or electrochemical sensors, may improve the overall accuracy and selectivity of gas detection systems.
• Internet of Things (IoT) integration: Incorporating QCM gas sensors into IoT networks will enable real-time monitoring and data analysis, providing valuable insights for environmental management, industrial process optimization, and public health initiatives.

In conclusion, quartz crystal microbalance (QCM) gas sensors offer a high-precision sensing technology with numerous advantages over traditional gas sensing methods. As research continues to overcome current limitations and expand the capabilities of QCM gas sensors, their potential applications across various industries will continue to grow, contributing to a safer, healthier, and more sustainable future.
