Surface Acoustic Wave (SAW) Gas Sensors: An Overview

Introduction

Surface Acoustic Wave (SAW) technology has emerged as an innovative and effective approach for detecting and measuring gas concentrations in various applications. SAW gas sensors are known for their high sensitivity, rapid response time, and low power consumption, making them an attractive choice for both industrial and environmental monitoring. In this article, we will explore the working principles, advantages, and potential applications of SAW gas sensors.

Working Principles of SAW Gas Sensors

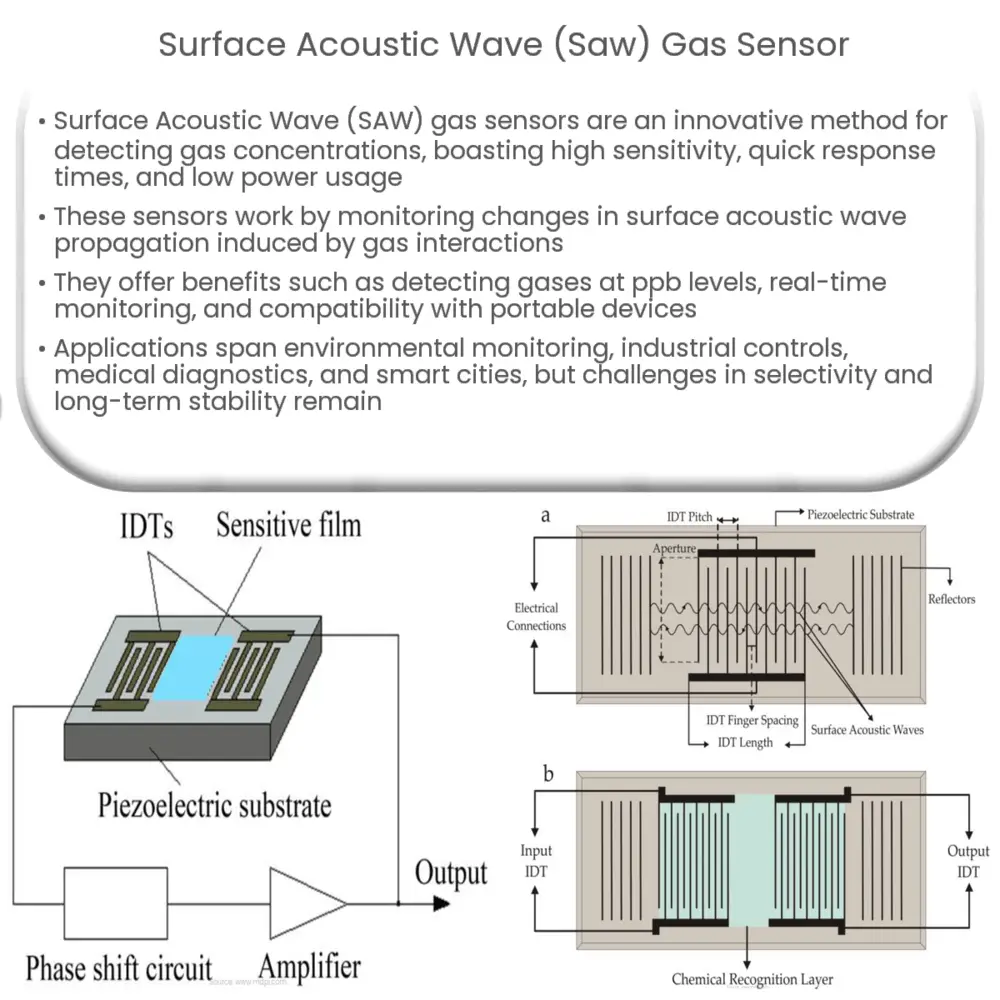

SAW gas sensors are based on the principle of surface acoustic wave propagation. These sensors consist of a piezoelectric substrate, typically made of materials like quartz or lithium niobate, with interdigital transducers (IDTs) deposited on the surface. The IDTs generate and receive the surface acoustic waves, which propagate along the surface of the substrate.

When a gas comes into contact with the sensor’s surface, it induces a change in the physical properties of the substrate, such as mass or conductivity. This change affects the propagation of the surface acoustic wave, leading to variations in the sensor’s output signal. By monitoring these changes, it is possible to determine the type and concentration of the gas present in the environment.

SAW gas sensors can be further classified into two main types: delay line and resonator. In delay line sensors, the output signal is directly affected by the gas-induced changes in the wave’s propagation velocity, while in resonator sensors, these changes alter the resonant frequency of the device. Both types of sensors can provide valuable information about the gas concentration, but their specific performance characteristics and applications may differ.

Advantages of SAW Gas Sensors

SAW gas sensors offer several advantages over traditional gas detection technologies. Some of the most notable benefits include:

• High sensitivity: SAW sensors are capable of detecting trace amounts of gas, down to parts per billion (ppb) levels, making them suitable for monitoring low-concentration gases in various environments.
• Fast response time: The rapid propagation of surface acoustic waves allows SAW sensors to respond quickly to changes in gas concentration, typically in the range of milliseconds to seconds. This enables real-time monitoring and control in critical applications.
• Low power consumption: As SAW sensors rely on the propagation of acoustic waves, they consume significantly less power than conventional gas detection technologies. This makes them ideal for remote, battery-powered, or energy-harvesting applications.
• Compact size and lightweight: Due to their small form factor and lightweight design, SAW sensors can be easily integrated into portable devices or embedded systems for continuous gas monitoring.
• Wide range of detectable gases: By modifying the surface properties of the substrate, SAW sensors can be tailored to detect a wide variety of gases, including volatile organic compounds (VOCs), toxic gases, and greenhouse gases.

Potential Applications of SAW Gas Sensors

Given their unique advantages, SAW gas sensors have found applications in various industries and settings. Some of the most prominent applications include:

• Environmental monitoring: SAW sensors can be used to detect and monitor air pollution levels, including hazardous gases and VOCs, in both indoor and outdoor environments. This can help to ensure public health and safety, as well as regulatory compliance.
• Industrial process control: Real-time gas detection and monitoring in industrial processes, such as chemical manufacturing and petrochemical facilities, can help to optimize production efficiency, reduce emissions, and prevent accidents caused by gas leaks or hazardous concentrations.
• Automotive emissions monitoring: SAW sensors can be integrated into vehicle exhaust systems to monitor and control emissions, contributing to improved air quality and compliance with increasingly stringent emissions standards.
• Medical and healthcare: SAW gas sensors can be used to detect and analyze gases in breath samples, enabling non-invasive diagnostics and monitoring of various medical conditions, such as asthma, chronic obstructive pulmonary disease (COPD), and diabetes.
• Smart cities and buildings: By incorporating SAW gas sensors into the Internet of Things (IoT) networks, air quality and safety can be continuously monitored and managed within smart cities and buildings, enhancing overall quality of life for residents.

Challenges and Future Outlook

Despite their numerous advantages and potential applications, SAW gas sensors still face some challenges that must be addressed in order to realize their full potential. Key challenges include:

• Selectivity: While SAW sensors can be tailored to detect specific gases, achieving high selectivity in the presence of multiple interfering gases remains a challenge. Research is ongoing to develop novel materials and surface modifications that can improve the selectivity of SAW sensors.
• Long-term stability: Ensuring the long-term stability and reliability of SAW sensors in harsh environments or under continuous exposure to target gases is crucial for their practical implementation. Further research and development efforts are needed to enhance the durability and robustness of these sensors.
• Cost and scalability: While SAW sensors offer several benefits, their fabrication and deployment on a large scale can be costly. Efforts to reduce production costs and develop scalable manufacturing processes are essential for widespread adoption of SAW gas sensing technology.

In conclusion, SAW gas sensors have emerged as a promising technology for detecting and measuring gas concentrations in various applications. With continued research and development, it is expected that SAW sensors will become an integral part of our daily lives, contributing to improved safety, health, and environmental sustainability.
