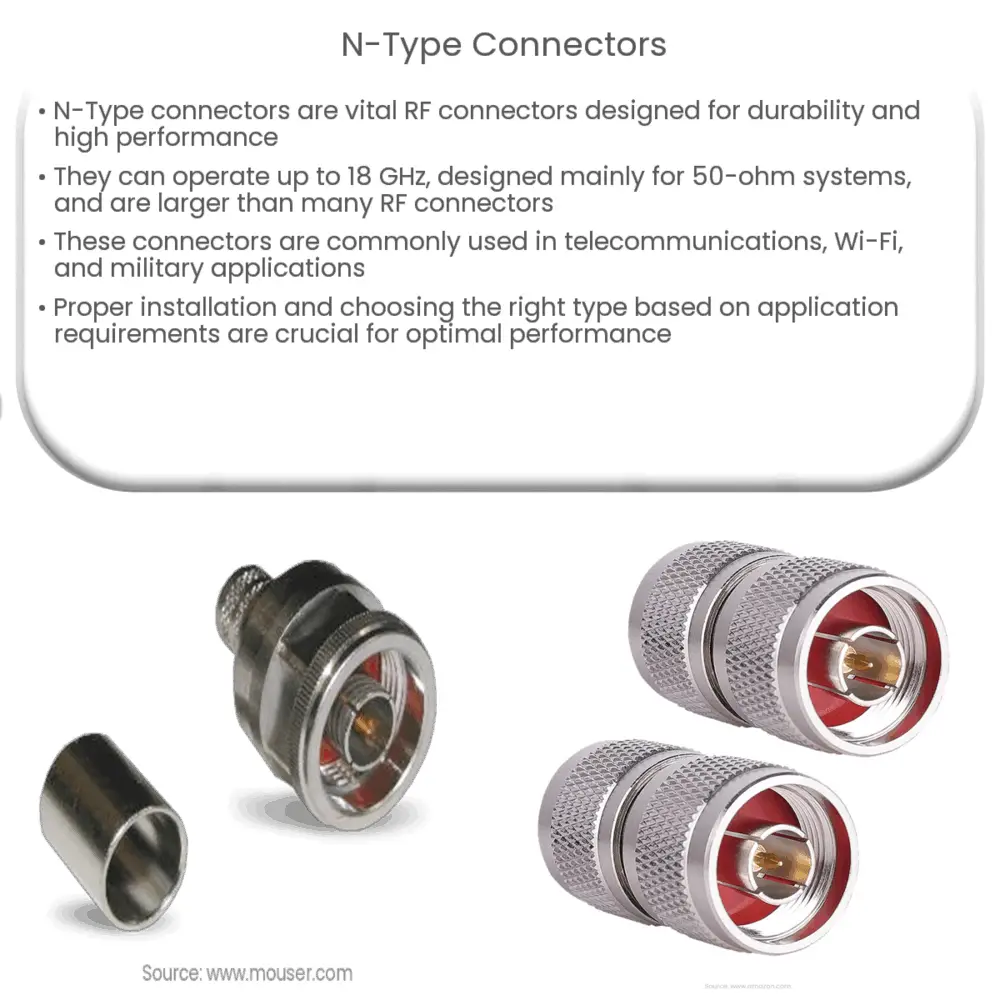

N-Type Connectors

Explore the design, features, applications, types, and selection criteria of N-Type connectors in our comprehensive guide.

Understanding N-Type Connectors

The world of electronics is filled with an array of connectors, each specifically designed for different applications. One such vital connector is the N-type connector, a type of radio frequency (RF) connector used to connect coaxial cables. Coined by Paul Neill of Bell Labs in the 1940s, the ‘N’ in N-type connector stands for Neill.

Design and Construction

N-Type connectors are crafted for durability and high performance. They are built to withstand harsh environmental conditions and deliver reliable connections for data and signal transmission. The construction of these connectors involves the use of robust materials such as brass or stainless steel for the body, with the connectors often being nickel or silver-plated. The insulation is typically a dielectric material like PTFE.

Key Features

The N-type connectors are widely admired for their several distinctive features. Some of these are:

Frequency Range: These connectors can operate up to 11 GHz, with some specially designed versions able to function up to 18 GHz.

Impedance: They are typically designed for 50-ohm systems but 75-ohm versions are also available for specific applications.

Size: N-Type connectors are relatively large compared to many other types of RF connectors.

Applications

N-Type connectors find widespread use in many areas, particularly where high power or precise RF connectivity is required. These sectors include:

Telecommunications: They’re commonly used in cellular and mobile communication systems, base stations, and antenna applications.

Wireless systems: In Wi-Fi systems, N-Type connectors are often used for outdoor antennas that require weatherproof connections.

Industrial and military applications: Given their ruggedness and reliability, these connectors are used in radar systems, GPS devices, and satellite communications.

Installation

While N-Type connectors are designed for durability and high performance, their effectiveness greatly depends on proper installation. The installation process is straightforward but requires attention to detail to ensure optimal performance. The assembly involves stripping the cable, positioning the connector parts, and finally, screwing or crimping them together.

Types of N-Type Connectors

There are various types of N-Type connectors to cater to different needs. Some common ones include:

Male and Female Connectors: Male connectors (also known as plugs) have threads on the inside, whereas female connectors (or jacks) have threads on the outside.

Panel Mount Connectors: These are designed to be mounted directly onto a device or panel.

Bulkhead Connectors: These are essentially panel mount connectors but with extra length, allowing them to be mounted on thicker panels.

Right Angle Connectors: These have a right-angle bend, making them ideal for situations where space is limited.

Considerations when Choosing N-Type Connectors

Choosing the right N-Type connector requires consideration of various factors:

Frequency: Consider the frequency range of your application. N-Type connectors for higher frequency usage are often more expensive due to increased precision in their manufacturing.

Installation Method: Depending on your skill level and tools, you might prefer a crimp, clamp, or solder method of installation.

Gender and Polarity: Ensure you’re selecting the right gender (male or female) and polarity (standard or reverse) for your specific application.

Material: The material of the connector impacts its durability and performance. While brass connectors are common and cost-effective, stainless steel connectors offer superior corrosion resistance.

Conclusion

In conclusion, N-Type connectors have cemented their place in the world of electronics due to their durability, high-frequency performance, and versatility. Whether you’re installing a cellular base station, setting up an outdoor Wi-Fi antenna, or working with a radar system, N-Type connectors offer a reliable and high-performing solution. However, to ensure the best performance, it’s crucial to select the right type of N-Type connector considering the application’s requirements and follow the proper installation process.
