How do you improve the power factor of an electrical system?

Improve power factor by installing capacitor banks, using synchronous condensers, replacing induction motors, proper equipment sizing, and load management.

Improving the Power Factor of an Electrical System

Improving the power factor of an electrical system is vital for enhancing efficiency, reducing power losses, and lowering utility bills. This article will discuss the most common methods used to improve the power factor in electrical systems.

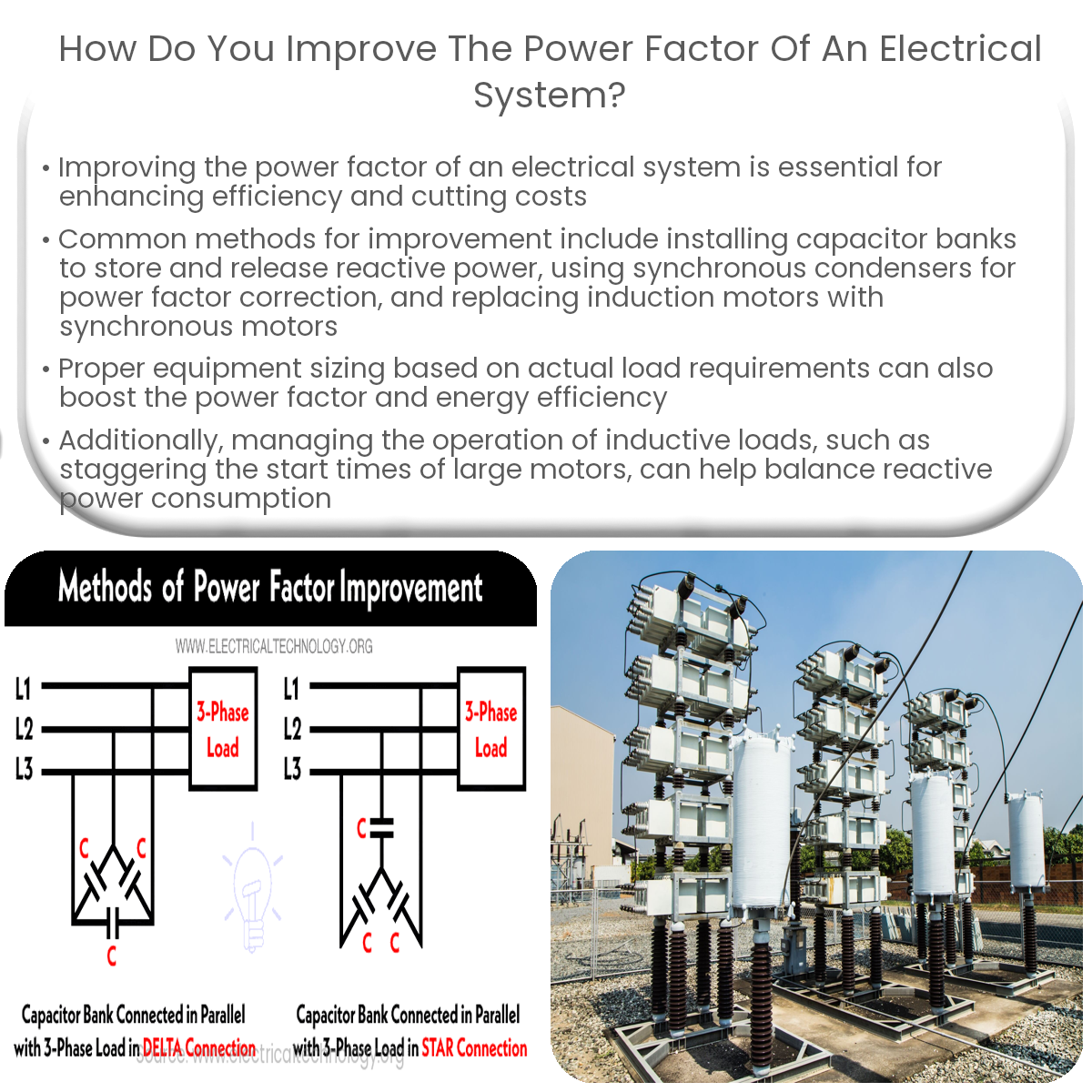

1. Installing Capacitor Banks

Capacitor banks are the most widely used method for power factor correction. They store reactive power and release it when required, compensating for inductive loads such as motors and transformers, which consume reactive power. By installing capacitor banks, the power factor is improved, resulting in reduced power losses and increased system capacity. Capacitors can be installed at various points in the system, such as at the main service entrance, near large inductive loads, or in distribution panels.

2. Using Synchronous Condensers

Synchronous condensers are rotating machines that operate similarly to synchronous motors but have no mechanical load. By adjusting their field excitation, synchronous condensers can generate or absorb reactive power, providing power factor correction. They offer several advantages, such as voltage regulation and short-circuit power support, and are particularly useful in large industrial plants or where voltage stability is critical.

3. Replacing Induction Motors with Synchronous Motors

Induction motors are commonly used in industrial applications but consume significant reactive power, leading to a low power factor. Replacing induction motors with synchronous motors, which can operate at unity or leading power factor, can improve the overall power factor of the electrical system. However, this method may involve higher initial costs and maintenance requirements.

4. Proper Equipment Sizing

Over-sizing electrical equipment, such as transformers and motors, can lead to a lower power factor. By selecting appropriately sized equipment for the actual load requirements, the power factor can be improved, and energy efficiency can be increased. Regularly reviewing and updating equipment as load requirements change can help maintain a high power factor.

5. Load Management

Managing the operation of inductive loads can contribute to power factor improvement. Strategies include staggering the start times of large motors, avoiding simultaneous operation of multiple large inductive loads, and using variable speed drives to control motor speeds based on load requirements. These measures can help balance the reactive power consumption and improve the overall power factor.

Conclusion

Improving the power factor of an electrical system is crucial for optimizing efficiency and reducing costs. Methods such as installing capacitor banks, using synchronous condensers, replacing induction motors with synchronous motors, properly sizing equipment, and managing load operation can significantly enhance the power factor and overall performance of your electrical system.
