Understanding ESD Grounding Kits
Electrostatic discharge (ESD) is a natural phenomenon that poses a serious threat to electronic devices and environments where these devices are handled. ESD grounding kits, which are essential elements of an effective ESD protection strategy, serve to safely direct the static charges to the ground, thereby protecting sensitive electronics from harmful ESD events. Let’s delve into the critical elements that make up these kits and understand how they function.

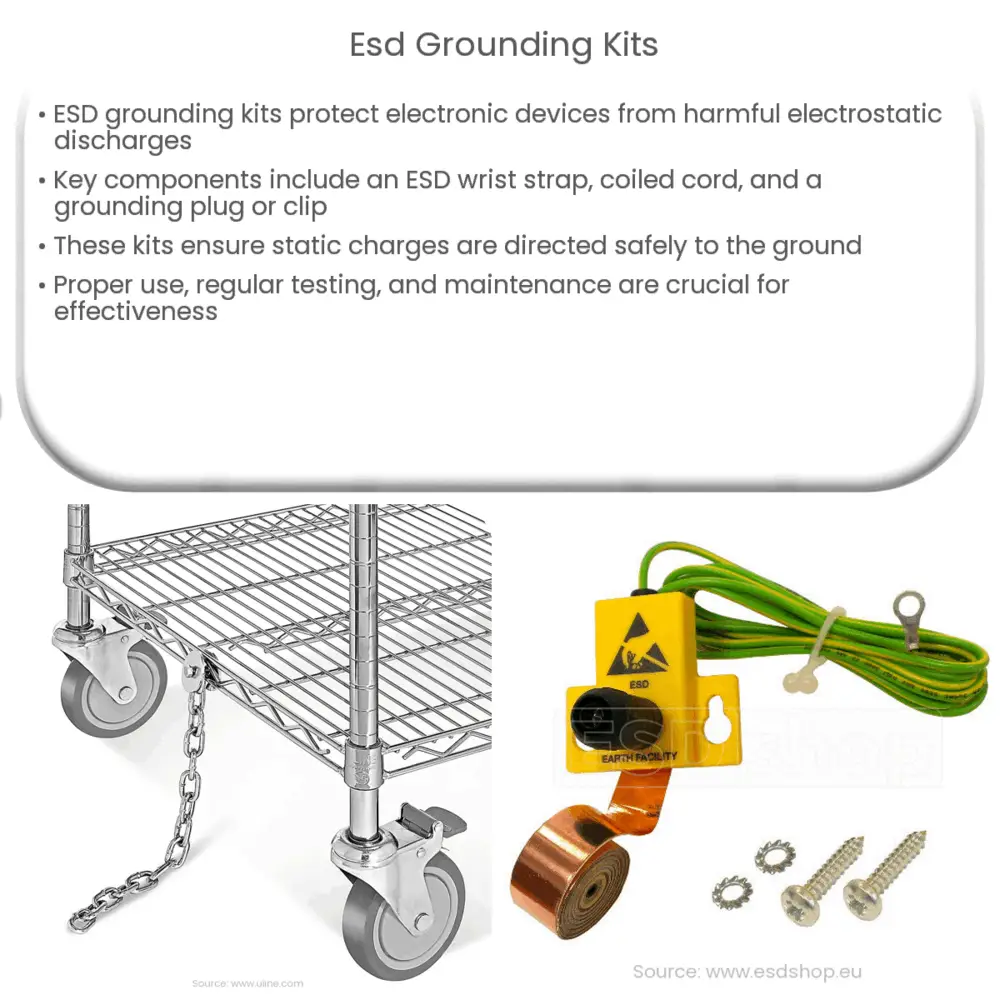

Components of an ESD Grounding Kit
- ESD Wrist Strap: This is a device worn on the wrist. It consists of a band of fabric with fine conductive fibers woven into it. The fibers contact the skin, allowing static electricity to pass from the person to the wrist strap.
- Coiled Cord: The coiled cord acts as a safe conduit for the static charge from the wrist strap to the grounding point. One end is attached to the wrist strap, while the other end is typically connected to a grounding source.
- Grounding Plug or Clip: This is the actual point of grounding. The grounding plug or clip connects the cord to a grounding source, such as an electrical outlet or an ESD mat.
Working Principle of ESD Grounding Kits
The main purpose of an ESD grounding kit is to create a path of least resistance for the static charge to flow safely to the ground. When a person wearing an ESD wrist strap touches an electrostatic-sensitive device, any static electricity present on their body is diverted through the coiled cord and grounding plug to a grounding point, thus preventing a potentially harmful ESD event. The electrical resistance of the ESD wrist strap and cord is carefully controlled to ensure that the discharge occurs slowly and safely.
Importance of ESD Grounding Kits in Various Industries
ESD grounding kits are crucial in many sectors, particularly those dealing with sensitive electronic components. Industries such as telecommunications, computing, medical device manufacturing, and aerospace are just a few examples where ESD grounding kits are in constant use. These industries place a high priority on ESD prevention because the financial and functional impacts of an ESD event can be significant.
Choosing the Right ESD Grounding Kit
When selecting an ESD grounding kit, several factors need to be considered. First and foremost, the resistance of the ESD wrist strap and coiled cord should fall within the standard range of 1MΩ to 10MΩ. This ensures a safe, slow discharge of static electricity. Secondly, the grounding plug or clip must be compatible with the available grounding source. Additionally, the durability and comfort of the wrist strap should also be taken into account, as this can affect the user’s compliance in wearing it.
Proper Use and Maintenance
- Correct Use: Proper use of an ESD grounding kit is critical for its effectiveness. Users should ensure that the wrist strap makes good contact with the skin and that the coiled cord is securely connected to the grounding plug or clip.
- Regular Testing: Regular testing of the grounding kit components is essential to verify their functionality. Tools such as ESD wrist strap testers can be used for this purpose.
- Maintenance: Regular maintenance including cleaning of the wrist strap and inspection for any damages is crucial to ensure long-lasting performance of the grounding kit.
Conclusion
In conclusion, ESD grounding kits play a pivotal role in mitigating the risks associated with electrostatic discharge. Their application spans across a broad spectrum of industries, protecting valuable electronic components from potential damage. From understanding the critical components to the correct usage and maintenance, it’s clear that ESD grounding kits are an essential tool in our increasingly digital world. By investing in high-quality ESD grounding kits and proper training in their use, businesses can safeguard their vital electronic assets, maintain operational efficiency, and ultimately save significant costs associated with ESD-related damages.
