Double-ended load cells are force transducers that provide accurate measurements for compressive forces in various applications, offering high precision and overload protection.

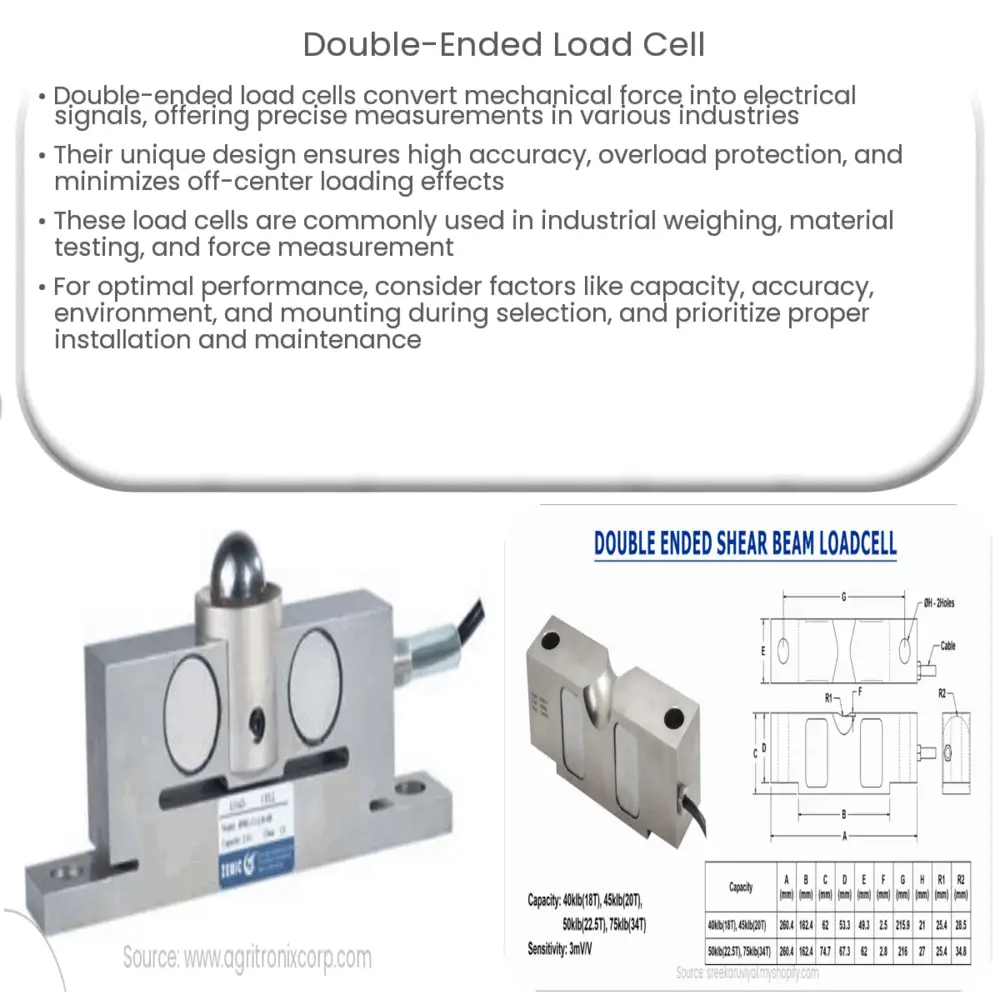

Double-Ended Load Cells: An Introduction

Overview

Load cells are a fundamental component in many industries, providing precise measurements for various applications such as weighing scales, force measurement, and tension monitoring. One of the many types of load cells available is the double-ended load cell. This article offers an in-depth look into double-ended load cells, their design, advantages, and typical applications.

What is a Double-Ended Load Cell?

A double-ended load cell is a type of force transducer that converts mechanical force into an electrical signal. It consists of two opposing ends designed to handle compressive forces, and a strain gauge at its center that measures the deformation caused by the force applied. The strain gauge generates an electrical signal proportional to the force, which is then used to provide accurate measurements.

Design and Working Principle

The design of a double-ended load cell consists of a central sensing element with strain gauges attached to its surface. Each end of the load cell is typically shaped as a spherical loading surface or a threaded rod end to ensure proper alignment during installation. This design allows for equal force distribution and a high level of accuracy when subjected to compressive forces.

When a force is applied to the double-ended load cell, the strain gauges experience deformation. This deformation changes the electrical resistance of the strain gauge, which in turn modifies the output voltage. The change in voltage is proportional to the applied force, and this relationship is used to calculate the force accurately.

Advantages of Double-Ended Load Cells

Double-ended load cells offer several benefits over other types of load cells, such as:

High Accuracy: The unique design of double-ended load cells ensures equal force distribution and minimal side load effects, resulting in precise measurements.
Overload Protection: Due to their robust construction, double-ended load cells can handle overloads up to 150% of their rated capacity without damage or loss of accuracy.
Resistance to Off-Center Loading: The double-ended design minimizes the effects of off-center loading, which can cause inaccuracies in measurement.
Easy Installation: The spherical loading surface or threaded rod ends allow for simple installation and alignment, reducing setup time and maintenance.

Common Applications

Double-ended load cells are used in a variety of industries and applications, including:

Industrial Weighing: They are frequently used in industrial weighing systems, such as silo, tank, and hopper scales, where high accuracy and stability are essential.
Material Testing: Double-ended load cells are used in material testing equipment to measure compressive forces accurately.
Force Measurement: These load cells are employed in various force measurement applications, including automotive and aerospace testing.

Selection Criteria for Double-Ended Load Cells

When choosing a double-ended load cell, several factors should be considered to ensure optimal performance:

Capacity: Select a load cell with a capacity suitable for the maximum force expected in your application. Consider potential overloads and choose a load cell with a capacity higher than the maximum anticipated force.
Accuracy: Determine the required accuracy for your application and choose a load cell with an accuracy class that meets or exceeds this requirement.
Environment: Consider the operating environment, including temperature, humidity, and potential exposure to chemicals or moisture. Select a load cell with appropriate environmental protection and materials to ensure longevity and accuracy in harsh conditions.
Mounting Configuration: Choose a load cell with the appropriate mounting configuration for your specific application. Ensure proper alignment and stability during installation.

Installation and Maintenance

Proper installation and maintenance of double-ended load cells are crucial to ensure accurate and reliable measurements. Some best practices include:

Alignment: Ensure that the load cell is properly aligned with the force direction to avoid side loads and off-center loading.
Mounting Surface: The mounting surface should be flat, rigid, and free of debris to minimize measurement errors.
Load Introduction: Use appropriate load introduction components, such as load buttons or load cell mounts, to ensure equal force distribution and accurate measurements.
Calibration: Regularly calibrate your load cell to maintain accuracy and reliability. Follow the manufacturer’s guidelines for calibration frequency and procedure.
Inspection: Routinely inspect the load cell for signs of wear, damage, or corrosion. Replace damaged components promptly to avoid measurement errors and potential failure.

Conclusion

Double-ended load cells are a versatile and robust solution for measuring compressive forces in various applications across multiple industries. Their unique design offers high accuracy, overload protection, and resistance to off-center loading. By considering factors such as capacity, accuracy, environment, and mounting configuration, you can select the ideal double-ended load cell for your specific application. Proper installation, calibration, and maintenance practices will ensure long-lasting performance and reliability.
