Current Sense Amplifiers

Explore the workings of Current Sense Amplifiers, their types, applications, and selection criteria. Discover their role in modern electronics.

Understanding Current Sense Amplifiers

Current Sense Amplifiers, often simply referred to as current sensors, are fundamental components in a plethora of modern electronics systems. They play a crucial role in amplifying the signal of the current flowing through a device, enabling precise measurement and control.

Role of Current Sense Amplifiers

Current Sense Amplifiers are designed to accurately detect and amplify the small voltage drop across a sensing element that is inline with the current path. The amplified signal is then fed into an analog-to-digital converter (ADC) or directly to a microcontroller for further processing. This is crucial in several applications such as overcurrent protection, battery management systems, power management and motor control.

Working Principle

Current Sense Amplifiers are typically designed around a high precision, low offset voltage operational amplifier. The voltage drop across the current sensing element (usually a shunt resistor) is amplified by this operational amplifier. The current sense amplifier can be configured in one of two ways:

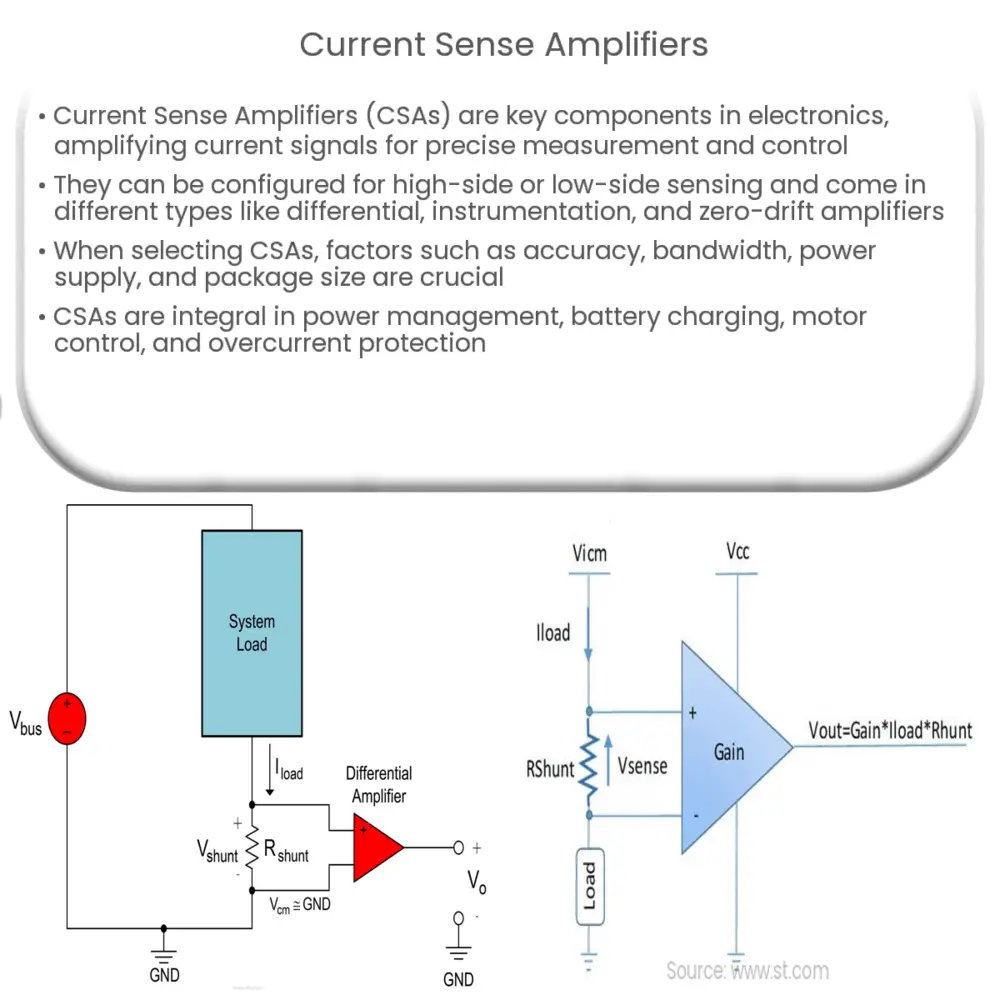

High-side sensing: This setup involves placing the sensing resistor between the supply voltage and the load. It is considered the superior method as it can detect both load short-circuits and open-circuits. However, it requires more complex circuitry.

Low-side sensing: In this configuration, the sensing resistor is placed between the load and ground. While this method is simpler and cheaper to implement, it is unable to detect load open-circuits.

Types of Current Sense Amplifiers

Based on their working and applications, current sense amplifiers can be broadly classified into the following categories:

Differential Amplifiers: These amplify the difference between two voltages making them ideal for high-side current sensing where the common-mode voltage usually varies.

Instrumentation Amplifiers: These are differential amplifiers with input buffer stages. They provide high input impedance, which is essential in certain applications.

Zero-Drift Amplifiers: These provide very low offset and offset drift, making them highly accurate over a wide range of temperatures.

Selection Criteria for Current Sense Amplifiers

There are several important factors to consider when choosing a current sense amplifier for a particular application:

Accuracy: The overall accuracy of a current sense amplifier is a critical aspect. It includes factors such as offset voltage, gain error, and temperature drift.

Bandwidth: Depending on the speed of the current change in your application, an amplifier with a suitable bandwidth should be selected.

Power Supply: The amplifier’s power supply range should match the system’s supply voltage.

Package Size: For space-constrained applications, package size may be a decisive factor.

Applications of Current Sense Amplifiers

Given their crucial role, current sense amplifiers find use in a wide range of applications. A few notable ones include:

Power Management: They monitor the current in power supply rails, ensuring energy-efficient operation.

Battery Chargers: In battery management systems, they monitor charging and discharging currents to prevent battery damage.

Motor Control: Current sense amplifiers are used to monitor motor phase currents for performance and safety reasons.

Overcurrent Protection: They provide crucial feedback to protect circuits from damaging overcurrent conditions.

Conclusion

In conclusion, current sense amplifiers are integral to the operation of numerous electronic systems. By accurately measuring and controlling current, they ensure that our devices and appliances operate efficiently and safely. As electronic systems become more complex and power management becomes more critical, the role of current sense amplifiers is set to become even more important. Whether it’s for high-side or low-side sensing, differential or zero-drift amplification, these components serve a crucial role in modern electronics, contributing to the reliable operation of everything from industrial machinery to handheld devices.
