A bolometer infrared sensor detects temperature changes due to absorbed infrared radiation, using a temperature-sensitive material to measure intensity.

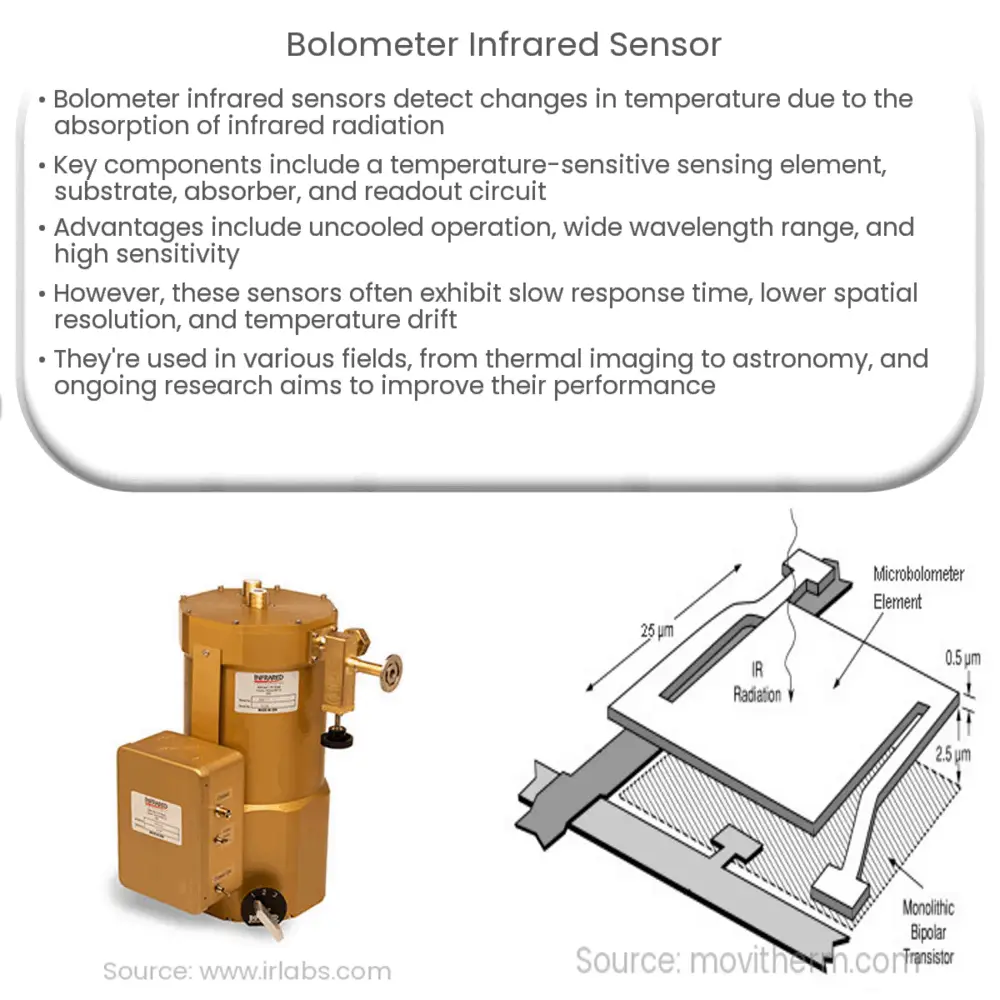

Bolometer Infrared Sensor: A Comprehensive Introduction

Understanding Infrared Radiation and Its Applications

Infrared (IR) radiation is a type of electromagnetic wave with wavelengths ranging from 700 nanometers (nm) to 1 millimeter (mm), which lies just beyond the visible light spectrum. Infrared sensors play a crucial role in various applications, such as remote sensing, medical diagnostics, night-vision systems, and temperature measurement. One of the most widely-used infrared sensors is the bolometer, which detects changes in temperature resulting from the absorption of incident infrared radiation.

Working Principle of a Bolometer Infrared Sensor

A bolometer infrared sensor works on the principle of measuring the change in resistance of a temperature-sensitive material when it absorbs incident infrared radiation. This material, known as the sensing element, is typically made of a thin layer of metal or semiconductor. The sensing element is connected to an electrical circuit, which can detect changes in resistance due to temperature fluctuations. When infrared radiation is absorbed by the sensing element, it heats up, causing a change in its resistance. This change is then measured and converted into an electrical signal proportional to the incident infrared radiation’s intensity.

Key Components of a Bolometer Infrared Sensor

A typical bolometer infrared sensor consists of the following key components:

• Sensing Element: A thin layer of metal or semiconductor that changes its resistance with temperature. Common materials used for the sensing element include vanadium oxide (VOx), amorphous silicon (a-Si), and titanium (Ti).
• Substrate: A material that supports the sensing element and provides mechanical stability. The substrate can be made of materials such as silicon or glass, depending on the sensor’s specific application and requirements.
• Absorber: A layer of material that is designed to efficiently absorb the incident infrared radiation and transfer the absorbed energy to the sensing element. Common absorber materials include gold, platinum, or other metals with high infrared absorption capabilities.
• Readout Circuit: An electronic circuit that measures the changes in resistance of the sensing element, converts them into an electrical signal, and amplifies the signal for further processing and analysis.

Advantages and Disadvantages of Bolometer Infrared Sensors

Bolometer infrared sensors offer several advantages over other types of infrared sensors, such as:

• Uncooled Operation: Unlike other infrared sensors that require cooling to reduce thermal noise and improve sensitivity, bolometers can operate at room temperature, reducing complexity and power consumption.
• Wide Wavelength Range: Bolometers can detect a broad range of infrared wavelengths, making them suitable for various applications.
• High Sensitivity: Bolometers are highly sensitive to changes in temperature, allowing for accurate detection of small temperature variations caused by the absorption of infrared radiation.

However, bolometer infrared sensors also have some disadvantages:

• Slow Response Time: Due to the thermal mass of the sensing element and the need for the temperature to stabilize before a measurement can be taken, bolometers generally have slower response times compared to other infrared sensors.
• Lower Spatial Resolution: Bolometers typically have a lower spatial resolution compared to other infrared sensors, such as photodetectors, due to the larger
  size of the sensing elements and the need for thermal isolation between adjacent pixels.
• Temperature Drift: The performance of a bolometer sensor can be affected by ambient temperature fluctuations, requiring additional temperature stabilization or calibration techniques to maintain accuracy.

Applications of Bolometer Infrared Sensors

Due to their versatility and unique characteristics, bolometer infrared sensors are employed in a wide range of applications, including:

• Thermal Imaging: Bolometers are commonly used in thermal imaging cameras to detect temperature differences in objects or scenes, enabling applications such as search and rescue, surveillance, and building inspections.
• Spectroscopy: Infrared spectroscopy uses bolometers to measure the absorption and emission of infrared radiation by different materials, providing valuable information about their molecular composition and structure.
• Astronomy: Bolometer sensors are utilized in ground-based and space-borne telescopes to detect and study the infrared radiation emitted by celestial bodies and distant galaxies, revealing valuable insights into the universe’s formation and evolution.
• Environmental Monitoring: Bolometers can be used in remote sensing applications to monitor various environmental parameters, such as surface temperature, vegetation health, and air quality, by analyzing the infrared radiation emitted by the Earth’s surface and atmosphere.
• Medical Diagnostics: Infrared imaging using bolometers has shown potential in non-invasive medical diagnostics, such as identifying inflammation, assessing blood flow, and detecting tumors.

Future Developments and Challenges

Despite their widespread use, bolometer infrared sensors still face several challenges that need to be addressed to further enhance their performance and expand their application scope. Some of these challenges include:

• Improving Sensitivity and Response Time: Ongoing research aims to develop new materials and sensing element designs to increase the sensitivity and response time of bolometer sensors, enabling more accurate and faster detection of infrared radiation.
• Reducing Temperature Drift: Developing advanced temperature stabilization and calibration techniques will help mitigate the effects of ambient temperature fluctuations on bolometer sensor performance, ensuring more consistent and accurate measurements.
• Increasing Spatial Resolution: Advances in microfabrication technologies and the development of new sensing element architectures can help increase the spatial resolution of bolometer sensors, enabling higher-resolution infrared imaging and analysis.

By addressing these challenges, bolometer infrared sensors will continue to play a vital role in various applications, contributing to scientific advancements, technological innovations, and improvements in human well-being.
