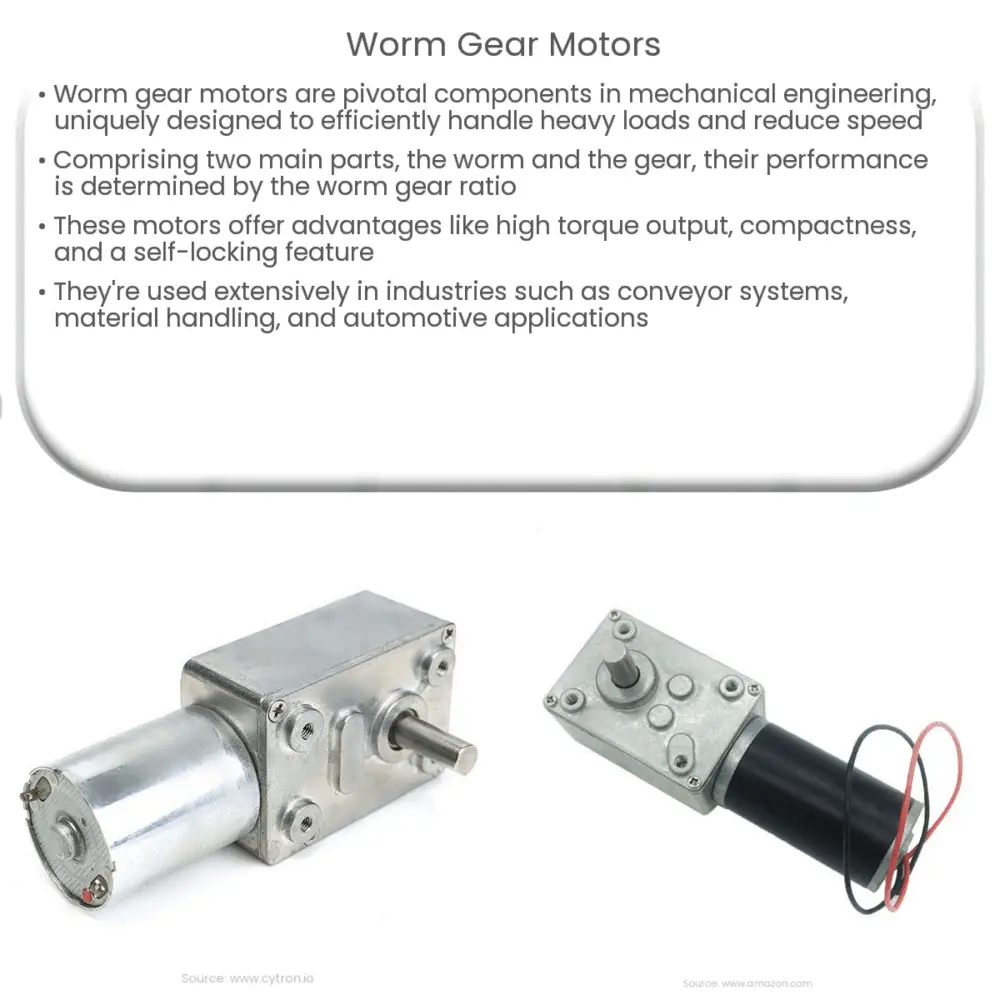

Worm Gear Motors

Dive into the workings of worm gear motors – their construction, advantages, applications, and how to select the right one for your needs.

Worm Gear Motors

Understanding Worm Gear Motors

The fascinating world of mechanical engineering brings forth a myriad of devices that significantly aid in motion control. Among these, one component that stands out due to its unique design and functionality is the worm gear motor. This motor holds a crucial role in various industries and applications, thanks to its unique ability to handle heavy loads and reduce speed efficiently. This article delves into the specifics of worm gear motors, discussing their construction, working principles, advantages, and applications.

Construction of Worm Gear Motors

A worm gear motor, as the name suggests, primarily consists of two main parts: the worm and the gear. The worm, a screw-like component, connects with the worm wheel or gear, a toothed wheel, to facilitate motion transfer. The worm is usually the driving element that, when turned, causes the gear to rotate.

This device is defined by its worm gear ratio, expressed as the ratio of the number of teeth on the gear (output) to the number of threads on the worm (input). This ratio is crucial in determining the speed and torque capabilities of the motor.

Working Principle of Worm Gear Motors

Understanding the operation of worm gear motors requires a clear grasp of its unique gearing mechanism. When the worm turns, its threads push against the teeth of the gear, causing it to rotate. Notably, while the worm can drive the gear, the reverse—i.e., the gear driving the worm—is practically impossible due to the angle and friction between the two components. This characteristic makes worm gear motors inherently self-locking, an attribute we’ll further explore in subsequent sections.

Advantages of Worm Gear Motors

  1. High Torque: Owing to their unique design, worm gear motors can generate high torque, making them suitable for heavy load applications.
  2. Compact Size: Despite their high torque capabilities, worm gear motors are remarkably compact, allowing for easy installation and use in space-constrained applications.
  3. Self-Locking Feature: As mentioned, the design of worm gears makes them self-locking. This means they can hold their position even when the power is off, providing an additional safety feature in many applications.

Applications of Worm Gear Motors

Given their robust design and capabilities, worm gear motors find application in a wide range of industries. Here are a few noteworthy instances:

  • Conveyor Systems: Their ability to handle heavy loads and provide high torque makes them ideal for use in conveyor systems, particularly those in manufacturing and distribution facilities.
  • Material Handling: In addition to conveyor systems, worm gear motors are widely used in various material handling equipment such as cranes, lifts, and hoists.
  • Automotive Industry: These motors are employed in a variety of automotive applications, from power windows to steering systems, thanks to their compact size and high torque output.

Choosing the Right Worm Gear Motor

When selecting a worm gear motor for a specific application, several factors come into play. First and foremost, the gear ratio is crucial to determine the right balance between speed and torque. Additionally, the motor’s size and design need to fit the physical constraints of the application. Lastly, the durability and resistance of the motor to various operating conditions—like temperature fluctuations and environmental factors—are essential to ensure long-term reliability and performance.

Conclusion

In conclusion, worm gear motors present a versatile and effective solution for a range of motion control requirements. Their unique design offers a combination of high torque output, compact size, and a self-locking feature, making them a preferred choice for several industrial applications. By understanding their operation and the key factors to consider when selecting a worm gear motor, businesses can significantly improve their equipment’s performance and efficiency. As technology continues to evolve, further advancements in worm gear motor design and functionality are anticipated, offering even more benefits for various industrial sectors.
