Introduction to Wheatstone Bridge
The Wheatstone Bridge is a precise electrical circuit used to measure unknown electrical resistance by balancing two legs of a bridge circuit. Invented by Samuel Hunter Christie in 1833 and popularized by Sir Charles Wheatstone, this method has widespread applications in scientific and industrial instrumentation.
Structure and Components

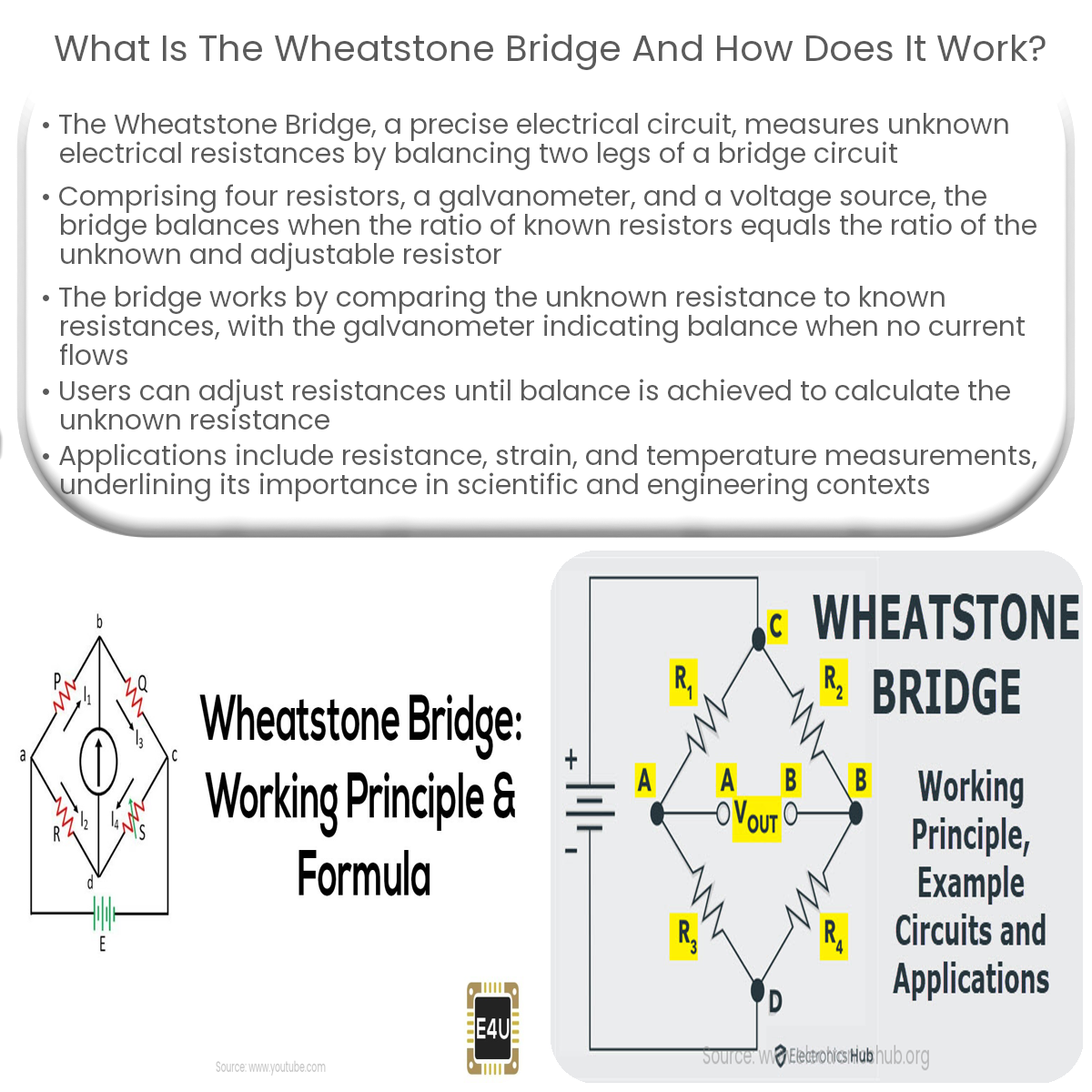

The Wheatstone Bridge consists of four resistors arranged in a diamond shape, with one unknown resistor. The bridge is balanced when the ratio of the known resistors is equal to the ratio of the unknown resistor and the adjustable resistor. The circuit also includes a galvanometer and a voltage source.
How the Wheatstone Bridge Works
The bridge works on the principle of comparing the unknown resistance to known resistances in a balanced circuit. In a balanced condition, the ratio of resistances in one leg is equal to the ratio in the other leg. Mathematically, this can be represented as:
R1 / R2 = R3 / Rx
Where R1, R2, and R3 are known resistances, and Rx is the unknown resistance. The galvanometer is connected between the junctions of the two legs, and its primary function is to detect any current flowing through it. When the bridge is balanced, the galvanometer shows zero current.
Adjusting the Bridge
Initially, the bridge may not be balanced, resulting in current flow through the galvanometer. The user can adjust the known resistances, typically using a variable resistor (potentiometer) until the galvanometer reads zero. When balanced, the unknown resistance can be calculated using the aforementioned equation.
Applications of Wheatstone Bridge
- Resistance Measurement: The primary application of the Wheatstone Bridge is to accurately measure unknown resistances in various fields.
- Strain Gauge: In conjunction with strain gauges, the Wheatstone Bridge is used to measure mechanical strain and stress on materials.
- Temperature Measurement: By incorporating temperature-sensitive resistors (thermistors or RTDs), the bridge can be used for precise temperature measurements.
In conclusion, the Wheatstone Bridge is an indispensable tool for measuring unknown resistances with high precision. Its ability to provide accurate measurements has made it a staple in many scientific and engineering applications.
