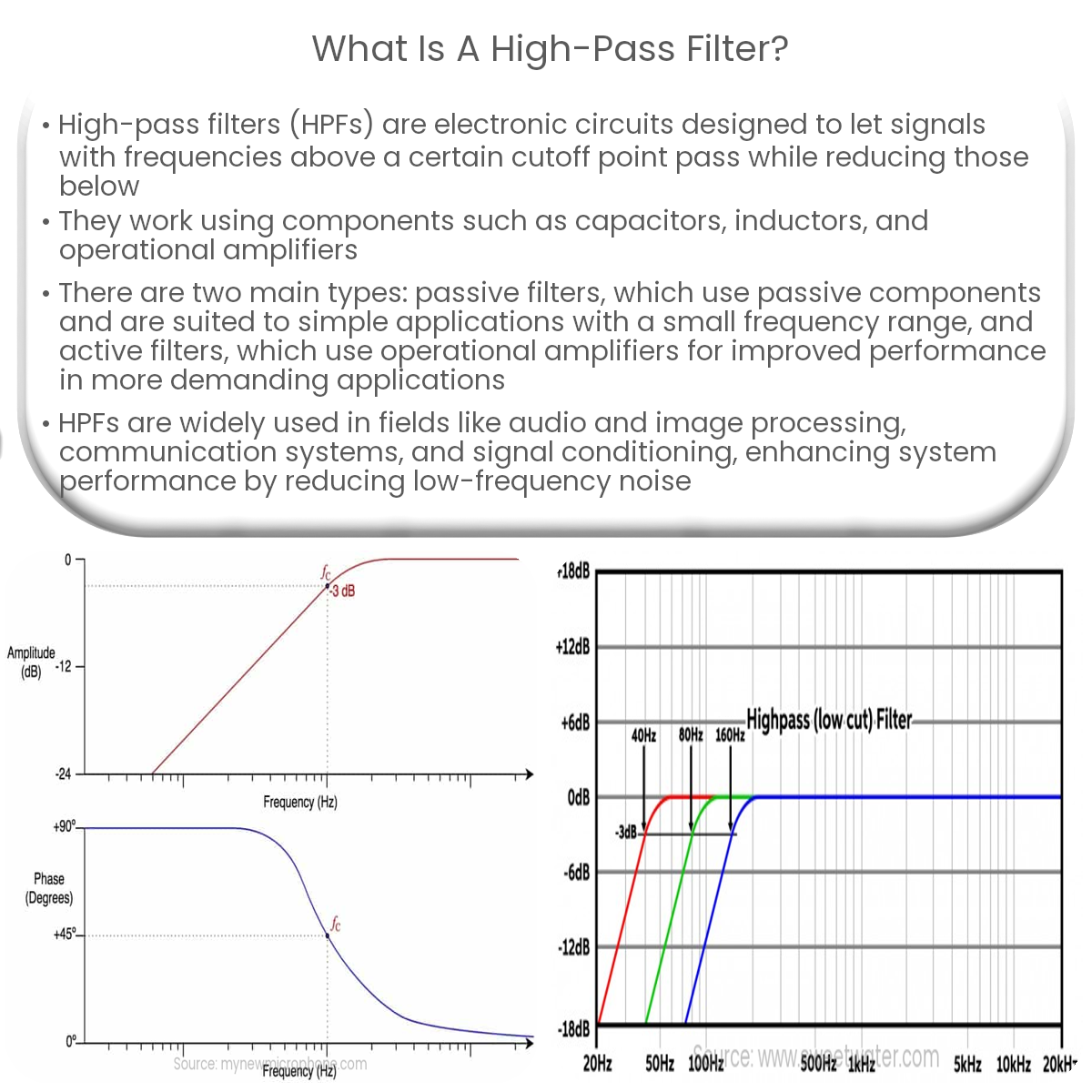

What is a high-pass filter?

A high-pass filter is an electronic circuit that allows signals above a certain frequency to pass while attenuating lower frequency signals.

Introduction to High-Pass Filters

A high-pass filter (HPF) is an electronic circuit designed to allow signals with frequencies above a specific cutoff frequency to pass through, while attenuating signals with frequencies below the cutoff. This type of filter is widely used in audio, communication, and signal processing applications.

Working Principle of High-Pass Filters

High-pass filters work by using capacitors and inductors, or active components such as operational amplifiers, to differentiate between high and low-frequency signals. In a simple passive RC high-pass filter, a resistor (R) and capacitor (C) are connected in series, with the output taken across the capacitor. As the frequency of the input signal increases, the reactance of the capacitor decreases, allowing more of the signal to pass through.

Types of High-Pass Filters

There are two main types of high-pass filters:

Passive High-Pass Filters: These filters utilize passive components, such as resistors, capacitors, and inductors, and do not require external power sources. Passive filters are often used in simple applications where the signal attenuation is not critical, and the required frequency range is relatively small.

Active High-Pass Filters: Active filters use operational amplifiers in conjunction with passive components to achieve better performance, sharper cutoffs, and improved frequency response. These filters require an external power source and are suitable for more demanding applications.

Applications of High-Pass Filters

High-pass filters find applications in various fields, such as:

Audio processing: In audio systems, high-pass filters are used to remove low-frequency noise and hum, allowing higher frequencies to pass through, which enhances the clarity of the sound.

Communication systems: HPFs are used in radio receivers to eliminate low-frequency interference and allow only the desired high-frequency signals to be processed.

Image processing: In digital image processing, high-pass filters are employed to sharpen images by enhancing the edges and fine details.

Signal conditioning: High-pass filters can be used in instrumentation and control systems to eliminate unwanted low-frequency noise, improving the overall performance of the system.

In conclusion, high-pass filters play a vital role in various electronic applications by allowing high-frequency signals to pass while attenuating lower frequencies, ultimately improving the quality and performance of the system.
