Transformers transfer electrical energy between circuits by changing voltage levels without altering frequency, using electromagnetic induction.
Introduction to Transformers
Transformers are electrical devices that transfer electrical energy between two or more circuits by changing the voltage levels without altering the frequency. They are essential components in power distribution systems and are used in various applications, such as power supplies, audio systems, and industrial equipment.

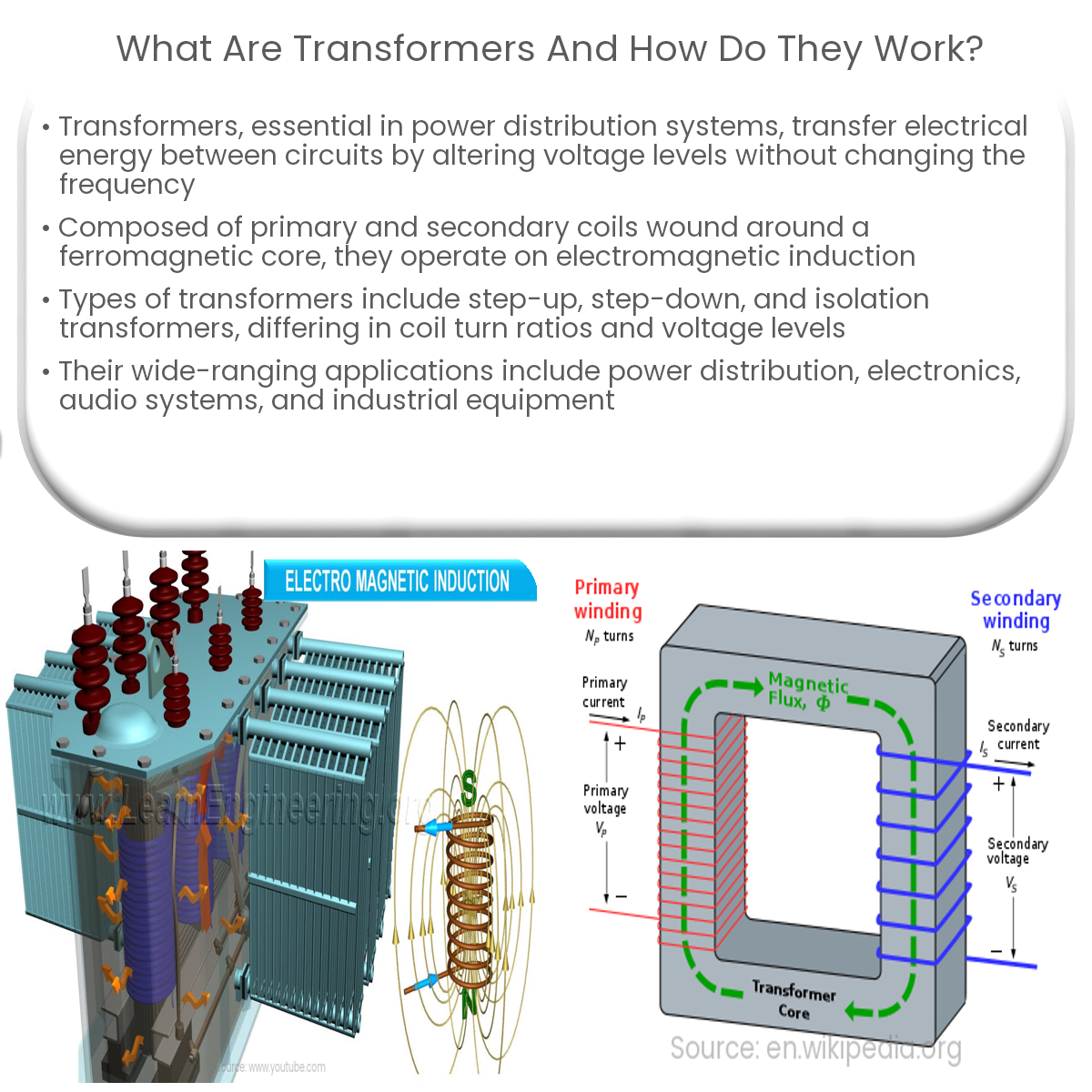

Basic Structure of Transformers
A transformer consists of two main components: a primary coil and a secondary coil. These coils are wound around a common core made of ferromagnetic material, such as iron or ferrite. The primary coil receives the input voltage, and the secondary coil produces the output voltage. The core facilitates the transfer of energy between the coils through electromagnetic induction.
Working Principle of Transformers
Transformers operate on the principle of electromagnetic induction. When an alternating current (AC) flows through the primary coil, it generates a changing magnetic field around the core. This magnetic field, in turn, induces a voltage in the secondary coil, which produces an output current. The ratio of the number of turns in the primary coil to the number of turns in the secondary coil determines the change in voltage levels.
Types of Transformers
- Step-up Transformers: These transformers increase the voltage level from the primary coil to the secondary coil. They have more turns in the secondary coil than the primary coil.
- Step-down Transformers: These transformers decrease the voltage level from the primary coil to the secondary coil. They have fewer turns in the secondary coil than the primary coil.
- Isolation Transformers: These transformers have the same number of turns in both the primary and secondary coils. They maintain the same voltage levels but provide electrical isolation between the input and output circuits.
Applications of Transformers
- Power Distribution: Transformers play a crucial role in transmitting electrical energy from power plants to homes and businesses. They step up the voltage for efficient long-distance transmission and step down the voltage for safe utilization.
- Electronics: Transformers are used in power supplies to provide the appropriate voltage levels for various electronic devices.
- Audio Systems: Audio transformers are used to match impedance levels and isolate audio signals in microphones, speakers, and amplifiers.
- Industrial Equipment: Transformers are used in various industrial applications, such as welding machines, motor control circuits, and lighting systems.
