Understanding Voice Coils
The term ‘voice coil’ might seem perplexing to the uninitiated. However, it’s a simple concept deeply rooted in the world of audio technology. The role of a voice coil is critical to the way our speakers, headphones, and other audio devices function.
A Basic Introduction

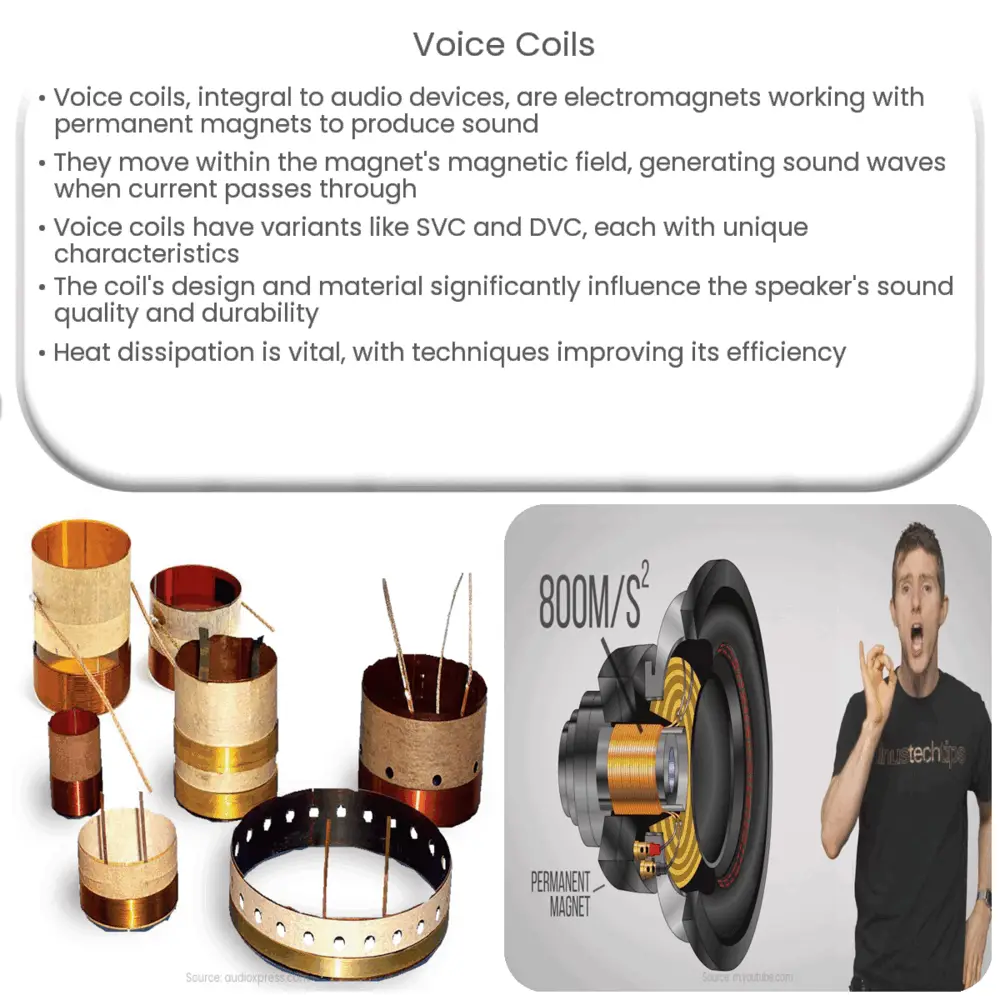

At its simplest, a voice coil is an electromagnet that works in tandem with a permanent magnet to generate sound. It’s a coil of wire that’s wrapped around a cylinder, or “former,” made from lightweight and non-magnetic material.
The voice coil resides in the magnetic field of a permanent magnet affixed inside the speaker. When an electric current (audio signal) passes through the voice coil, it generates a magnetic field. The interaction between this field and the field of the permanent magnet results in a force that moves the coil, which then moves the speaker cone connected to it. This movement creates pressure waves in the air, which we perceive as sound.
Components and Construction
- Former: The former is the structure around which the wire of the voice coil is wound. This piece must be both heat-resistant and rigid, as it needs to withstand the heat generated by the coil and transfer the movement efficiently to the speaker cone.
- Wire: The wire used in voice coils can vary. While copper is the most common choice due to its good electrical conductivity, other materials like aluminum or CCA (Copper Clad Aluminum) may be used. These materials bring different properties affecting the overall performance of the speaker.
- Magnet: The voice coil operates within the magnetic field of a permanent magnet. Traditionally, ferrite magnets were common, but neodymium magnets are often used in modern speakers for their high magnetic strength and lighter weight.
Varieties of Voice Coils
Voice coils come in several types, each with its own characteristics. The most common types are the single voice coil (SVC) and dual voice coil (DVC). SVCs are the traditional model, typically offering lower power handling but simpler wiring configurations. DVCs, on the other hand, offer higher power handling and more wiring options, which can increase the system’s flexibility.
Another variation is the overhung and underhung voice coil designs. These refer to the size of the voice coil in relation to the magnetic gap where it resides. The overhung design has a larger coil, which allows for more excursion but might result in distortion at high levels. The underhung design is often used in high-end speakers for its superior linearity, but it limits the speaker’s excursion.
Understanding Voice Coil Impedance
One crucial characteristic of voice coils is impedance, often labeled as ‘Z’ or measured in ohms (Ω). The impedance of a speaker represents the amount of resistance it offers to the audio signal. A speaker with lower impedance will require more current to produce the same volume as a speaker with higher impedance.
Common impedance values range from 4Ω to 8Ω for home audio and higher for professional audio equipment. It’s essential to match the speaker’s impedance with the amplifier’s output impedance for optimal performance.
Heat Dissipation
Another critical aspect of voice coils is heat dissipation. As the voice coil moves, electrical energy is converted into kinetic energy, and some of this energy is inevitably lost as heat. Excessive heat can cause the voice coil to deform or, in extreme cases, burn out completely.
Various techniques and materials are used to improve heat dissipation. These include vented formers, high-temperature wires, and ferrofluids, which not only help cool the voice coil but also lubricate the gap where the voice coil moves.
The Importance of Voice Coils in Audio Quality
The design and quality of a voice coil can significantly impact the audio quality of a speaker. As it’s the moving part responsible for generating sound, precision and reliability in its operation are paramount. Factors like the type and gauge of wire, the former material, the design of the coil, and the way it’s wound can all contribute to the sound quality, power handling, and longevity of the speaker.
Conclusion
In conclusion, the voice coil plays a crucial role in audio reproduction. This simple yet sophisticated technology is at the heart of most audio devices we use every day. Its design and execution significantly influence the sound’s fidelity and quality. Understanding voice coils can help you make more informed decisions about your audio equipment, whether you’re choosing a speaker for your home theater, a set of headphones, or professional audio gear.
As technology advances, we can expect new materials and designs to continue pushing the boundaries of what is possible with voice coils, driving us towards even better audio experiences.
