Vacuum Diode: A Brief Overview
Introduction
A vacuum diode is a two-terminal electronic device that allows the flow of electric current in a single direction. It has played a significant role in the history of electronics, paving the way for modern semiconductor diodes. This article provides an in-depth look at the vacuum diode, its construction, working principle, and applications.
History and Invention
The vacuum diode was invented by Sir John Ambrose Fleming in 1904. He was inspired by the work of Thomas Edison, who had observed an interesting phenomenon called the Edison effect. Edison found that electrons emitted from a heated filament in a vacuum could flow to a nearby electrode, forming the basis of the vacuum diode. Fleming’s invention, known as the Fleming Valve, was the first practical application of the vacuum diode and marked a turning point in the development of electronic devices.

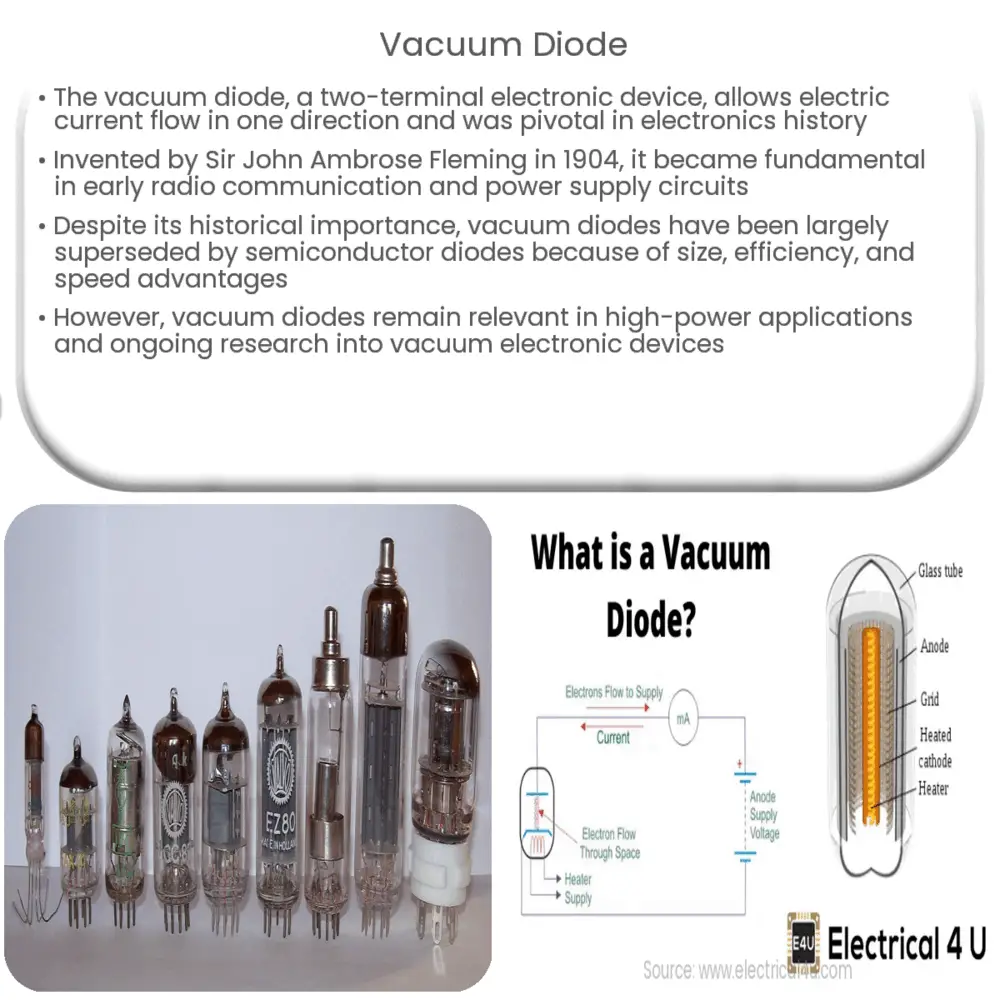

Construction
The vacuum diode consists of two electrodes: the cathode and the anode (or plate). These are enclosed in an evacuated glass envelope to create a vacuum. The cathode is a filament or a coated wire that emits electrons when heated. This process is called thermionic emission. The anode is typically made of a metal plate, which is placed at a certain distance from the cathode.
Working Principle
When a voltage is applied to the vacuum diode, the cathode is heated, and electrons are emitted. The emitted electrons are attracted towards the positively charged anode, creating a flow of electric current. Due to the vacuum, there are no gas molecules or atoms present that could impede the movement of electrons, allowing for efficient electron flow between the cathode and anode.
If the polarity of the applied voltage is reversed, the anode becomes negatively charged, and the cathode becomes positively charged. In this scenario, the anode no longer attracts the emitted electrons, and the flow of electric current stops. This phenomenon, known as rectification, demonstrates the vacuum diode’s ability to allow electric current flow in only one direction, making it a crucial component in various electronic circuits.
Applications
Vacuum diodes were widely used in early electronics, particularly in radio communication devices and power supply circuits. They served as rectifiers, converting alternating current (AC) to direct current (DC), and played a critical role in the development of electronic devices such as vacuum tube amplifiers and oscillators.
Although vacuum diodes have largely been replaced by semiconductor diodes in modern electronics due to their superior performance and smaller size, they still have niche applications in high-power and high-voltage systems where their unique properties can be advantageous.
In the second part of this article, we will explore the limitations of vacuum diodes, their comparison to semiconductor diodes, and their role in shaping the future of electronics.
Part 2: Limitations, Comparison, and Future of Vacuum Diodes
Limitations of Vacuum Diodes
Despite their historical importance, vacuum diodes have certain limitations compared to semiconductor diodes. Some of these limitations include:
- Size: Vacuum diodes are larger and bulkier than their semiconductor counterparts, making them less suitable for miniaturized electronic devices.
- Power consumption: Vacuum diodes require heating of the cathode, leading to higher power consumption and reduced energy efficiency.
- Switching speed: The thermionic emission process in vacuum diodes is slower than the solid-state process in semiconductor diodes, resulting in slower switching speeds and reduced performance in high-frequency applications.
- Reliability: Vacuum diodes have a limited lifespan due to filament wear and degradation, whereas semiconductor diodes can last much longer with proper use and care.
Comparison to Semiconductor Diodes
While vacuum diodes were a crucial stepping stone in the evolution of electronics, semiconductor diodes have largely replaced them in modern applications. Semiconductor diodes offer several advantages over vacuum diodes, such as smaller size, faster switching speeds, lower power consumption, and increased reliability.
Semiconductor diodes are made from materials like silicon, germanium, or gallium arsenide, which exhibit unique properties when doped with specific impurities. These materials allow for the creation of p-n junctions, where the flow of electric current can be precisely controlled. This level of control has enabled the development of various semiconductor devices, including transistors, integrated circuits, and microprocessors, leading to the widespread use of semiconductor diodes in contemporary electronics.
Future of Vacuum Diodes
Although vacuum diodes have been largely supplanted by semiconductor diodes, they still hold some promise for specialized applications. High-power and high-voltage environments, where the vacuum’s properties offer unique advantages, are areas where vacuum diodes can outperform semiconductor diodes.
Furthermore, research into advanced vacuum electronic devices, such as vacuum transistors and vacuum channel transistors, is ongoing. These devices aim to combine the advantages of vacuum electronics with the compactness and low power consumption of semiconductor devices. If successful, they could lead to a resurgence of vacuum-based electronic components in specific high-performance applications.
Conclusion
The vacuum diode played a pivotal role in the history of electronics, laying the foundation for modern semiconductor diodes and shaping the technological landscape we know today. While semiconductor diodes have largely replaced vacuum diodes due to their superior performance and size, the vacuum diode’s unique properties continue to find use in niche applications and may even lead to the development of advanced vacuum electronic devices in the future.
