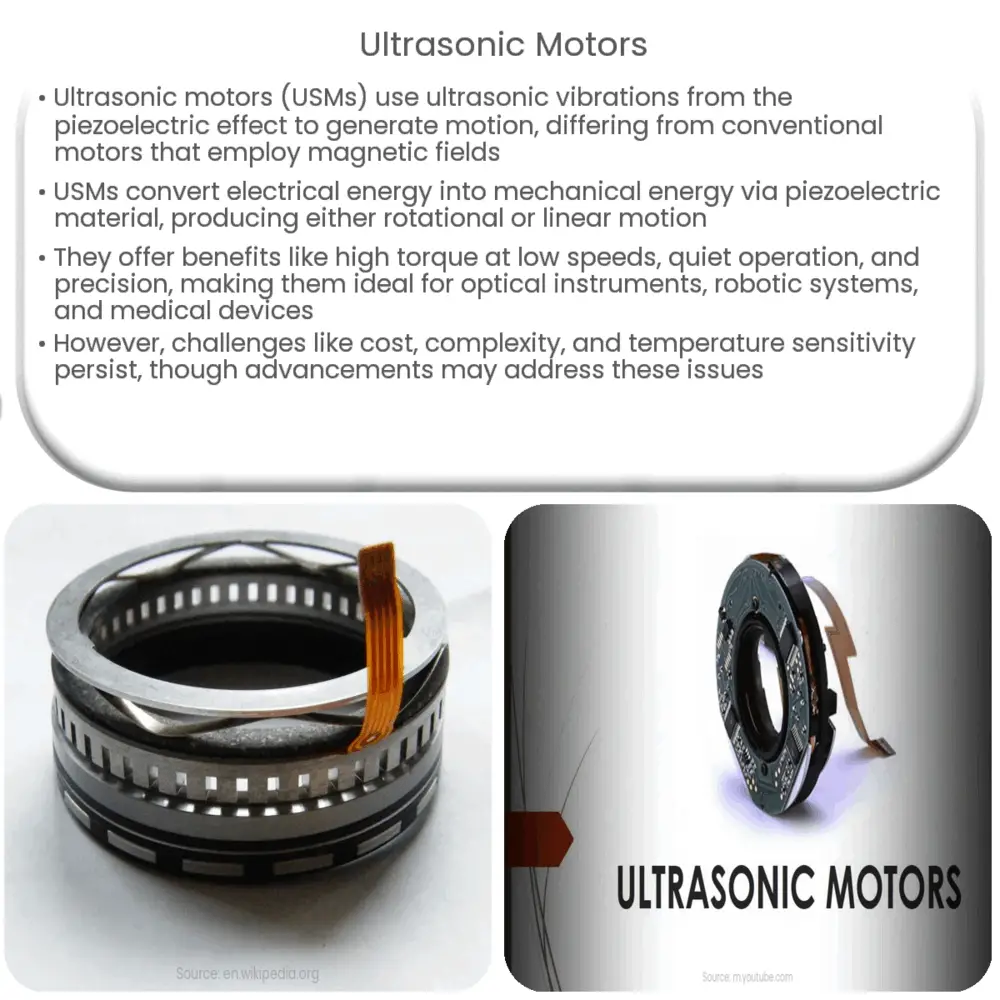

Introduction to Ultrasonic Motors
Ultrasonic motors, often abbreviated as USMs, represent a unique branch of electric motors that utilize ultrasonic vibrations to generate motion. Distinct from traditional electric motors, which rely on magnetic fields and current-carrying conductors, USMs harness the power of piezoelectric effect.
Working Principle of Ultrasonic Motors
The fundamental working principle of an ultrasonic motor involves the conversion of electrical energy into mechanical energy through the use of piezoelectric material. This material, when subjected to an electrical field, undergoes physical deformation—a phenomenon known as the piezoelectric effect.
- Electric Energy to Ultrasonic Vibration: When a voltage is applied to the piezoelectric material, it deforms and generates vibrations. The frequency of these vibrations matches the ultrasonic range, hence the name.
- Vibration to Motion: These ultrasonic vibrations are then converted into rotational or linear motion. This is typically achieved through the use of an elliptical motion at the motor’s contact point.
Types of Ultrasonic Motors
Ultrasonic motors can be broadly divided into two categories based on the nature of the motion they produce:
- Rotary Ultrasonic Motors: These motors generate rotational motion. They are typically used in applications requiring high torque and low rotational speed.
- Linear Ultrasonic Motors: These motors produce linear motion and find applications where precision positioning is required.
Advantages of Ultrasonic Motors
Ultrasonic motors, due to their unique mode of operation, offer several advantages:
- High Torque at Low Speed: USMs are known for their high torque even at very low speeds, a characteristic absent in conventional electric motors.
- Quiet Operation: Given the ultrasonic frequencies (above the range of human hearing), these motors operate with less noise compared to their traditional counterparts.
- Excellent Precision: The precise control of motion offered by USMs makes them ideal for applications where high positional accuracy is paramount, such as in optical equipment or precision machinery.
Despite these advantages, ultrasonic motors are not ubiquitous, primarily due to their relatively higher cost and complexity. The next part of this article will delve into the applications and future of ultrasonic motors, alongside a more in-depth look at their limitations.
Applications of Ultrasonic Motors
Ultrasonic motors have found wide-ranging applications due to their unique features:
- Optical Instruments: Their high precision and low-speed control make them an ideal choice for optical instruments, including cameras and microscopes, where they are used for focus and zoom adjustments.
- Robotic Systems: USMs are often used in robotic systems that require precision control for tasks like gripping, lifting, and positioning.
- Medical Devices: In medical devices, particularly those requiring silent operation and precision, such as hearing aids and drug delivery pumps, USMs have found significant application.
Limitations and Future of Ultrasonic Motors
Despite their advantages and applications, ultrasonic motors also have their limitations:
- Cost and Complexity: USMs are generally more expensive and complex than traditional motors, making them less suitable for cost-sensitive applications.
- Temperature Sensitivity: The performance of USMs can be affected by temperature changes, which might limit their use in certain environments.
- Control Systems: The need for sophisticated control systems to operate USMs can add to the cost and complexity of the overall system.
Nevertheless, the future of ultrasonic motors seems promising. Advances in materials science, particularly in the area of piezoelectric materials, can potentially overcome some of the current limitations. Furthermore, the ever-growing demand for precision, low noise, and high torque in many modern applications indicates a bright future for USMs.
Conclusion
In conclusion, ultrasonic motors, with their unique piezoelectric operational principle, provide an interesting and effective alternative to conventional electric motors. Although they currently face challenges in terms of cost and complexity, ongoing advances in technology and growing demand in high-precision applications ensure a place for USMs in the future of motor technology. As we move towards a more technologically advanced future, it is likely that ultrasonic motors will continue to expand their reach into new and exciting domains.
