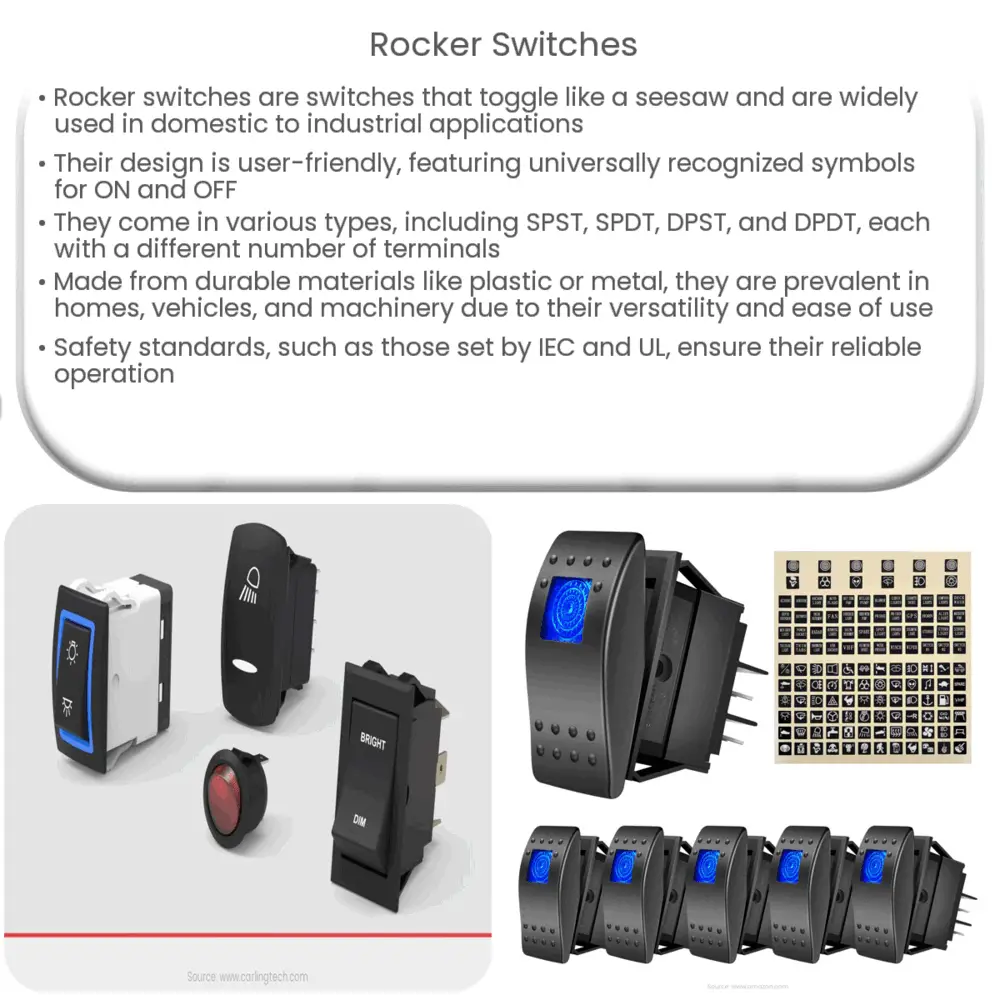

Understanding Rocker Switches
A rocker switch is a type of switch that rocks back and forth, an action where one side of the switch is raised while the other side is depressed, much like how a seesaw or teeter-totter works. This functionality is primarily employed in toggle action, which is commonly used in various types of applications from domestic to industrial settings.
The Design and Functionality
Constructed as a user-friendly device, rocker switches are designed with simplicity and ease of use in mind. The basic design incorporates a pivoting rocker in the middle with a circle (for ON) on one end and a horizontal line (for OFF) on the other. This universally recognized symbol makes it quite straightforward for any user.
Types of Rocker Switches
- Single Pole Single Throw (SPST): This is the simplest type of rocker switch. It functions as a simple on/off switch for a single circuit, with only two terminals for connection.
- Single Pole Double Throw (SPDT): This type of switch is more complex than SPST as it can control two circuits. It has three terminals, one for input and the others for output.
- Double Pole Single Throw (DPST): This type essentially consists of two SPST switches operated by a single mechanism. They have four terminals.
- Double Pole Double Throw (DPDT): This is the most complex type, controlling two circuits and having two possible positions. It can switch both circuits simultaneously and has six terminals.
Rocker Switch Materials and Durability
Rocker switches are typically made from sturdy materials like high-quality plastic or metal to ensure long-lasting durability. These materials can withstand regular use, accidental drops, and harsh environmental conditions. The internal contacts are usually made of copper, brass, or silver to provide reliable conductivity.
The Role of Rocker Switches in Everyday Life
Because of their practical design and ease of use, rocker switches are a staple in many areas of everyday life. You’ll find them in homes, offices, factories, and vehicles, controlling everything from lights to heavy machinery. Their versatile nature makes them an invaluable component in countless devices.
Applications of Rocker Switches
Due to their versatile nature, rocker switches are employed in various applications:
- Domestic appliances: Many household items such as lamps, power strips, and kitchen appliances utilize rocker switches for power control.
- Automotive industry: In cars and other vehicles, rocker switches are often used for controlling lights, windscreen wipers, and other electrical systems.
- Industrial machinery: Large machines and equipment often feature rocker switches due to their durability and ease of use.
- Medical devices: Some medical equipment, such as hospital beds and diagnostic machines, incorporate rocker switches for various functions.
Rocker Switch Safety and Standards
Rocker switches must adhere to specific safety standards and certifications to ensure their safe and reliable operation. For instance, the International Electrotechnical Commission (IEC) sets global standards for electrical, electronic and related technologies, including switches. In the United States, Underwriters Laboratories (UL) provides safety certifications for these devices.
Choosing the Right Rocker Switch
When selecting a rocker switch, consider the electrical load it will handle, the environmental conditions it will operate in, and the specific application it will be used for. By considering these factors, you can ensure you choose a rocker switch that’s robust, reliable, and suited to your specific needs.
Conclusion
In conclusion, rocker switches play a pivotal role in various applications across multiple industries, from household items to large industrial machinery. Their simple yet efficient design, durability, and user-friendliness make them an integral component in countless devices. When selecting a rocker switch, consider its type, material, durability, safety standards, and the specific application for which it will be used. By understanding the nuances of this humble yet crucial device, we can appreciate the profound impact it has on our everyday lives.
