Introduction to Proton Magnetometers
Proton magnetometers, also known as proton precession magnetometers (PPM), are scientific instruments utilized extensively in geophysics and archaeology. These devices are designed to measure and analyze the Earth’s magnetic field, which is essential for various applications.
Operating Principle of Proton Magnetometers
The working principle of a proton magnetometer is rooted in the concept of nuclear magnetic resonance (NMR). In a PPM, the magnetic field strength is determined by measuring the precession frequency of hydrogen protons within the instrument, which directly aligns with the external magnetic field.

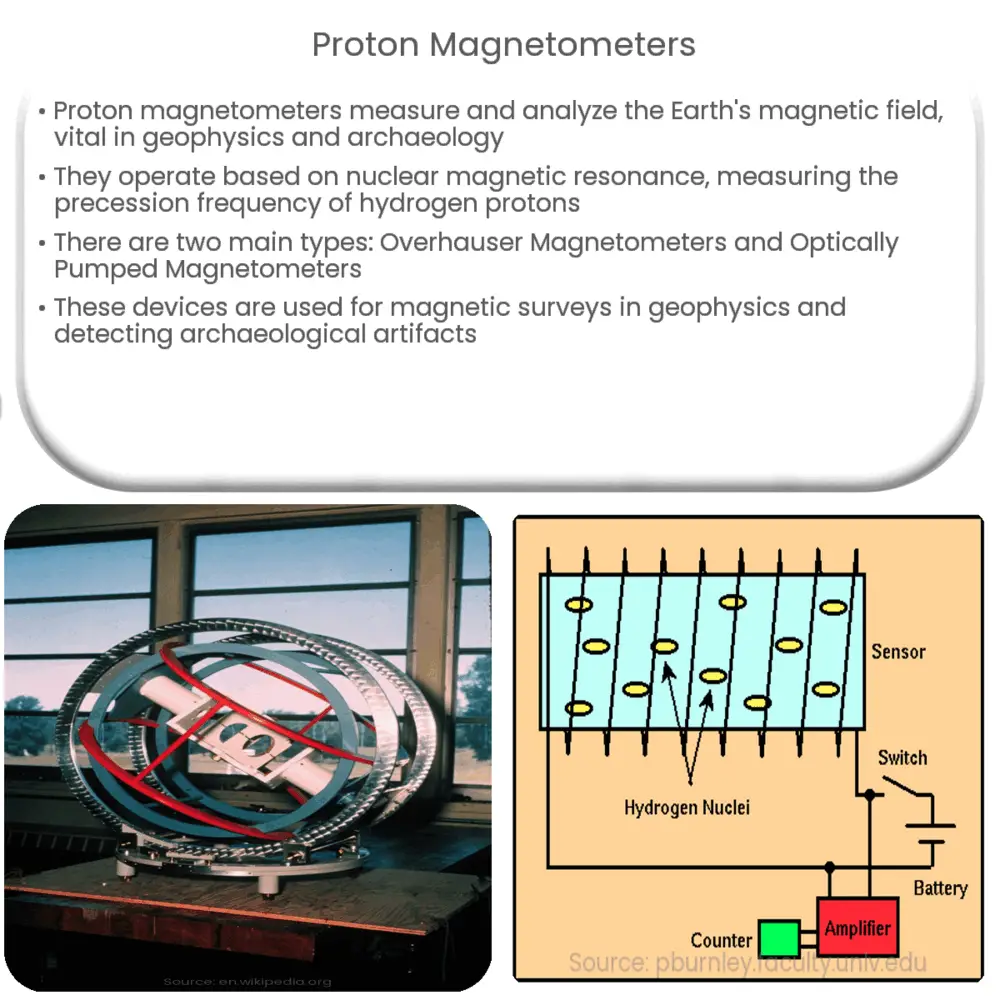

- Preparation: Initially, a direct current is passed through a coil surrounding a container filled with a fluid rich in hydrogen, typically kerosene or water. This creates a strong magnetic field that aligns the spin of the hydrogen protons.
- Polarization: The coil current is turned off abruptly. The protons, previously aligned, begin to precess around the direction of the Earth’s magnetic field at a specific frequency – the Larmor frequency. This frequency depends on the magnetic field strength.
- Detection: An oscillating signal is induced in the coil by the precessing protons. The frequency of this signal, once detected, gives the measure of the magnetic field strength.
Types of Proton Magnetometers
Proton magnetometers are typically classified into two types based on their design and usage.
- Overhauser Magnetometers: These are a variant of proton magnetometers that use a different polarization method, exploiting the Overhauser effect in liquids. They offer advantages in terms of power consumption and absolute accuracy.
- Optically Pumped Magnetometers: These magnetometers, while not relying on proton precession, deserve mention for their high sensitivity. They work on the principles of optical pumping and atomic magnetometry and are used in many scientific applications.
Applications of Proton Magnetometers
Due to their ability to detect variations in the Earth’s magnetic field, proton magnetometers find wide use in numerous fields.
- Geophysics: Proton magnetometers are used in magnetic surveys to map variations in the Earth’s magnetic field, aiding in the detection of mineral deposits and geological structures.
- Archaeology: They are used to detect buried archaeological artefacts by sensing the magnetic anomalies they cause.
Advantages and Limitations of Proton Magnetometers
Like all scientific instruments, proton magnetometers have their strengths and limitations.
- Advantages: Proton magnetometers are known for their robustness and accuracy. They offer absolute measurements of magnetic field strength and are not affected by temperature or orientation. Their sensitivity makes them ideal for detecting even small variations in the Earth’s magnetic field. The Overhauser magnetometers are even more power-efficient and accurate.
- Limitations: Despite their advantages, proton magnetometers can be somewhat slow to produce readings, which might not be ideal for all applications. They are also more sensitive to external magnetic noise compared to some other types of magnetometers.
Future of Proton Magnetometers
The use of proton magnetometers is expanding with advances in technology. New areas of application are continually being explored. Furthermore, the ongoing research is aiming at improving the design and efficiency of these devices, with the goal to mitigate their limitations and broaden their application scope.
Conclusion
In conclusion, proton magnetometers are remarkable scientific tools that play an invaluable role in fields like geophysics and archaeology. Their ability to detect and measure variations in the Earth’s magnetic field opens up a myriad of applications, from mineral exploration to archaeological surveys. While they do have certain limitations, the future looks bright for these devices as advances in technology promise to enhance their capabilities and efficiency. Thus, proton magnetometers continue to be an integral part of our scientific exploration of the Earth’s magnetic landscape.
