Explore the role of power dividers in radio technology, their types, working principles, practical considerations, and applications.

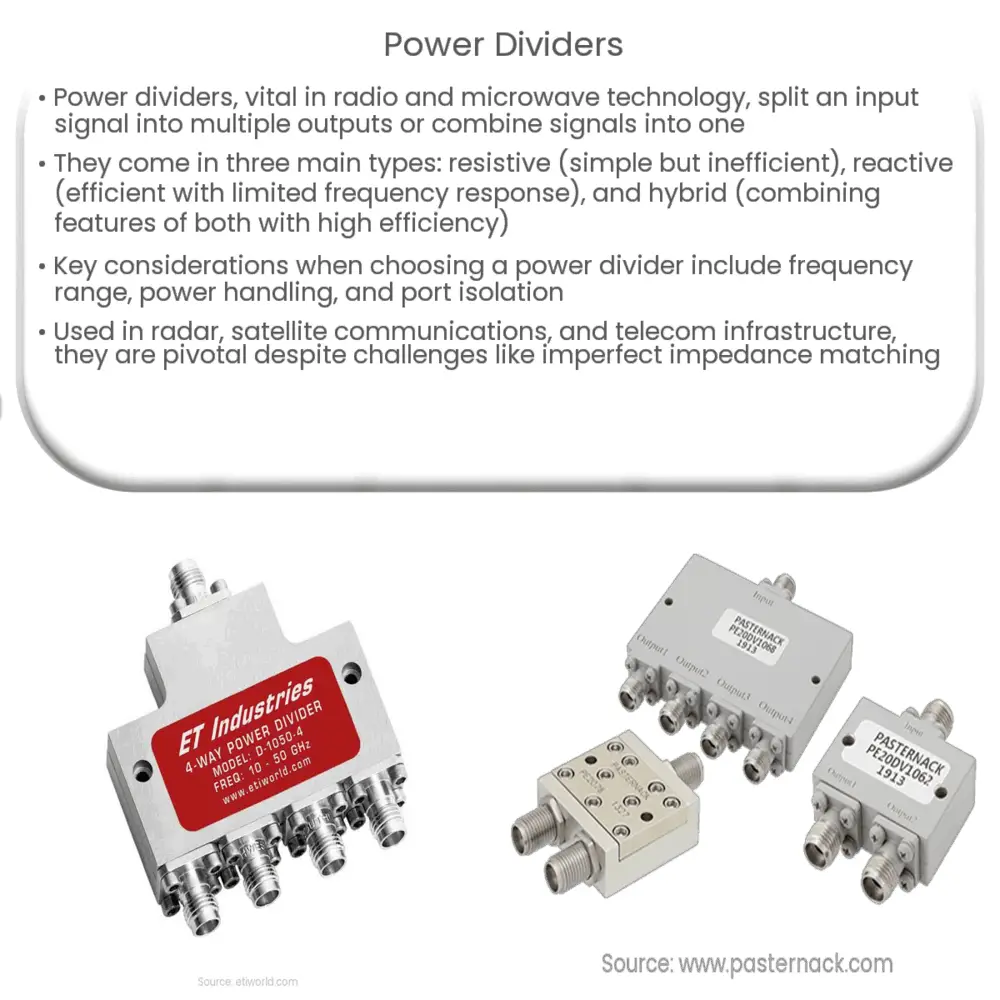

Introduction to Power Dividers
Power dividers, also known as power splitters, play a crucial role in radio technology, and they’re widely used in microwave systems. They perform the vital task of dividing an input signal into two or more output signals, which allows the same signal to be sent in multiple directions within the system.
The Basic Concept of Power Dividers
A power divider essentially performs two key functions: signal splitting and signal combining. The operation mode depends on the direction of the signal propagation. It can either split an incoming signal into multiple paths or combine multiple signals into one.
Types of Power Dividers
- Resistive Dividers: Resistive dividers are the simplest type of power dividers. They use resistors to divide the power among the outputs. Although they offer broad frequency response, they lack efficiency as a significant amount of input power is lost as heat in the resistors.
- Reactive Dividers: Reactive dividers use reactive components such as capacitors, inductors, and transmission lines. They offer better efficiency than resistive dividers, but their frequency response is not as broad.
- Hybrid Dividers: Hybrid dividers, such as Wilkinson power dividers and quadrature (90°) hybrids, are a combination of reactive and resistive power dividers. They offer excellent isolation between output ports and high efficiency.
Key Specifications
When choosing a power divider, it’s important to consider certain specifications. These include the frequency range, the power handling capability, the isolation between output ports, the insertion loss, and the phase and amplitude balance.
Applications of Power Dividers
Power dividers have various applications in the field of radio and microwave systems. They’re used in radar systems, satellite communications, and telecommunications infrastructure. Additionally, power dividers are crucial in testing environments where simultaneous monitoring or measurement of a signal in multiple systems is required.
Working Principle of Power Dividers
In the next section, we will delve deeper into the working principle of power dividers, looking at both the physical and mathematical perspectives. We will also discuss the practical considerations that affect the performance of these devices in real-world applications.
Working Principle of Power Dividers
At a basic level, power dividers work on the principle of impedance matching. The input signal is distributed to multiple outputs by carefully controlling the impedance of each path. In an ideal power divider, the input signal is evenly divided among all outputs with no loss of power. However, in practical applications, some power is invariably lost due to imperfect impedance matching and resistive losses in the components used.
Mathematical Perspective
The mathematical principle behind power dividers is governed by the concept of transmission lines theory, wave propagation, and impedance matching. For instance, in a two-way power divider, the input power is divided equally between the two outputs if they are perfectly matched. This concept can be represented mathematically using scattering parameters or S-parameters, which describe the power flow through the device.
Practical Considerations
- Impedance Matching: Achieving perfect impedance matching can be challenging, especially at higher frequencies. This can result in power loss and signal degradation.
- Isolation: Isolation between the output ports is another crucial factor. Poor isolation can lead to interference between the outputs, affecting the overall system performance.
- Frequency Range: The operating frequency range of the power divider can limit its applicability. Some types of dividers, such as reactive dividers, have a narrower frequency range compared to others.
Conclusion
Power dividers play a pivotal role in the world of radio technology and microwave systems. Understanding their types, working principles, and practical considerations can enable one to make more informed decisions when implementing them in various applications. Despite certain challenges, such as impedance matching and isolation, they remain integral to the function of diverse systems, from radar and satellite communications to testing environments.
As technology continues to advance, further improvements in power divider design and materials are anticipated, promising greater efficiency and performance in a broader range of applications. Therefore, power dividers will continue to be an essential component in the ever-evolving landscape of radio and microwave technology.
