Piezoresistive Gyroscope: A Comprehensive Introduction

What is a Piezoresistive Gyroscope?

A piezoresistive gyroscope is a type of sensor that measures angular velocity, which is the rate at which an object rotates around an axis. It is a solid-state device that relies on the piezoresistive effect to detect rotational motion. The piezoresistive effect refers to the change in electrical resistance of a material when it is subjected to mechanical stress, such as deformation or bending.

These gyroscopes are widely used in various applications, including automotive systems, consumer electronics, robotics, and aerospace, to provide accurate and reliable information about the orientation and rotation of objects.

Components and Working Principle of a Piezoresistive Gyroscope

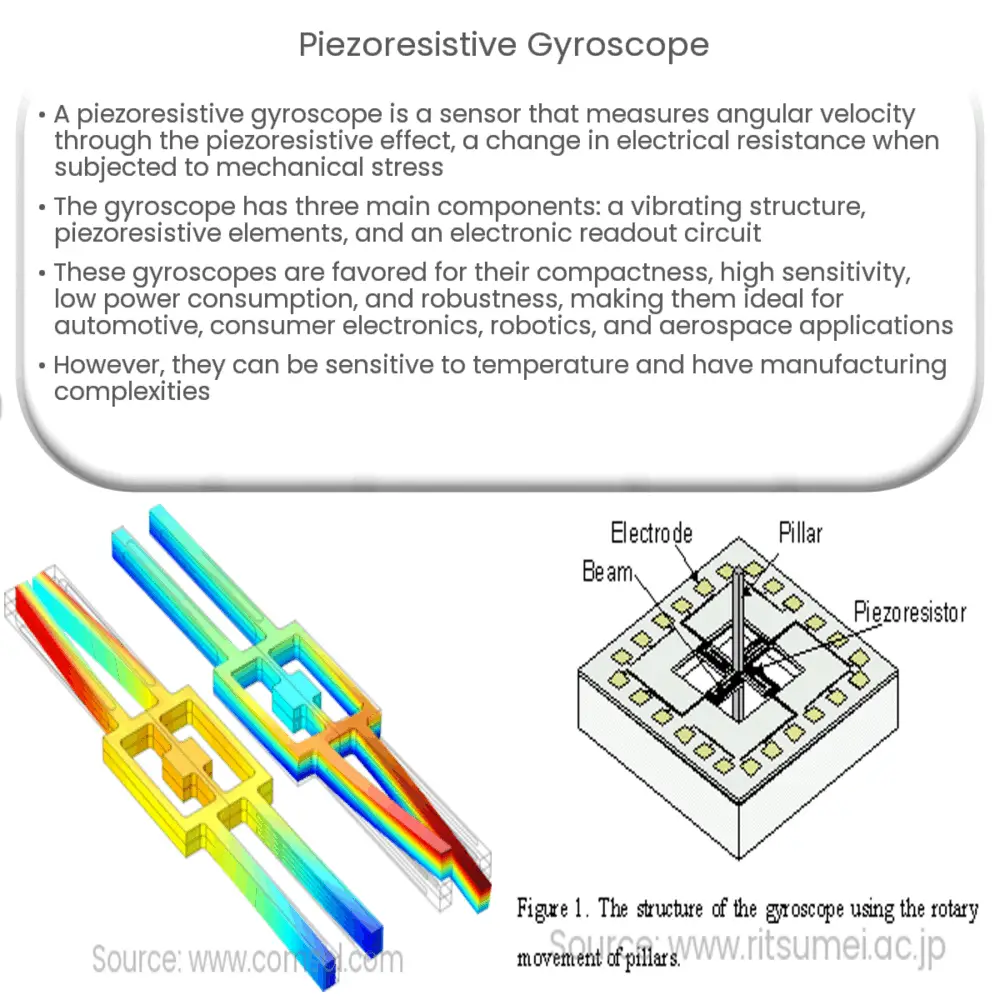

A typical piezoresistive gyroscope consists of three main components: a vibrating structure, piezoresistive elements, and an electronic readout circuit. The vibrating structure, also known as the proof mass, is usually made of silicon or a similar material and is designed to resonate at a specific frequency when subjected to an angular velocity.

The piezoresistive elements, which are embedded within the vibrating structure, detect the mechanical stress generated by the proof mass’s movement. These elements are usually made of a semiconductor material such as silicon or germanium, and their electrical resistance changes as they undergo deformation due to the applied stress. This change in resistance is then measured by the electronic readout circuit, which converts the signal into a proportional output voltage that represents the angular velocity being measured.

The working principle of a piezoresistive gyroscope is based on the Coriolis effect, a phenomenon that occurs in rotating systems. When the proof mass vibrates, it experiences a Coriolis force due to its motion relative to the rotation of the device. This force causes the mass to deflect, generating mechanical stress on the piezoresistive elements, which in turn changes their resistance. By measuring the change in resistance, the gyroscope can determine the angular velocity of the object it is attached to.

Advantages of Piezoresistive Gyroscopes

Piezoresistive gyroscopes offer several advantages over other types of gyroscopes, such as optical or MEMS gyroscopes. Some of these advantages include:

• Compactness and lightweight: Due to their solid-state nature, piezoresistive gyroscopes are relatively small and lightweight, making them suitable for various applications, including portable devices and space-constrained systems.
• High sensitivity and accuracy: Piezoresistive gyroscopes are known for their high sensitivity to rotational motion, enabling them to detect small changes in angular velocity. This high sensitivity translates to improved accuracy in measuring rotation and orientation.
• Low power consumption: The power consumption of a piezoresistive gyroscope is relatively low compared to other types of gyroscopes, which is beneficial for battery-powered applications and energy-efficient systems.
• Robustness: Piezoresistive gyroscopes are generally more robust than their counterparts, making them suitable for harsh environments and applications where high levels of shock or vibration are expected.

In conclusion, piezoresistive gyroscopes are a versatile sensing technology that offers several benefits, including compactness, high sensitivity, low power consumption, and robustness. These advantages make them a popular choice for various applications that require accurate and reliable rotation measurements.Disadvantages of Piezoresistive Gyroscopes

Despite the numerous advantages, piezoresistive gyroscopes also have some drawbacks, which include:

• Temperature sensitivity: The piezoresistive effect is sensitive to temperature changes, which can lead to measurement inaccuracies if not appropriately compensated. This requires additional temperature compensation techniques to ensure reliable performance across different temperature ranges.
• Manufacturing complexity: Fabricating piezoresistive gyroscopes involves complex processes, such as microfabrication and semiconductor doping, which can increase production costs and complexity compared to other types of gyroscopes.
• Non-linearity: The relationship between the applied stress and the change in resistance in piezoresistive elements is not always linear. This non-linearity can lead to inaccuracies in angular velocity measurements, particularly at high rotation rates, and may require additional signal processing techniques to correct.

Applications of Piezoresistive Gyroscopes

Piezoresistive gyroscopes are used in a wide range of applications across various industries. Some common applications include:

1. Automotive systems: In vehicles, piezoresistive gyroscopes can be used for electronic stability control, navigation, and rollover detection, improving safety and performance.
2. Consumer electronics: Mobile devices, gaming consoles, and virtual reality systems often use piezoresistive gyroscopes for motion tracking and user input, enabling intuitive and immersive experiences.
3. Robotics: In robotics, piezoresistive gyroscopes help maintain balance and orientation for autonomous robots, drones, and unmanned vehicles, allowing for precise and stable movements.
4. Aerospace: Piezoresistive gyroscopes are critical components in inertial navigation systems for aircraft, spacecraft, and missiles, providing crucial information about orientation, trajectory, and attitude control.
5. Industrial applications: In the industrial sector, piezoresistive gyroscopes can be used for vibration monitoring, structural health monitoring, and machine tool alignment, ensuring optimal performance and reduced wear and tear.

Conclusion

In summary, piezoresistive gyroscopes are an essential sensing technology that provides accurate and reliable rotation measurements for various applications. Although they have some disadvantages, such as temperature sensitivity, manufacturing complexity, and non-linearity, their numerous benefits make them an attractive choice for many industries. With ongoing research and development, piezoresistive gyroscopes continue to evolve, offering improved performance, lower costs, and new opportunities for innovation in areas such as automotive systems, consumer electronics, robotics, aerospace, and industrial applications.
