Piezoelectric Accelerometers: A Comprehensive Overview

Introduction

Piezoelectric accelerometers have become an essential tool in various industries, from aerospace to automotive, and consumer electronics to industrial machinery. These devices are used to measure acceleration, shock, and vibration with high accuracy and stability. In this article, we will delve into the principles, applications, and advantages of piezoelectric accelerometers.

Principle of Piezoelectricity

The piezoelectric effect is the key principle behind piezoelectric accelerometers. It is a phenomenon where certain materials, known as piezoelectric materials, generate an electric charge when subjected to mechanical stress. Conversely, they also experience mechanical deformation when an electric field is applied. This effect was first discovered by Jacques and Pierre Curie in 1880. Common piezoelectric materials include quartz, lead zirconate titanate (PZT), and polyvinylidene fluoride (PVDF).

How Piezoelectric Accelerometers Work

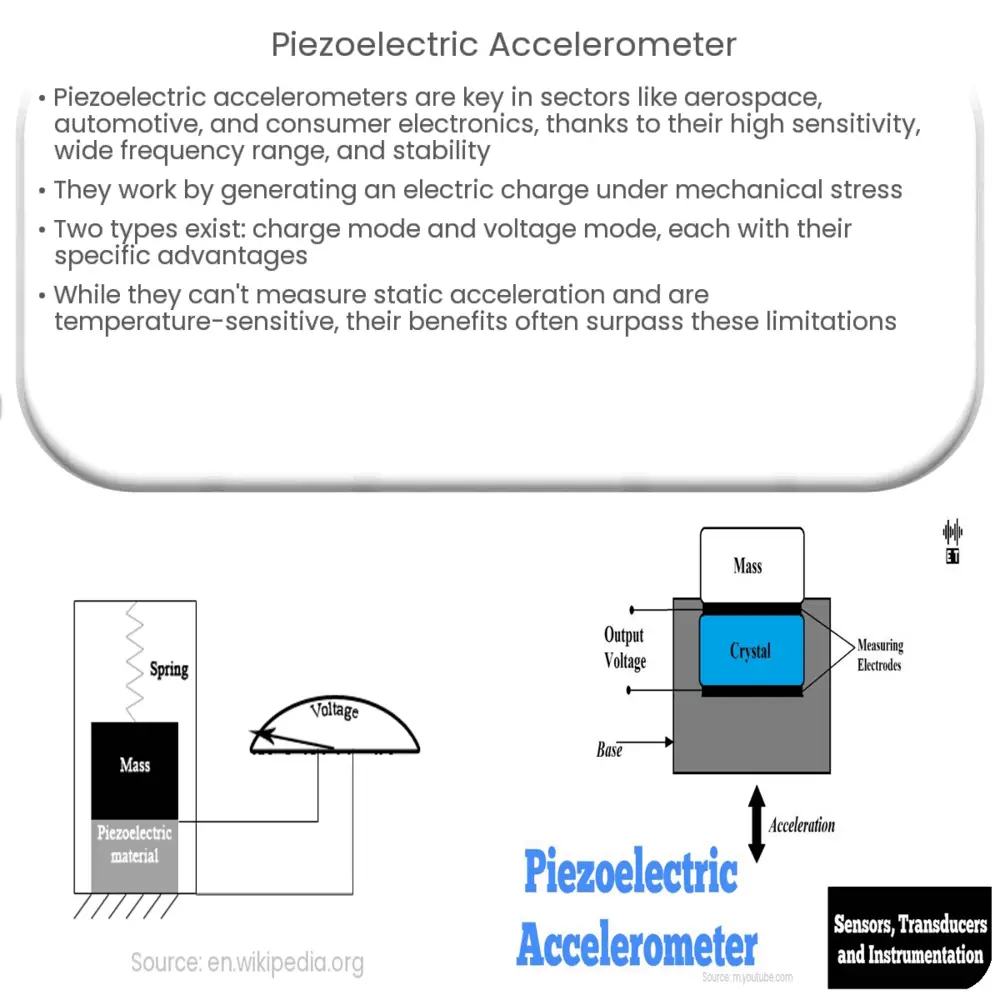

A piezoelectric accelerometer consists of a seismic mass, a piezoelectric sensing element, and a housing. When the accelerometer experiences an external force, the seismic mass applies a force to the piezoelectric sensing element. This force causes the piezoelectric material to generate an electric charge proportional to the applied force. By measuring the generated charge, the acceleration experienced by the accelerometer can be determined.

There are two main types of piezoelectric accelerometers: charge mode and voltage mode. Charge mode accelerometers output the generated charge directly, while voltage mode accelerometers include an internal charge amplifier that converts the charge to a voltage output. Voltage mode accelerometers are typically easier to use and interface with data acquisition systems, but charge mode accelerometers offer better performance in terms of noise and temperature sensitivity.

Applications

Piezoelectric accelerometers have a wide range of applications across various industries. Some of these include:

  • Aerospace and Defense: Used to monitor vibration in aircraft engines, satellites, and helicopters. They are also used in testing and development of new aerospace technologies.
  • Automotive: Employed in vehicle dynamics testing, crash testing, and monitoring of engine performance.
  • Consumer Electronics: Integrated into smartphones, tablets, and wearable devices to enable features such as motion detection, navigation, and gesture recognition.
  • Industrial Machinery: Used for monitoring and diagnosing the health of rotating equipment, such as motors, pumps, and turbines.
  • Structural Health Monitoring: Implemented to assess the integrity of bridges, buildings, and other large structures.

These are just a few examples of the many industries and applications that rely on piezoelectric accelerometers for accurate and reliable measurements.

Advantages of Piezoelectric Accelerometers

There are several benefits associated with the use of piezoelectric accelerometers, which make them an attractive choice for various applications. Some of these advantages include:

  • High Sensitivity: Piezoelectric accelerometers can detect even the smallest changes in acceleration, making them suitable for applications requiring high-resolution measurements.
  • Wide Frequency Range: These devices can measure acceleration across a broad range of frequencies, which is essential for applications involving dynamic events or varying vibration conditions.
  • Excellent Linearity: Piezoelectric accelerometers exhibit a linear response to applied acceleration, ensuring accurate and repeatable measurements.
  • Low Noise: Due to their inherent low noise characteristics, piezoelectric accelerometers are well-suited for applications where low-level signals must be detected.
  • High-Temperature Capability: Certain piezoelectric materials can withstand extreme temperatures, making them suitable for use in harsh environments, such as aerospace and automotive applications.
  • Long-Term Stability: Piezoelectric accelerometers exhibit excellent long-term stability, ensuring consistent performance over time.

Limitations

Despite their numerous advantages, piezoelectric accelerometers also have certain limitations:

  • DC Response: Piezoelectric accelerometers cannot measure static or very low-frequency acceleration due to their AC-coupled nature.
  • Temperature Sensitivity: The sensitivity and zero-point stability of some piezoelectric materials may be affected by temperature changes, which could influence the accuracy of measurements.
  • Charge Leakage: Charge mode accelerometers may experience charge leakage, leading to signal drift and reduced accuracy over time. However, this can be mitigated by using voltage mode accelerometers with internal charge amplifiers.

Conclusion

Piezoelectric accelerometers are versatile and reliable instruments for measuring acceleration, shock, and vibration in a wide range of applications. Their high sensitivity, wide frequency range, and excellent linearity make them a popular choice for many industries, including aerospace, automotive, consumer electronics, and industrial machinery. Although they have certain limitations, such as an inability to measure static acceleration and potential sensitivity to temperature changes, the numerous benefits they offer often outweigh these drawbacks. As technology continues to advance, we can expect further improvements in piezoelectric accelerometer performance, making them even more valuable tools for researchers, engineers, and designers alike.
