Explore the world of magnetoresistive temperature sensors, their types, functioning, applications, advantages, and future prospects.

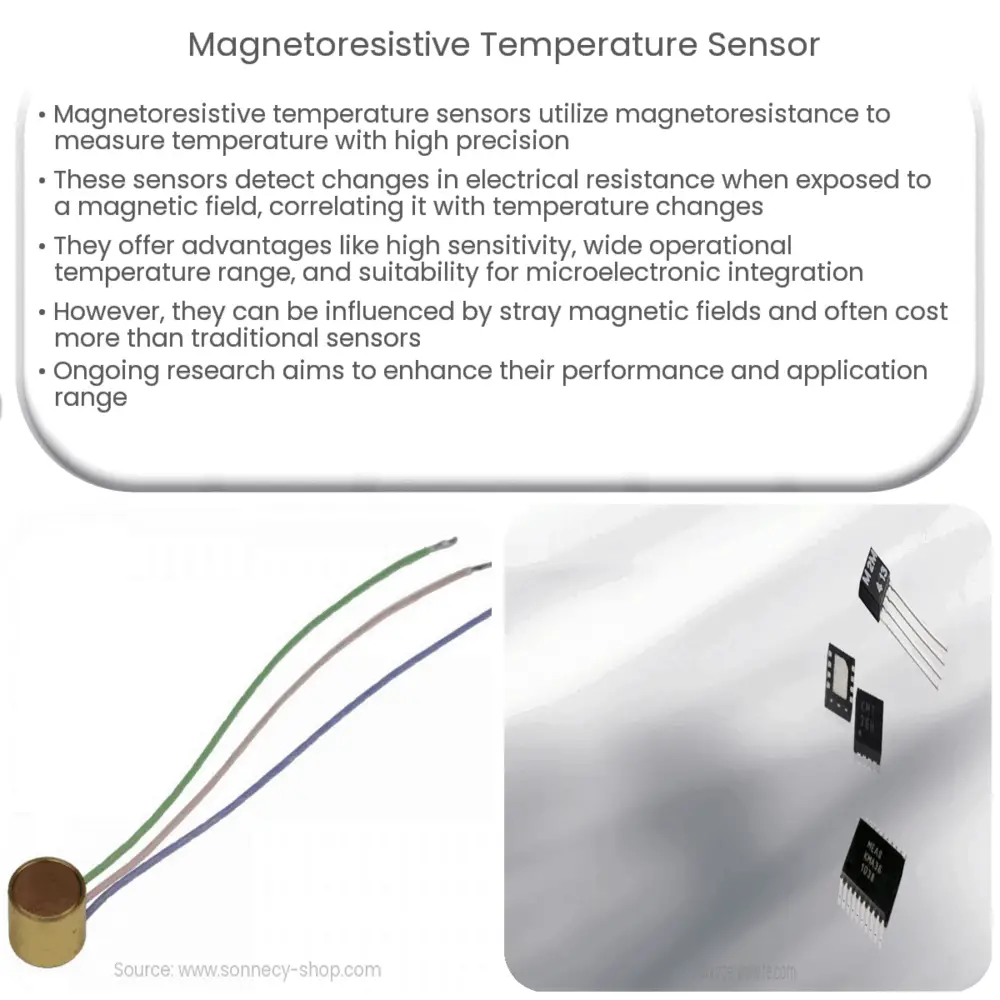

Introduction to Magnetoresistive Temperature Sensors
Magnetoresistive temperature sensors are an innovative class of temperature sensing devices that employ the principle of magnetoresistance. Magnetoresistance refers to the change in a material’s electrical resistance under the influence of a magnetic field. These sensors provide an unconventional, yet powerful means to measure temperature with high precision.
Understanding Magnetoresistance
The fundamental principle behind these sensors is magnetoresistance. This physical phenomenon was discovered in the mid-19th century, but its application in the realm of temperature sensing is a comparatively recent development. When a magnetic field is applied to certain materials, it alters the arrangement and motion of the electrons within, resulting in a change in electrical resistance. This resistance change is measurable and serves as the basis for magnetoresistive sensors.
Types of Magnetoresistive Temperature Sensors
- Anisotropic Magnetoresistive (AMR) Sensors: These sensors, made from thin-film resistive elements, are known for their linear response to magnetic fields. They are popular in digital compasses, but have also been implemented in temperature sensing due to their predictable and reliable responses.
- Giant Magnetoresistive (GMR) Sensors: GMR sensors are characterized by a large change in electrical resistance (~10%) in response to a small magnetic field. They have been effectively used in hard disk drives, and their high sensitivity makes them suitable for temperature sensing.
- Tunnel Magnetoresistive (TMR) Sensors: These sensors, operating on the principle of quantum mechanical tunneling, demonstrate an even higher resistance change than GMR sensors. TMR sensors are known for their high sensitivity and precision, making them ideal for applications demanding accurate temperature measurements.
Functioning of Magnetoresistive Temperature Sensors
The functioning of these sensors is based on monitoring the resistance changes in response to temperature fluctuations. As temperature changes, it affects the magnetization of the magnetoresistive material, which in turn changes its resistance. This resistance change is measured and converted into a temperature reading.
Applications of Magnetoresistive Temperature Sensors
Magnetoresistive temperature sensors have found applications in a wide array of fields, ranging from consumer electronics and automotive industry to space exploration and biomedical applications. Their unique properties, such as high sensitivity, precision, and the capability to function in extreme conditions, make them ideal for diverse applications.
Advantages of Magnetoresistive Temperature Sensors
Magnetoresistive temperature sensors offer several distinct advantages over traditional temperature sensors. Firstly, they provide high precision and sensitivity, making them capable of detecting minute temperature changes. Secondly, these sensors can function effectively in a wide temperature range, including extreme conditions, making them suitable for challenging environments. Lastly, due to their small size and low power consumption, they are ideal for integration into microelectronic devices.
Challenges and Limitations
Despite their numerous advantages, magnetoresistive temperature sensors also have their limitations. The presence of stray magnetic fields can potentially interfere with their readings, requiring careful shielding or calibration. Furthermore, they tend to be more expensive than their traditional counterparts, such as thermocouples or resistance temperature detectors (RTDs), which can limit their use in cost-sensitive applications.
The Future of Magnetoresistive Temperature Sensors
Research and development in the field of magnetoresistive temperature sensors is ongoing, with the aim of improving their performance, reducing their cost, and broadening their application scope. With advancements in nanotechnology and materials science, we can expect to see enhanced sensors that exhibit greater sensitivity, smaller sizes, and better resistance to environmental interference. In addition, efforts are being made to develop sensors that can operate reliably in extremely high or low temperature environments, such as those encountered in space exploration or deep-sea exploration.
Conclusion
In conclusion, magnetoresistive temperature sensors represent a significant leap in the field of temperature sensing technology. Leveraging the principle of magnetoresistance, these sensors offer high precision and sensitivity, making them suitable for a wide range of applications. While they face certain challenges, including interference from stray magnetic fields and higher costs, ongoing research and development promise to overcome these hurdles. As the technology continues to mature, we can expect magnetoresistive temperature sensors to play an increasingly pivotal role in various industries, from consumer electronics and automotive to aerospace and biomedical applications, shaping the future of temperature sensing technology.
