Linear Servomotor: The Future of Precision Motion Control

Introduction

Linear servomotors have emerged as a game-changing technology in the world of precision motion control. With their unparalleled accuracy, high speed, and dynamic performance, they are revolutionizing industries ranging from robotics and automation to manufacturing and medical equipment. In this article, we will delve into the basics of linear servomotors, their advantages, and their potential applications.

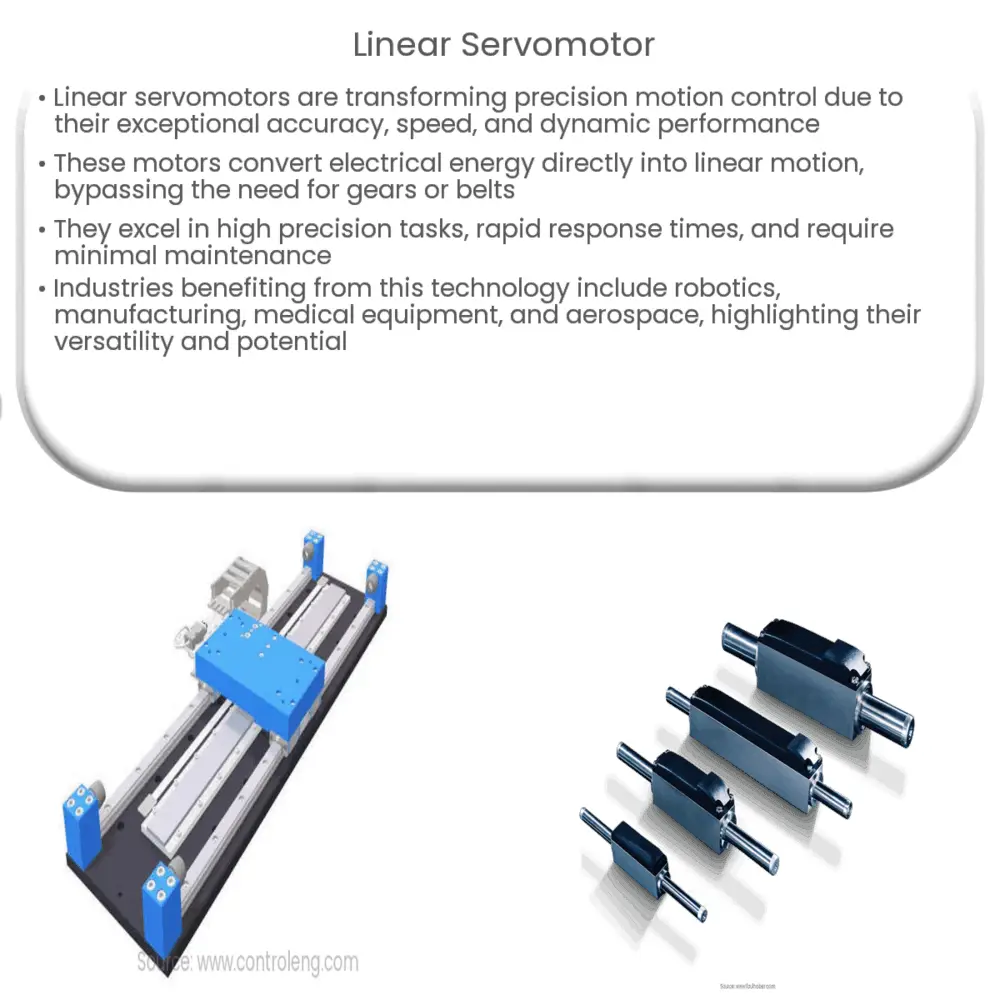

What is a Linear Servomotor?

A linear servomotor is a type of direct drive motor that converts electrical energy into linear motion, without the need for any mechanical transmission elements such as gears or belts. The core components of a linear servomotor include a primary part (forcer) and a secondary part (magnetic track). The forcer consists of a coil assembly, while the magnetic track is made up of permanent magnets arranged in a specific pattern. When an alternating current is applied to the coil assembly, a magnetic field is generated, which interacts with the permanent magnets to create linear motion.

Advantages of Linear Servomotors

Linear servomotors offer several significant advantages over traditional motion control systems, such as:

High Precision: Linear servomotors have the ability to achieve extremely precise positioning, with accuracy levels down to the nanometer range. This makes them ideal for applications that require high levels of precision, such as semiconductor manufacturing or medical equipment.
Fast Response and High Speed: The direct drive nature of linear servomotors allows for rapid acceleration and deceleration, as well as high-speed operation. This results in reduced cycle times and improved overall efficiency in many applications.
Low Maintenance: Since linear servomotors do not have any mechanical transmission components, they are inherently low-maintenance and have a longer service life. This can result in significant cost savings over time.
High Dynamic Performance: Linear servomotors are capable of handling high loads and maintaining excellent performance even under challenging conditions, thanks to their robust design and construction.

Potential Applications

Linear servomotors have a wide range of potential applications across various industries, including:

Robotics and Automation: Linear servomotors can be used to develop highly precise, fast, and efficient robotic systems for tasks such as pick-and-place, assembly, or inspection.
Manufacturing: In the manufacturing sector, linear servomotors are ideal for applications such as cutting, milling, drilling, and other CNC operations that require high levels of precision and speed.
Medical Equipment: The accuracy and reliability of linear servomotors make them well-suited for use in medical equipment, such as surgical robots, diagnostic imaging systems, and lab automation equipment.
Aerospace and Defense: Linear servomotors can be employed in the development of advanced guidance systems, satellite positioning, and other critical aerospace and defense applications that demand high precision and reliability.

Choosing the Right Linear Servomotor

When selecting a linear servomotor for a specific application, it is crucial to consider various factors, such as:

Force Requirements: Determine the force required for the application, taking into account factors like load, acceleration, and deceleration. It is essential to choose a linear servomotor that can provide the necessary force without compromising on performance.
Accuracy and Resolution: Evaluate the required positioning accuracy and resolution for the application, and select a linear servomotor that meets or exceeds these specifications.
Travel Length: Consider the travel length required for the application and ensure that the chosen linear servomotor can accommodate the desired range of motion.
Environmental Factors: Assess the environmental conditions, such as temperature, humidity, and presence of contaminants, and choose a linear servomotor that can operate effectively under those conditions.

Integration and System Considerations

Proper integration and system design are crucial to maximizing the performance of a linear servomotor. Some important factors to consider include:

Controller Compatibility: Ensure that the chosen linear servomotor is compatible with the control system being used, as this can significantly impact performance and overall system efficiency.
Feedback Devices: Select an appropriate feedback device, such as linear encoders or resolvers, to ensure precise position feedback and closed-loop control.
Thermal Management: Implement effective thermal management strategies to dissipate heat generated by the linear servomotor and maintain optimal performance and longevity.
System Stiffness: Optimize the mechanical structure of the system to minimize compliance and maximize system stiffness, which can directly affect the performance of the linear servomotor.

Conclusion

Linear servomotors have proven to be an indispensable technology in the field of precision motion control. Their high accuracy, speed, and dynamic performance make them a preferred choice for various applications across multiple industries. By carefully considering the selection, integration, and system design aspects, engineers and designers can harness the full potential of linear servomotors and drive innovation in their respective fields.
