Lead Magnesium Niobate (PMN) as Ferroelectric Material


Lead magnesium niobate (PMN) is a complex perovskite oxide material that has gained significant attention in recent years due to its outstanding ferroelectric properties. This material is composed of lead (Pb), magnesium (Mg), and niobium (Nb) elements and is typically represented by the chemical formula Pb(Mg1/3Nb2/3)O3. PMN is known for its high dielectric constant, excellent electromechanical coupling, and non-linear properties, which make it a promising candidate for various applications, including sensors, actuators, and energy storage devices.

Structure and Ferroelectric Behavior of PMN

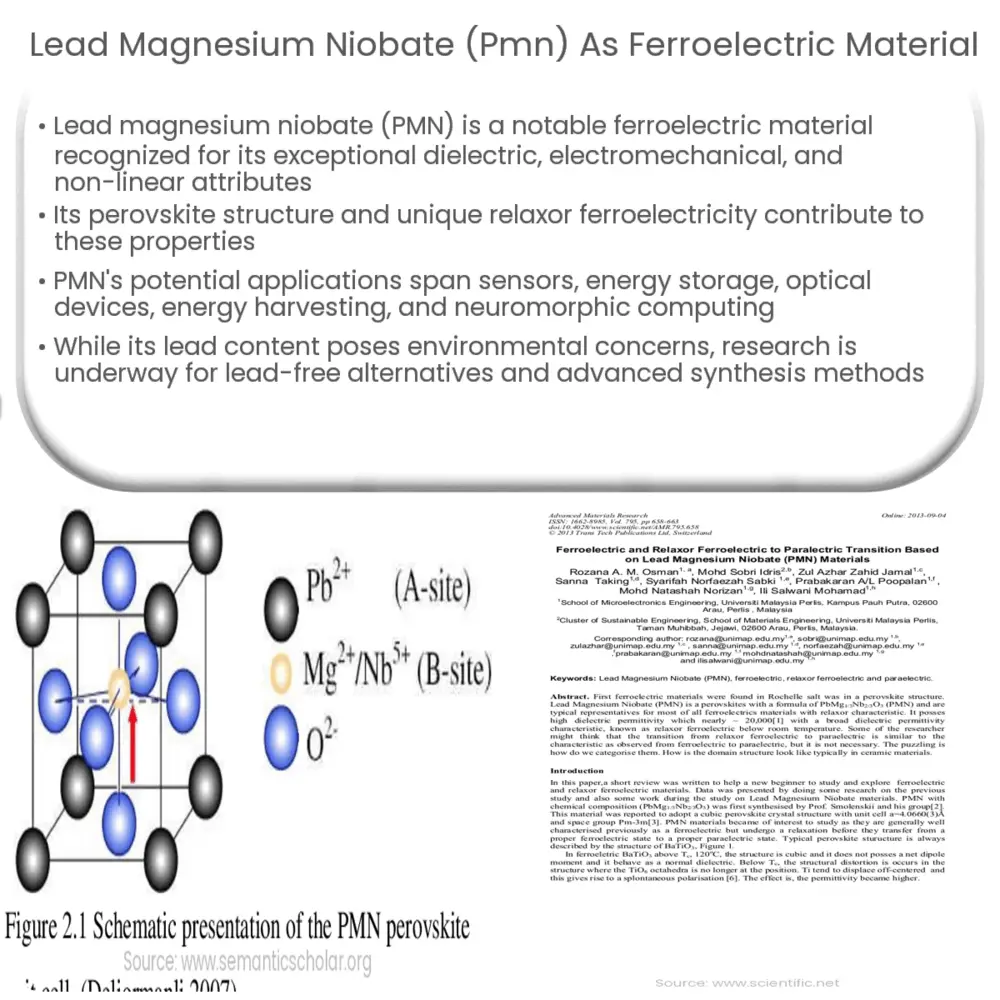

The perovskite structure of PMN is characterized by a 3-dimensional network of corner-sharing octahedra, where the central cation site is occupied by either magnesium or niobium, while the lead ions reside in the twelve-fold coordinated A-site. This arrangement results in a highly polarizable and disordered lattice that contributes to the exceptional ferroelectric properties of PMN.

PMN exhibits a unique type of ferroelectric behavior known as relaxor ferroelectricity. Relaxor ferroelectrics are characterized by the presence of polar nanoregions (PNRs) within the material, which are small, randomly oriented, and polarized domains that can reorient themselves under an applied electric field. These PNRs can also be thermally activated, leading to a broad temperature range for the ferroelectric phase transition, and giving rise to the characteristic frequency-dependent dielectric response of PMN.

Applications of PMN

Due to its remarkable ferroelectric properties, PMN has found numerous applications in various fields. Some of these applications include:

Sensors and Actuators

PMN-based materials are widely employed in the design of piezoelectric sensors and actuators, which can convert mechanical stress into electrical signals or vice versa. The large electromechanical coupling coefficient and high strain response of PMN make it an attractive choice for applications such as ultrasound transducers, accelerometers, and pressure sensors.

Energy Storage

The high dielectric constant and low dielectric loss of PMN have also been exploited for energy storage applications. PMN-based capacitors can store substantial amounts of electrical energy and exhibit excellent charge-discharge performance. This makes them suitable for use in power electronics, electric vehicles, and renewable energy systems.

Optical and Non-linear Devices

PMN materials are also known for their non-linear optical properties, which can be utilized in the fabrication of frequency conversion devices, electro-optic modulators, and optical switches. The strong non-linear response of PMN can enhance the performance of these devices and enable new functionalities in integrated photonics and optical communication systems.

Challenges and Future Perspectives

Despite the numerous advantages of PMN as a ferroelectric material, there are certain challenges associated with its synthesis, processing, and application. These challenges include the toxicity of lead, the difficulty of obtaining phase-pure PMN, and the need for further understanding of the relaxor behavior. Ongoing research efforts are focused on addressing these challenges, as well as exploring novel PMN-based materials and device concepts that can further expand the potential of this remarkable ferroelectric material.

Lead-Free Alternatives and Environmental Concerns

One of the primary concerns surrounding the use of PMN is the presence of lead, which poses significant health and environmental risks. Consequently, researchers are actively exploring lead-free alternatives that can mimic the exceptional ferroelectric properties of PMN. Some promising candidates include materials based on bismuth ferrite (BiFeO3), potassium sodium niobate (K0.5Na0.5NbO3), and barium titanate (BaTiO3). While these materials have shown potential, they have not yet reached the same level of performance as PMN, highlighting the need for further investigation into lead-free ferroelectric materials.

Advancements in Synthesis and Processing Techniques

Obtaining phase-pure PMN with optimal properties is a challenging task due to the complex chemistry and narrow processing window. Recent advances in synthesis and processing techniques, such as sol-gel methods, hydrothermal synthesis, and spark plasma sintering, have improved the ability to produce high-quality PMN materials. These methods allow for better control over the crystal structure, stoichiometry, and grain size of PMN, leading to enhanced ferroelectric performance and tailored properties for specific applications.

Emerging Applications and Future Directions

As our understanding of PMN and its relaxor ferroelectric behavior continues to grow, new applications and opportunities are emerging. Some of these potential applications include:

Energy Harvesting

The high electromechanical coupling and strain response of PMN materials can be harnessed for energy harvesting from ambient vibrations or mechanical stress. This could enable self-powered sensors, wearable electronics, and other low-power devices that rely on energy scavenging from the environment.

Flexible Electronics

Flexible and stretchable electronics are becoming increasingly important for applications such as wearable devices, robotics, and biomedical implants. The development of PMN-based thin films and nanocomposites could pave the way for flexible ferroelectric devices with high performance and unique functionalities.

Artificial Intelligence and Neuromorphic Computing

The non-linear and frequency-dependent properties of PMN can be utilized in the design of neuromorphic computing devices that mimic the information processing capabilities of the human brain. Such devices could offer significant advantages in terms of energy efficiency and computational power, with potential applications in artificial intelligence, machine learning, and cognitive computing.


Lead magnesium niobate (PMN) has emerged as a promising ferroelectric material due to its exceptional dielectric, electromechanical, and non-linear properties. Although challenges remain in terms of lead toxicity, synthesis, and processing, ongoing research efforts continue to push the boundaries of PMN-based materials and devices. The development of novel PMN-based systems, as well as the exploration of lead-free alternatives, will undoubtedly play a crucial role in shaping the future of ferroelectric materials and their diverse applications.
