How do you design electronic devices and systems to minimize electromagnetic interference?

To minimize EMI, use proper circuit design, shielding, grounding, power supply design, PCB layout techniques, and adhere to regulatory standards.

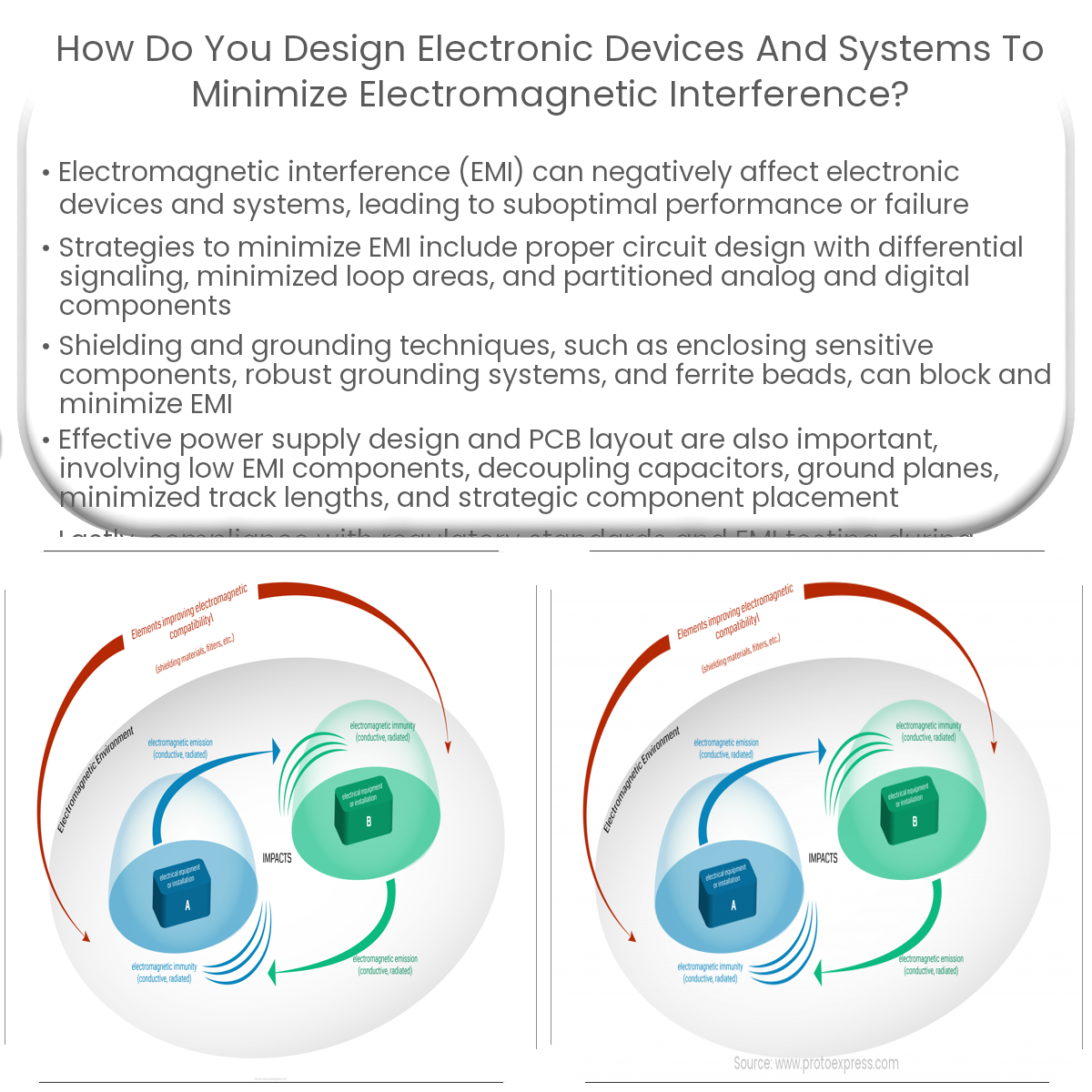

Minimizing Electromagnetic Interference in Electronic Devices and Systems

Electromagnetic interference (EMI) can disrupt the performance of electronic devices and systems, leading to reduced functionality or even failure. To ensure optimal performance, it is essential to design devices and systems that minimize EMI. In this article, we will discuss various strategies and techniques to achieve this goal.

1. Proper Circuit Design

1. Use Differential Signaling: This technique involves transmitting signals as the difference between two voltage levels, reducing the impact of common-mode noise and improving signal integrity.
2. Minimize Loop Area: Reduce the loop area in your circuits to decrease magnetic field coupling, as smaller loops generate less EMI.
3. Partition Analog and Digital Components: Separate analog and digital components to prevent digital noise from affecting analog signals.

2. Shielding and Grounding Techniques

• Shielding: Enclose sensitive components in metal shields or use shielded cables to block external EMI.
• Proper Grounding: Implement a robust grounding system, such as a single-point ground or a ground plane, to prevent ground loops and minimize EMI.
• Ferrite Beads: Use ferrite beads on cables to attenuate high-frequency noise.

3. Power Supply Design

1. Low EMI Switching Regulators: Choose power supply components with low EMI specifications, and employ filtering techniques to reduce noise in the output voltage.
2. Decoupling Capacitors: Use decoupling capacitors close to power supply pins to minimize power supply noise and stabilize the voltage across components.

4. Printed Circuit Board (PCB) Layout

• Ground Planes: Use ground planes in your PCB layout to provide a low-impedance return path and reduce EMI.
• Track Lengths: Minimize the length of high-frequency signal tracks to reduce radiation and susceptibility to EMI.
• Component Placement: Arrange components to minimize crosstalk and EMI between them. Place high-speed components closer to the power supply and ground to reduce loop area.

5. EMI Testing and Compliance

Perform EMI testing during the design phase to identify and resolve potential issues. Ensure that your device meets regulatory standards for EMI emissions and immunity, such as the FCC, CE, or CISPR standards.

In conclusion, minimizing EMI in electronic devices and systems is crucial for maintaining their performance and reliability. Implementing proper circuit design, shielding, grounding, power supply design, and PCB layout techniques, as well as adhering to regulatory standards, will help reduce EMI and ensure your devices operate as intended.
