How are electromagnetic waves used in metal detectors and security scanners?

Metal detectors use electromagnetic fields to detect metals, while security scanners like X-ray and millimeter-wave scanners reveal concealed objects.

Electromagnetic Waves in Metal Detectors and Security Scanners

Electromagnetic waves play a crucial role in modern security systems, including metal detectors and security scanners. This article explores the underlying principles of these technologies and their applications in maintaining safety and security.

Principles of Metal Detectors

Metal detectors use electromagnetic waves to identify the presence of metallic objects. The basic principle behind metal detectors is the induction of an electromagnetic field around a search coil, which generates a magnetic field when a current flows through it. When a metallic object is in proximity to the search coil, it induces an electric current, creating a secondary magnetic field. This change in the magnetic field is detected and processed by the device, signaling the presence of metal.

  • Very Low Frequency (VLF) Technology: The most common type of metal detector, VLF technology uses two coils, one for transmitting and one for receiving signals. The device measures the phase shift between the transmitted and received signals to determine the presence of a metallic object.
  • Pulse Induction (PI) Technology: PI detectors use a single coil that alternates between transmitting and receiving. These detectors send short bursts of electromagnetic pulses into the ground and measure the delay in the received signal, indicating the presence of metal.

Security Scanners

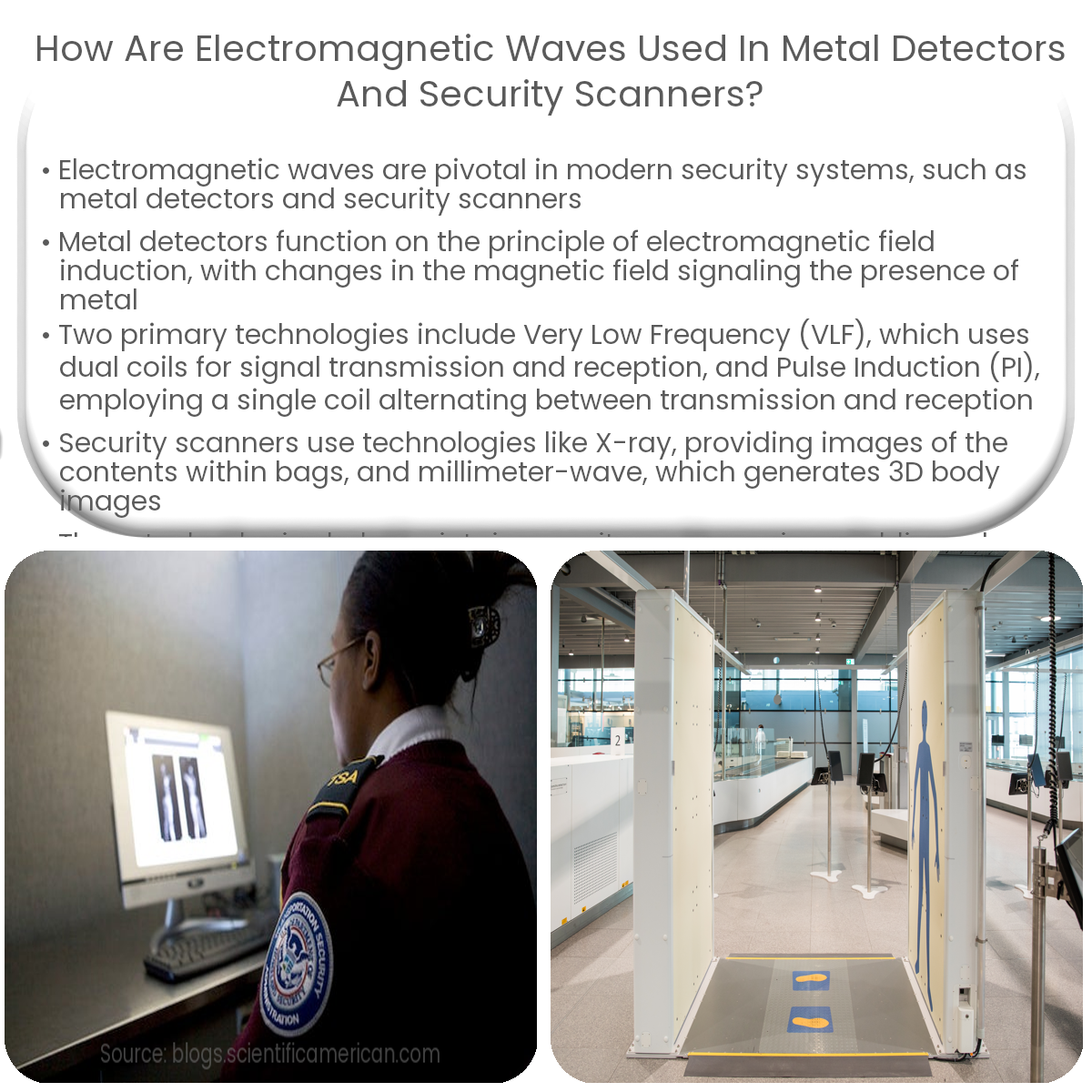

Security scanners used at airports, government buildings, and other high-security locations employ electromagnetic waves to screen people and their belongings for concealed threats. Two widely-used technologies include X-ray scanners and millimeter-wave scanners.

  1. X-ray Scanners: X-ray scanners use ionizing radiation to create images of the contents of bags and luggage. When X-rays pass through an object, they are absorbed at different rates by different materials. Dense materials, such as metals, absorb more X-rays, allowing the scanner to create an image of the object’s interior. This technology is effective in detecting metallic weapons, explosives, and other contraband items.
  2. Millimeter-wave Scanners: These scanners use non-ionizing electromagnetic radiation in the millimeter-wave spectrum (30-300 GHz) to create 3D images of a person’s body. The scanner measures the time it takes for the waves to reflect off the body and return to the scanner, generating an image that highlights concealed objects. This technology is useful for detecting both metallic and non-metallic threats.

In conclusion, electromagnetic waves are essential in the operation of metal detectors and security scanners. Through various technologies like VLF, PI, X-ray, and millimeter-wave scanning, these devices help maintain safety and security in numerous public and private spaces.
