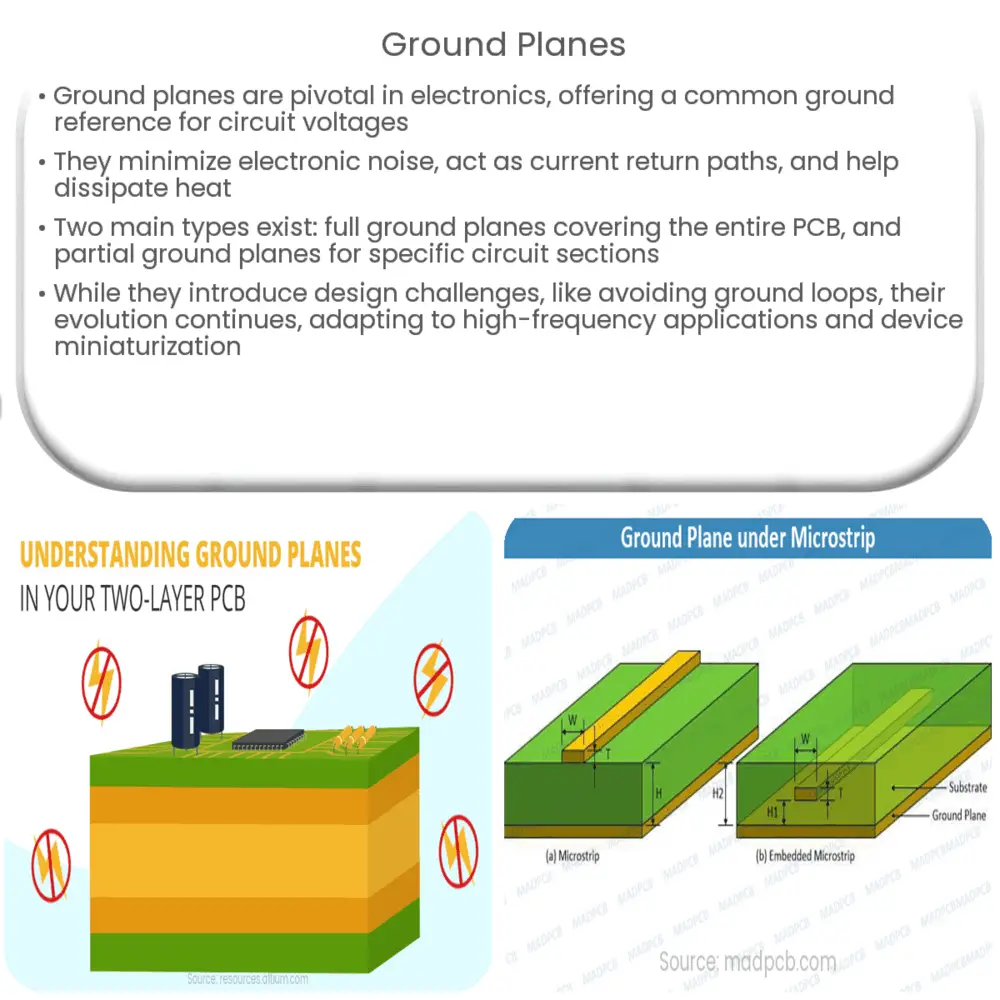

Understanding Ground Planes
A ground plane is an essential concept in the world of electronics and electrical engineering. It pertains to a large area of copper on a Printed Circuit Board (PCB) which is connected to the circuit’s ground point, typically denoted as ‘GND’ in circuit diagrams.
Importance of Ground Planes
The ground plane serves many crucial roles in the operation and effectiveness of a circuit. It provides a common reference point for the voltages in the circuit, ensuring that all components have a uniform ground potential. This helps to avoid potential differences within the circuit which might cause damaging currents.
Types of Ground Planes
There are two main types of ground planes used in PCB design:
- Full ground planes: These cover the entire PCB area. This type is often seen in multilayer PCB designs, where one layer is dedicated to the ground plane.
- Partial or split ground planes: These cover only part of the PCB, typically used when different sections of the circuit require separate ground references.
Ground Plane Applications
The application of ground planes is not limited to maintaining a common ground potential. They are also used in many other capacities such as:
- Minimizing electronic noise by creating a barrier against electromagnetic interference (EMI), leading to a more stable and reliable circuit operation.
- Acting as a return path for current, thereby reducing loop area and minimizing unwanted inductance.
- Assisting in heat dissipation from components, due to their large copper surface area.
Understanding the concept of ground planes is critical for anyone involved in designing or working with electronic circuits, whether amateur or professional. With a properly implemented ground plane, a circuit can operate more efficiently, reliably, and safely.
Challenges with Ground Planes
While ground planes bring significant benefits to a circuit, they also introduce certain challenges. These mainly involve:
- Proper design and placement of the ground plane to avoid ground loops, which can introduce noise into the circuit.
- Managing the interplay between the ground plane and signal traces, which can lead to crosstalk if not properly handled.
Ground Plane Design Considerations
The design and implementation of a ground plane in a PCB is not a simple task and requires careful consideration of various factors:
- Thickness: The thickness of a ground plane can impact its performance. A thicker ground plane can handle higher currents and offer better shielding against electromagnetic interference.
- Placement of components: Proper placement of components on the ground plane can minimize potential ground loops and help avoid crosstalk.
- Separation of digital and analog grounds: If a PCB includes both digital and analog components, it may be beneficial to separate the digital and analog ground planes to prevent noise from digital circuits from affecting analog signals.
Ground Planes in Antenna Design
Ground planes also play a vital role in the field of antenna design. In this context, a ground plane acts as a reflective surface for radio waves, increasing the effective radiating area of the antenna without the need for additional physical size. The characteristics of the ground plane, including its size, shape, and material, can have a significant impact on the antenna’s performance.
Future of Ground Plane Technology
As electronics continue to evolve, so too does the technology behind ground planes. The rise of high-frequency applications, the miniaturization of devices, and the need for more efficient power management are all driving innovations in ground plane technology. Future developments will likely include more effective shielding methods, improved thermal management solutions, and new materials to optimize performance.
Conclusion
In conclusion, ground planes are a fundamental component in electronic circuitry and antenna design. They serve multiple purposes, from providing a reference point for voltages, minimizing noise, acting as a return path for current, to assisting in heat dissipation. While ground plane design involves various challenges such as avoiding ground loops and managing crosstalk, careful consideration of these factors can lead to a more efficient and reliable circuit. As technology progresses, we can expect further advancements in ground plane design, enabling more effective and compact electronics that will continue to push the boundaries of what is possible.
