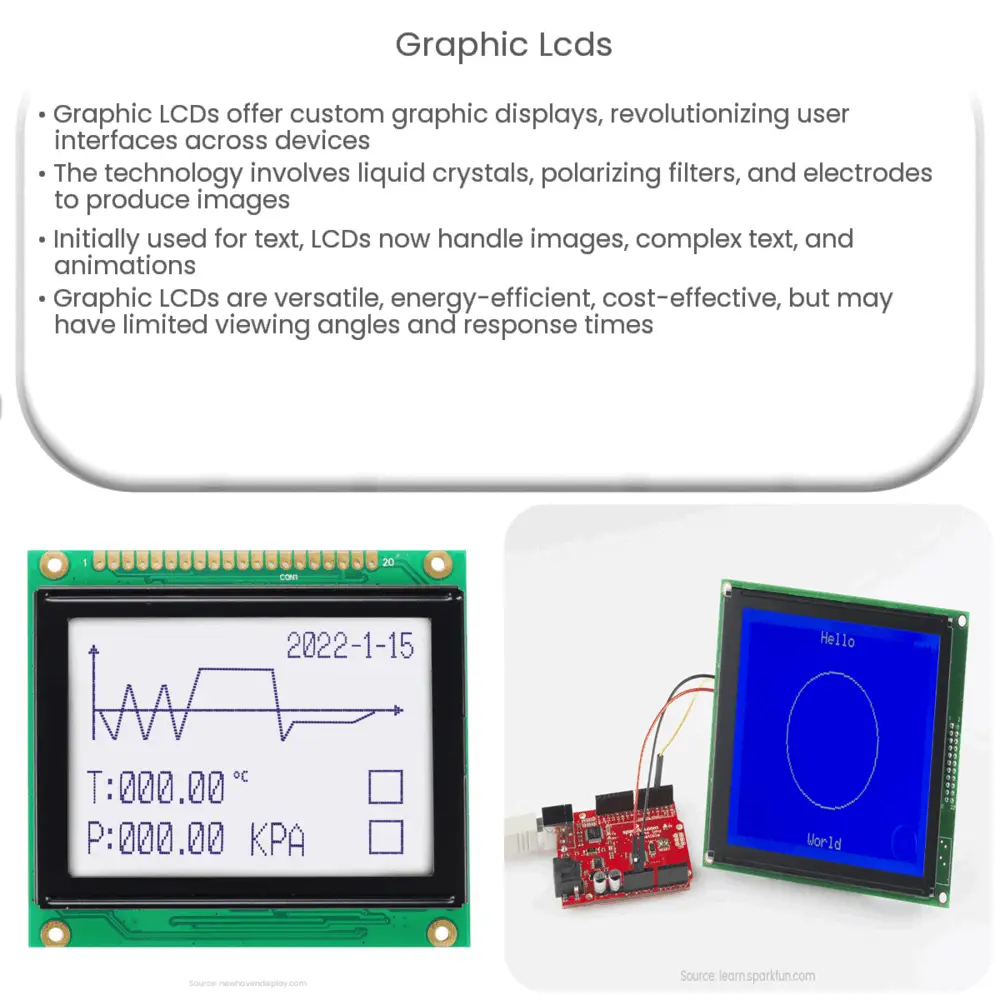

Understanding Graphic LCDs
Graphic Liquid Crystal Displays, often abbreviated as Graphic LCDs, are a type of display technology used in various electronic devices. They offer the ability to display custom graphics, making them versatile for a multitude of applications. With their ability to portray more sophisticated forms of data presentation, they have revolutionized user interfaces across various devices.
The Principle Behind LCDs
Before delving into Graphic LCDs, it is essential to understand the underlying technology. A Liquid Crystal Display (LCD) utilizes liquid crystals’ unique properties sandwiched between two polarizing filters and two transparent electrodes. Applying an electric field to the liquid crystals modifies their alignment, influencing the amount and orientation of light that can pass through. The interplay between this and the polarizing filters creates an image.
The Transition from Text to Graphics LCDs
- Text LCDs: Initially, LCDs were predominantly used for displaying text. These Text LCDs allowed for alphanumeric characters and, in some cases, a few custom characters. This form of LCD was common in early calculators, digital watches, and basic handheld devices.
- Graphic LCDs: As technology advanced, the need to display more complex information evolved. This brought about the emergence of Graphic LCDs. These displays are equipped with a grid of pixels that can be individually controlled. It allows for the presentation of images, diagrams, complex text, and even animations. Devices such as modern smartphones, tablets, and televisions commonly employ this form of LCD.
Components of a Graphic LCD
A Graphic LCD typically consists of the following core components:
- Pixel Matrix: This is the heart of any Graphic LCD, as it defines the resolution of the screen. Each point in the matrix corresponds to a pixel on the screen. A higher matrix density equates to higher resolution.
- Backlight: Most Graphic LCDs include a backlight to improve visibility in low-light conditions. This is often an LED or CCFL light source.
- Controller: The controller is a chip that interprets the input signal and translates it into an image on the screen. Modern Graphic LCDs often include an onboard controller to simplify integration.
Advantages and Limitations of Graphic LCDs
Graphic LCDs have many advantages that have contributed to their popularity in the electronics industry:
- Flexibility: The ability to display any graphical information provides immense flexibility in terms of content representation. This makes Graphic LCDs suitable for a wide range of applications.
- Low power consumption: Graphic LCDs are known for their energy efficiency, particularly when compared to other display technologies. This makes them an ideal choice for battery-powered devices.
- Cost-effective: Due to their wide adoption and simplified manufacturing process, Graphic LCDs are generally cost-effective and readily available.
However, like any technology, they also have their limitations:
- Viewing angle: Some Graphic LCDs may suffer from limited viewing angles.
- Response time: While the response time has improved significantly with recent technological advancements, some Graphic LCDs can exhibit slower response times compared to other display technologies.
Applications of Graphic LCDs
Given their versatility, Graphic LCDs find application in a multitude of areas. These include, but are not limited to:
- Consumer Electronics: Devices like smartphones, tablets, and televisions typically employ high-resolution Graphic LCDs for a rich visual experience.
- Industrial Control Interfaces: Graphic LCDs allow for detailed graphical user interfaces, making them ideal for industrial control panels.
- Medical Equipment: Many medical devices that require high-quality display for data representation and imaging use Graphic LCDs.
Conclusion
In conclusion, Graphic LCDs have revolutionized the display technology realm with their ability to present versatile, detailed, and complex graphical information. Despite their limitations, their numerous advantages and widespread applicability in various industries make them an integral part of the modern electronics landscape. With ongoing advancements in technology, Graphic LCDs are expected to continue evolving, providing even higher resolution, improved response times, and enhanced viewing experiences in the future.
