Understanding Fluxgate Magnetometers
A Fluxgate Magnetometer is an advanced type of magnetometer designed to measure the intensity and direction of magnetic fields. These devices have a wide range of applications, from geophysical surveys and space exploration to archaeology and unexploded ordnance (UXO) detection.
The Basic Principle

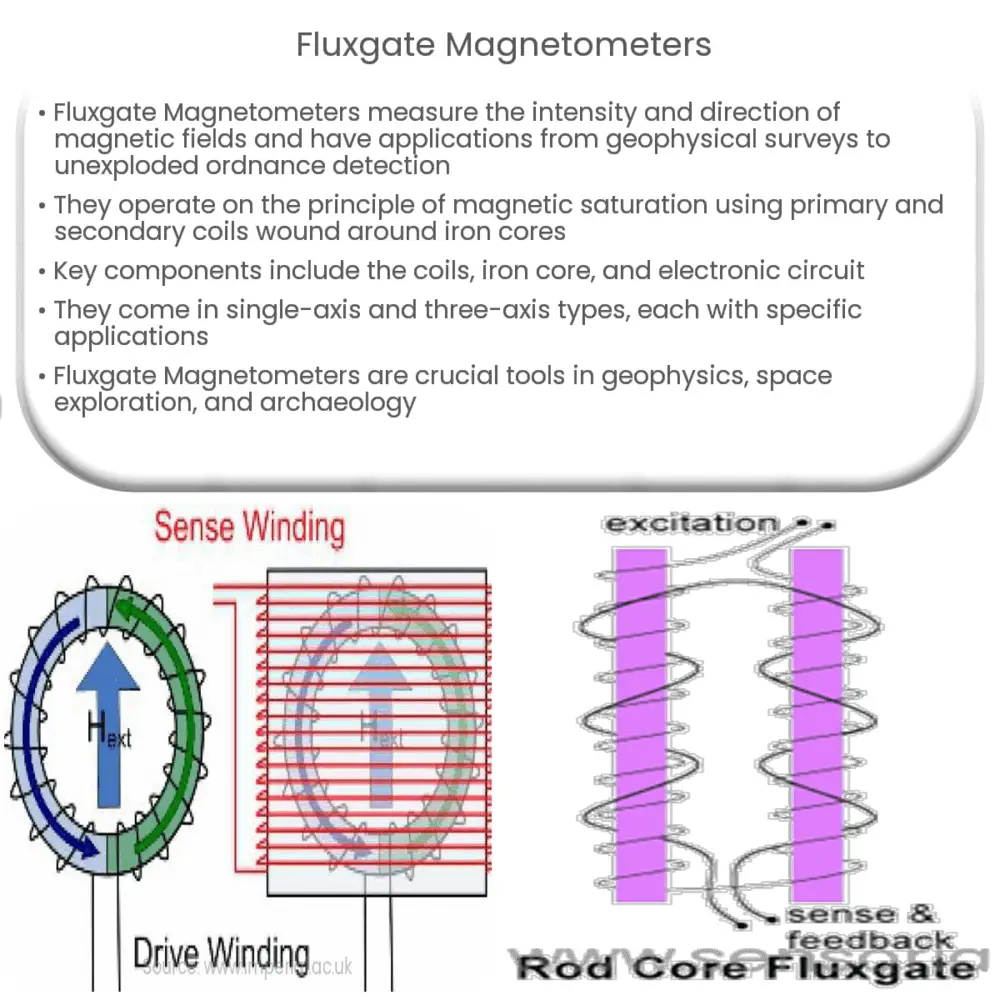

The Fluxgate Magnetometer operates based on the principle of magnetic saturation. It uses a pair of iron cores wound with primary and secondary coils. When an alternating current is passed through the primary coil, it drives the core through alternate cycles of magnetic saturation. This saturation, influenced by an external magnetic field, generates a secondary current proportional to the magnitude of the external field.
Key Components
-
Primary and Secondary Coils: The primary coil induces a magnetic field in the core, while the secondary coil detects the changes in this magnetic field. These two coils are typically wound on the same core.
-
Iron Core: The iron core is driven to magnetic saturation by the magnetic field induced by the primary coil. Its purpose is to amplify the magnetic field for detection by the secondary coil.
-
Electronic Circuit: The electronic circuit is used to drive the primary coil with an alternating current and to process the signal from the secondary coil. The circuit can also include components for noise reduction and signal enhancement.
Types of Fluxgate Magnetometers
-
Single Axis Fluxgate Magnetometers: These magnetometers can measure the magnetic field along a single axis. They are used when the direction of the magnetic field is known, and only its magnitude needs to be determined.
-
Three-Axis Fluxgate Magnetometers: These devices measure the magnetic field along three orthogonal axes. They provide complete information about the magnetic field’s direction and magnitude, making them ideal for applications where the field’s orientation is not known in advance.
Applications of Fluxgate Magnetometers
Due to their ability to detect subtle changes in magnetic fields, Fluxgate Magnetometers are utilized across various sectors. Here are some key applications:
-
Geophysical Surveys: Fluxgate Magnetometers are used in geophysical surveys to map variations in the Earth’s magnetic field, which can provide information about the geological structures below the surface.
-
Space Exploration: These devices help in studying the magnetic fields of other planets and celestial bodies. They are commonly used in satellites and space probes for this purpose.
-
Archaeology: Archaeologists use Fluxgate Magnetometers to detect buried archaeological features. Changes in the Earth’s magnetic field can indicate the presence of walls, ditches, or other buried structures.
-
Unexploded Ordnance Detection: Fluxgate Magnetometers can detect the magnetic fields of buried metallic objects, making them useful in finding unexploded ordnance.
Advantages and Limitations
Fluxgate Magnetometers have several advantages over other types of magnetometers. They are sensitive, capable of detecting very weak magnetic fields, and can measure both the direction and magnitude of a magnetic field. They are also relatively compact and lightweight, making them suitable for use in portable devices and on spacecraft.
However, there are also limitations to using Fluxgate Magnetometers. They can be influenced by temperature changes and may require regular calibration to ensure accurate measurements. In addition, while they can detect very weak magnetic fields, they may not be as sensitive as some other types of magnetometers, such as the Superconducting Quantum Interference Device (SQUID) magnetometer.
Conclusion
Fluxgate Magnetometers are an invaluable tool in numerous fields due to their sensitivity to magnetic fields and their versatility in applications. Their ability to measure both the magnitude and direction of magnetic fields allows them to provide detailed information about the magnetic environment. Despite some limitations, the Fluxgate Magnetometer remains a key instrument in geophysics, space exploration, archaeology, and other areas. As technology continues to evolve, it’s likely that these devices will become even more precise and reliable in the future.
