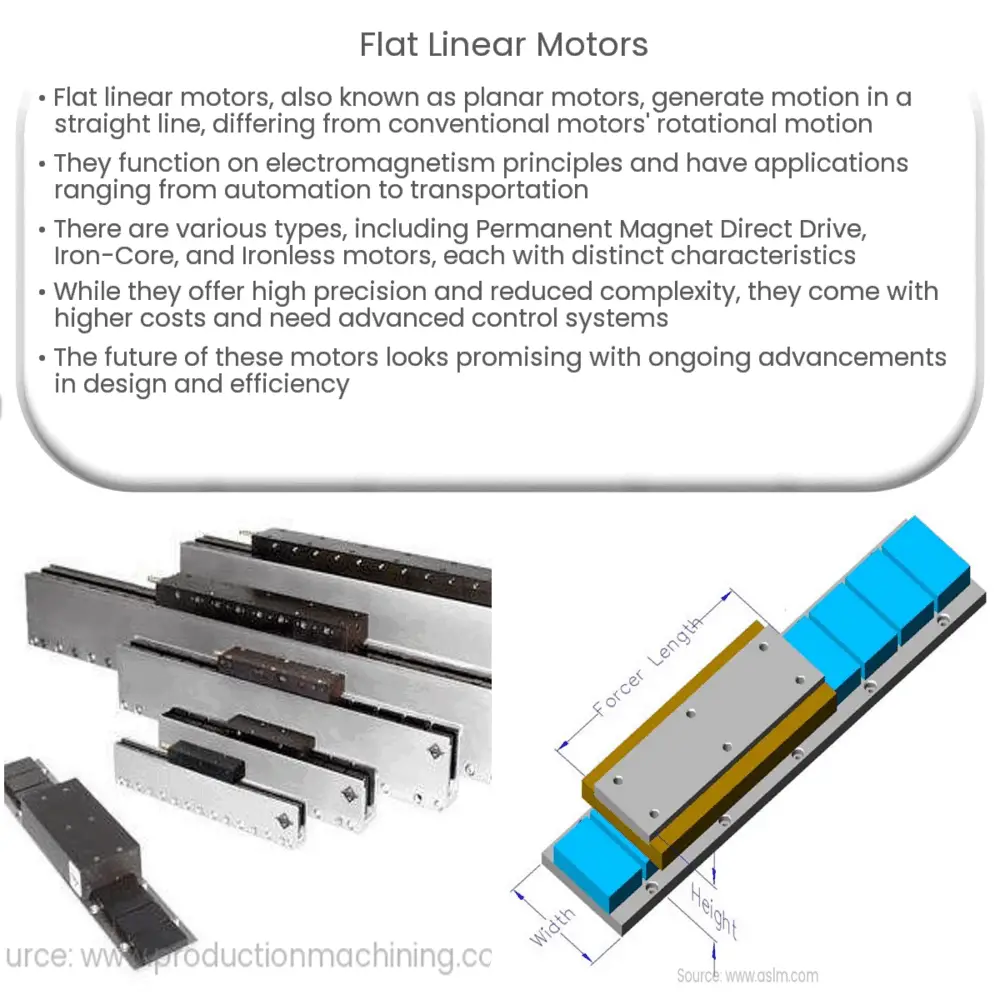

Introduction to Flat Linear Motors
A Flat Linear Motor, also known as a planar motor, is a specialized type of electric motor designed to produce motion in a straight line, as opposed to the rotational motion of a conventional motor. Flat linear motors have a broad spectrum of applications, extending from robotics and automation to transportation and beyond.
Structure and Principle of Operation
The fundamental operation of a flat linear motor depends on the principles of electromagnetism. These motors have a uniquely flat design, which comprises two main parts: a ‘primary part’ (the coil unit or windings) and a ‘secondary part’ (magnets or magnetic tracks). The primary part, powered by a controller, generates a moving electromagnetic field that interacts with the magnetic field of the secondary part, producing a force that drives linear motion.
Types of Flat Linear Motors
- Permanent Magnet Direct Drive (PMDD): PMDD motors utilize permanent magnets to generate the necessary magnetic field. Their direct drive nature eliminates the need for any additional mechanical transmission elements, resulting in a high degree of precision and dynamic response.
- Iron-Core Linear Motors: As the name suggests, these motors have an iron core, which significantly increases the magnetic flux, resulting in a high force density. However, this type also experiences increased cogging effects due to the iron core.
- Ironless Linear Motors: In these motors, the primary part is entirely devoid of iron. This design reduces cogging and increases smoothness of operation, albeit with a lower force output compared to iron-core motors.
Applications of Flat Linear Motors
- Automation and Robotics: Flat linear motors, with their precision control and dynamic response, are an excellent choice for high-speed automation systems and robotics. They can be found in various industrial sectors like manufacturing, assembly, and packaging.
- Transportation: From maglev trains to automated warehouse vehicles, flat linear motors play a crucial role in propelling the modern transportation industry.
Advantages and Disadvantages
Flat Linear Motors offer many benefits over traditional rotational motors, including higher precision, reduced mechanical complexity, and improved efficiency. However, they also have certain drawbacks, such as higher cost, and the need for sophisticated control systems. The selection of these motors is highly dependent on the specific application requirements.
Factors Influencing Flat Linear Motor Selection
Selecting a suitable flat linear motor for a specific application can be quite a task. Factors to consider include the required force, speed, precision, and even the operating environment. For instance, iron-core linear motors are ideal for high-force applications, while ironless motors may be a better choice for precision-based tasks. Furthermore, the motor’s heat dissipation, energy consumption, and life expectancy are also crucial considerations.
Emerging Trends and Future Developments
The realm of flat linear motors is continually evolving, with exciting advancements being made regularly. 1 Miniaturization, for instance, is a significant trend, leading to compact, highly efficient motors for intricate tasks. Similarly, flat linear motors designed for extreme environments are also being developed. Moreover, as our understanding of magnetic materials and control systems continues to expand, we can expect even more sophisticated and efficient designs in the future.
Regulatory and Environmental Considerations
Like any technology, flat linear motors have their environmental impacts and regulatory standards. As electric motors, they must adhere to regulations concerning electromagnetic compatibility and electrical safety. On the environmental front, efficient energy use and proper disposal of used motors are growing concerns, stimulating the development of greener, more sustainable models.
Conclusion
In conclusion, flat linear motors have transformed our ability to manipulate movement in a wide array of fields, from manufacturing and automation to high-speed transportation systems. Their unique design offers significant advantages over traditional rotational motors, including improved precision and dynamic response. However, despite their benefits, they also come with challenges such as higher cost and the need for sophisticated control systems. As technology advances, the future promises even more refined, efficient, and sustainable flat linear motor designs, further pushing the boundaries of what’s possible.
