# Cockcroft-Walton Multipliers

Explore the history, principles, applications, and limitations of the Cockcroft-Walton multiplier, a pivotal high-voltage circuit design.

## Introduction to Cockcroft-Walton Multipliers

The Cockcroft-Walton (CW) multiplier, named after the physicists John Douglas Cockcroft and Ernest Thomas Sinton Walton, is a type of voltage multiplier circuit. It was invented in the early 20th century and has since become a fundamental part of many high-voltage systems and devices.

## The Basic Concept

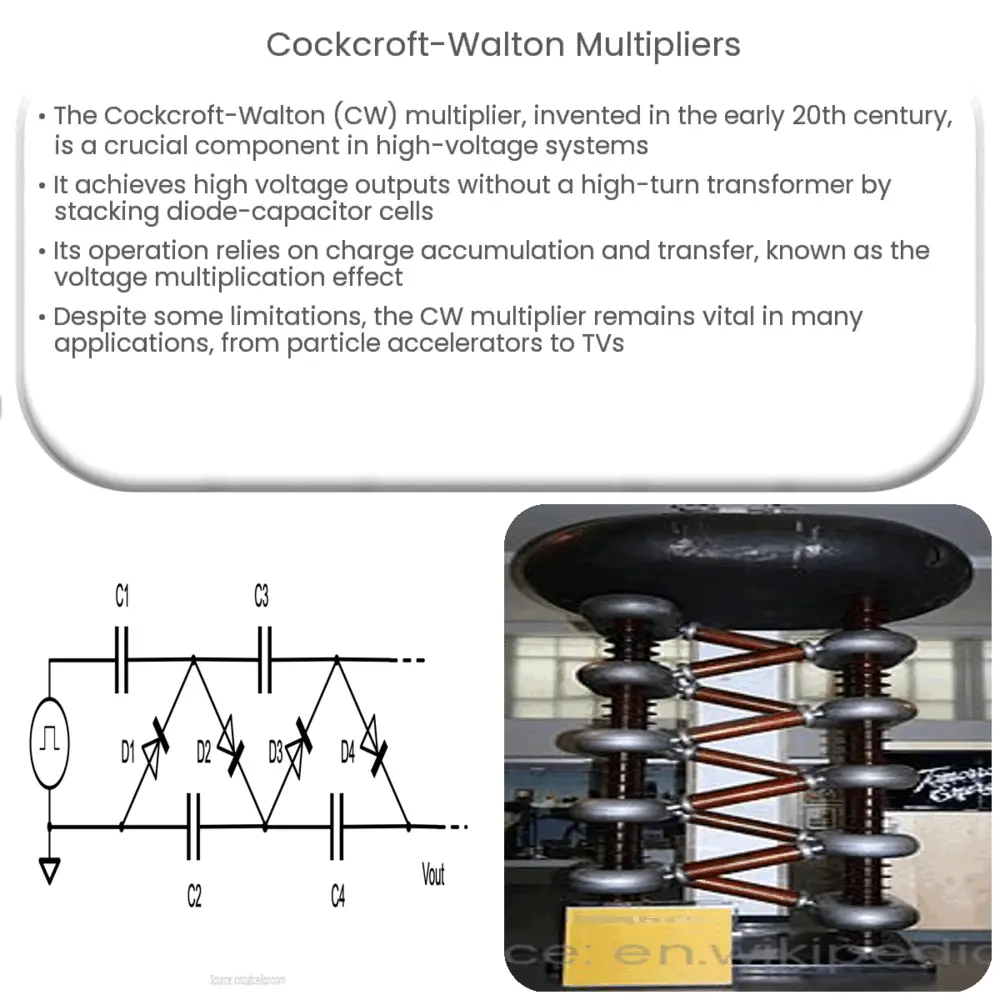

At its core, a Cockcroft-Walton multiplier is designed to achieve high voltage power supplies without the need for a transformer with a high turn ratio. It does this by stacking the output of diode-capacitor cells, also known as “Greinacher cells”, in a ladder-like configuration. The end result is a circuit capable of outputting a significantly higher voltage than the input.

## Functioning of CW Multiplier

The functioning of a CW multiplier is primarily based on the principle of charge accumulation and transfer through diodes and capacitors. When an AC input is provided, each diode-capacitor cell gets charged during one half of the cycle and then discharged into the next cell during the other half. This process is repeated across the entire ladder of cells, each adding to the output voltage. This is known as the voltage multiplication effect.

• Step 1: The AC input charges the first capacitor through the first diode.
• Step 2: In the next half cycle, the first diode is reverse-biased, and the second diode becomes forward biased. The second capacitor now gets charged to the sum of the first capacitor voltage and the input voltage.
• Step 3: This process continues down the ladder, each time increasing the voltage by the input voltage.

## Applications of CW Multipliers

The Cockcroft-Walton multiplier has been used in a myriad of applications. These range from use in high-energy physics laboratories for particle accelerators, as a power supply for cathode ray tubes, to their application in X-ray machines and even in some types of television sets.

One of the most notable uses of the Cockcroft-Walton multiplier was in the first successful experiment to split the atom in 1932. Cockcroft and Walton used a CW multiplier to generate the high voltages necessary to accelerate protons towards a lithium target, resulting in the first man-made nuclear disintegration.

The CW multiplier has several advantages, including simplicity of design, reliability, and its ability to produce very high voltages. However, it also has some limitations such as low current capabilities and a ripple in the output voltage. Understanding these factors is key when considering a CW multiplier for a specific application.

## Understanding CW Multiplier Limitations

The CW multiplier’s limitations often stem from its own design principles. Primarily, the ripple present in the output voltage can be significant, especially at higher output voltages. This ripple is due to the repeated charging and discharging of capacitors at different stages. While this can be mitigated somewhat by the use of more stages and smoothing circuits, it is a characteristic inherent to the design.

Additionally, while the CW multiplier can achieve very high voltages, it tends to provide relatively low current outputs. This is a result of each diode and capacitor cell in the multiplier chain adding to the total output impedance of the circuit.

## Modern Usage and Variations

Over the years, various modifications have been made to the original CW multiplier design to improve its performance and extend its applications. One such variant is the full-wave version, which uses a full-wave rectifier to drive the multiplier stages, effectively doubling the multiplication factor for a given number of stages.

Modern applications of the CW multiplier have expanded beyond just high voltage power supplies. Today, they are found in a variety of electronic devices including photomultiplier tubes, image intensifiers, electrostatic systems, and even in some models of electric cars for DC voltage doubling.

## Conclusion

The Cockcroft-Walton multiplier has made significant contributions to the world of physics and electronics. Despite its age, it remains a practical and reliable method for generating high voltage. Even as technologies evolve, the principles of the CW multiplier remain highly relevant, and the basic concept continues to be used in new and innovative ways.

While not without its limitations, the CW multiplier’s advantages often outweigh its disadvantages, making it an invaluable tool in many applications. It is a testament to the ingenuity of its inventors and serves as an enduring reminder of the importance of fundamental circuit design principles in technological advancements.

As our understanding of electronics continues to grow, the Cockcroft-Walton multiplier will likely continue to play a key role in our ability to generate and manipulate high voltages, furthering scientific research and development across a myriad of fields.
