Introduction to Capacitive Wireless Charging Systems
Wireless charging has become an integral part of our technologically advanced world. Of the different types, capacitive wireless charging systems have emerged as an innovative solution that offers benefits in convenience, efficiency, and safety. Capacitive charging, also known as electric field or electrostatic charging, is a technology that transfers energy from a power source to an electronic device without the need for wires.
How Capacitive Wireless Charging Works

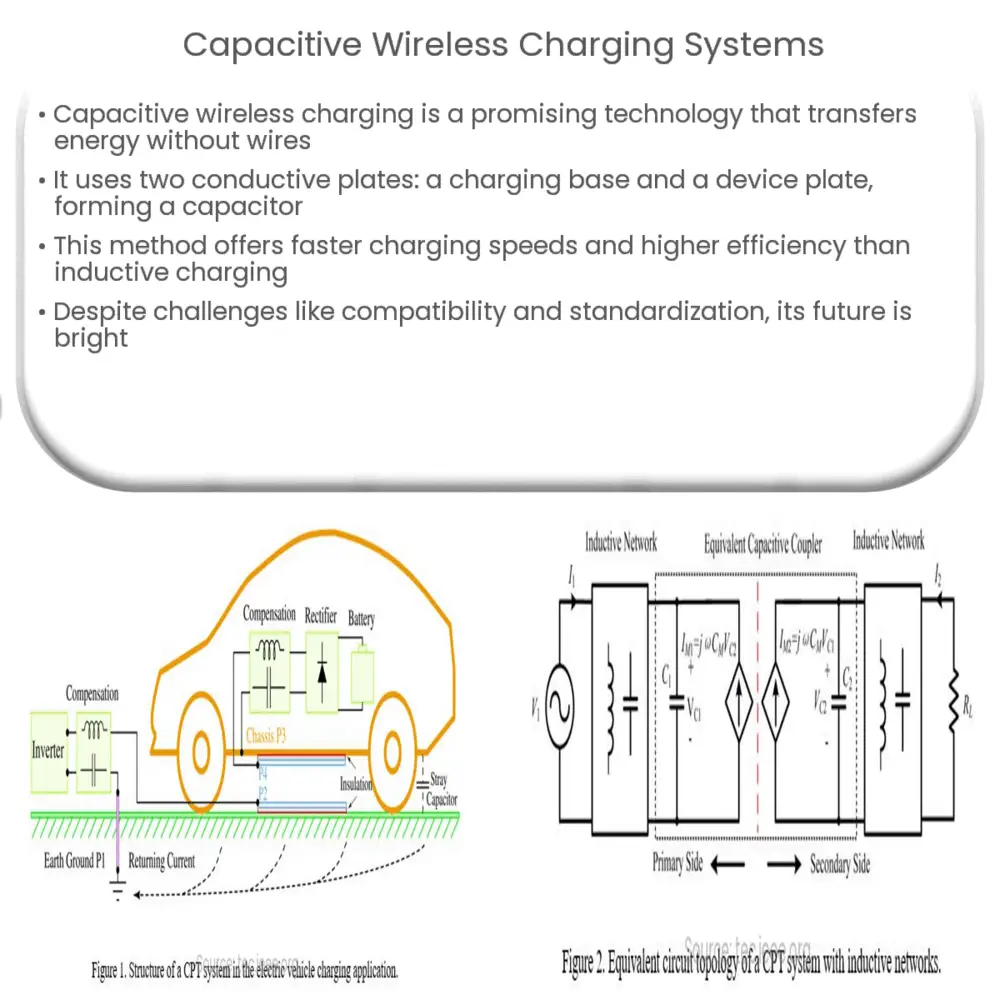

Capacitive wireless charging utilizes two conductive plates – one on the charging base (or charger) and one on the device that needs charging. These plates form a capacitor, a basic electrical component that stores energy. When the charging base is connected to a power source, an alternating electric field is generated. The device, when placed in proximity to the base, harnesses this electric field to convert it back into electric current, thereby charging the device.
- Charging Base: The charging base or pad contains a conductive plate connected to an AC (Alternating Current) power source. The base generates an oscillating electric field that is ready to transfer energy.
- Receiving Device: The device that needs to be charged has a complementary conductive plate. It picks up the electric field and, via an embedded circuit, converts it into DC (Direct Current) to charge the device’s battery.
Advantages of Capacitive Wireless Charging
Capacitive wireless charging systems offer several unique advantages over traditional wired and other wireless charging methods:
- Efficiency and Speed: Capacitive charging allows for faster charging speeds and higher efficiency compared to inductive wireless charging. The power transfer can occur over a larger distance without significant energy loss.
- Safety: By eliminating the need for physical connectors and wires, capacitive charging reduces the risk of electrical shocks and short circuits. Furthermore, it’s less prone to damage from wear and tear, improving the overall lifespan of the charging system.
Despite these advantages, capacitive charging is not yet as widespread as inductive charging. Several challenges such as compatibility issues, standardization, and costs need to be overcome for it to become mainstream.
Overcoming the Challenges of Capacitive Charging
The main challenge in the wide-scale implementation of capacitive wireless charging systems lies in compatibility. The technology requires devices to have a specific capacitive charging circuit built-in, limiting its usability to only devices designed for capacitive charging.
Another challenge is the lack of standardization. The absence of universally agreed standards for capacitive wireless charging could lead to a plethora of disparate devices and charging bases, impeding interoperability.
The costs associated with implementing capacitive wireless charging are also higher compared to traditional methods, as it requires complex circuit designs and high-quality materials. This might increase the price of consumer devices equipped with capacitive charging capabilities, potentially limiting adoption.
Future of Capacitive Wireless Charging
Despite these challenges, the potential for capacitive charging in the future is bright. The technology’s benefits such as enhanced safety, higher efficiency, and faster charging speeds make it a promising avenue for further research and development.
As the technology matures, we can expect standardization efforts to intensify, leading to improved compatibility among devices. As more manufacturers adopt this technology, economies of scale are likely to bring down the costs of implementation, making it a viable option for a wider range of electronic devices.
Conclusion
In conclusion, capacitive wireless charging systems represent an innovative leap in the realm of power transfer technologies. Despite facing challenges such as compatibility, standardization, and cost, the technology’s unique advantages make it a promising candidate for future advancements. As technological progress continues, capacitive charging may soon become a common feature in the devices that enrich our daily lives, providing us with a more efficient and convenient way to keep our devices powered up and ready to go.
