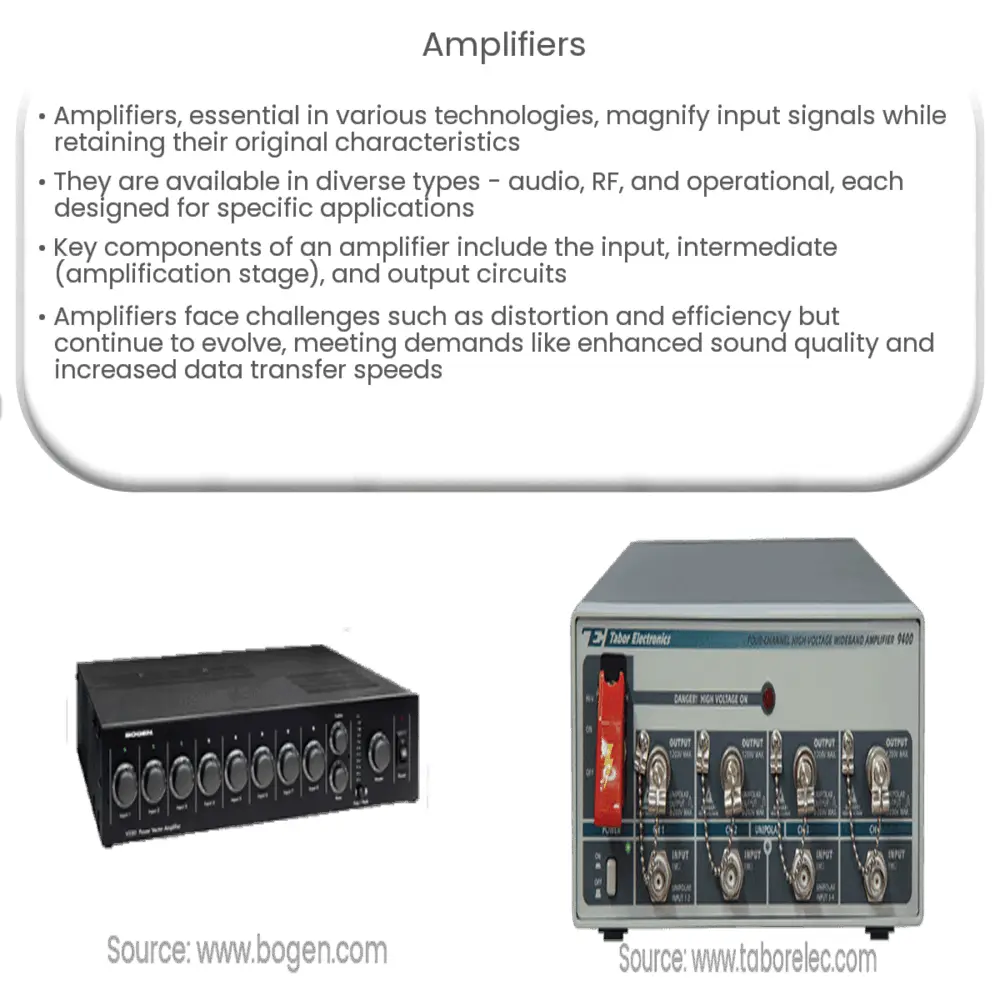

Introduction to Amplifiers
An amplifier, a fundamental piece of modern technology, finds a place in various applications from audio systems to telecommunication devices, not excluding a broad range of scientific and industrial tools. An amplifier magnifies an input signal, usually utilizing the power from a power supply, to a greater output signal. This is achieved while maintaining the original characteristics of the signal.
The Essential Operation of Amplifiers
At its core, an amplifier works on a relatively simple principle. It takes an input signal, processes it, and outputs a magnified version of the signal. The degree of amplification, often expressed in Decibels (dB), is a measure of how much the input signal has been increased. This degree is known as gain.
Types of Amplifiers
- Audio Amplifiers: These are the most common types of amplifiers most people are familiar with. They are designed to amplify signals within the human audible frequency range (20 Hz to 20 kHz). They are used in audio systems to drive speakers, and in musical instrument amplification.
- Radio Frequency (RF) Amplifiers: RF Amplifiers are designed to amplify the frequency of radio signals (ranging from 3 kHz to 300 GHz). They play an essential role in wireless communication devices.
- Operational Amplifiers (Op-amps): Op-amps are high-gain electronic voltage amplifiers with a differential input and, usually, a single-ended output. They are used in many electronic devices, performing a wide range of analog functions.
Key Components
An amplifier comprises three primary sections: the input circuit, the intermediate stage, and the output circuit. The input circuit receives the incoming signal. The intermediate stage, where the actual amplification happens, consists of electronic components, such as transistors and capacitors, which amplify the signal. The output circuit, finally, delivers the amplified signal to the connected device.
Amplifier Classes
Amplifiers are also classified based on their operational method. This includes Class A, B, AB, and D amplifiers. These classes define the method of operation, performance, and efficiency of the amplifier, with each having its unique characteristics and specific applications.
Real-world Applications
Amplifiers have numerous real-world applications. In telecommunication, for instance, amplifiers are used to boost the strength of the signal over long distances. In audio applications, they are used to increase sound volume, such as in stereo systems, public address systems, and TV and radio transmission systems. In medical applications, they are used to amplify bio-electrical signals for diagnostic purposes.
Challenges and Considerations
While amplifiers offer invaluable benefits in a multitude of applications, they aren’t without their challenges. Some of the primary considerations when dealing with amplifiers are distortion, efficiency, and bandwidth. Distortion refers to any alteration of the original signal other than amplification, and is usually undesirable. Efficiency measures how much of the power supply’s energy is converted into useful output. Bandwidth, on the other hand, describes the range of frequencies an amplifier can handle effectively.
Future Trends
As with most technologies, amplifiers continue to evolve and adapt to the changing needs of various industries. In the audio industry, for instance, the trend is moving towards smaller, more efficient digital amplifiers that offer superior sound quality. In telecommunications, the push for greater data transfer speeds has led to the development of amplifiers capable of handling higher frequencies with low distortion levels.
Conclusion
In summary, amplifiers play a vital role in our daily lives, often unnoticed. They facilitate our communication, entertain us, and even aid in critical medical diagnostics. With their wide variety of types and classes, amplifiers offer diverse functionality, making them indispensable in many applications. As technology advances, we can expect to see even more innovative uses and improvements in amplifier technology, enhancing their efficiency, reducing distortion, and possibly expanding their reach to more groundbreaking applications.
Understanding the role of amplifiers, their functioning, and the factors that affect their performance, helps us appreciate the sophisticated technology behind many of our everyday devices. Amplifiers remain a testament to human innovation, continually evolving to meet the demands of a rapidly progressing world.
